20464 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HOUSING ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

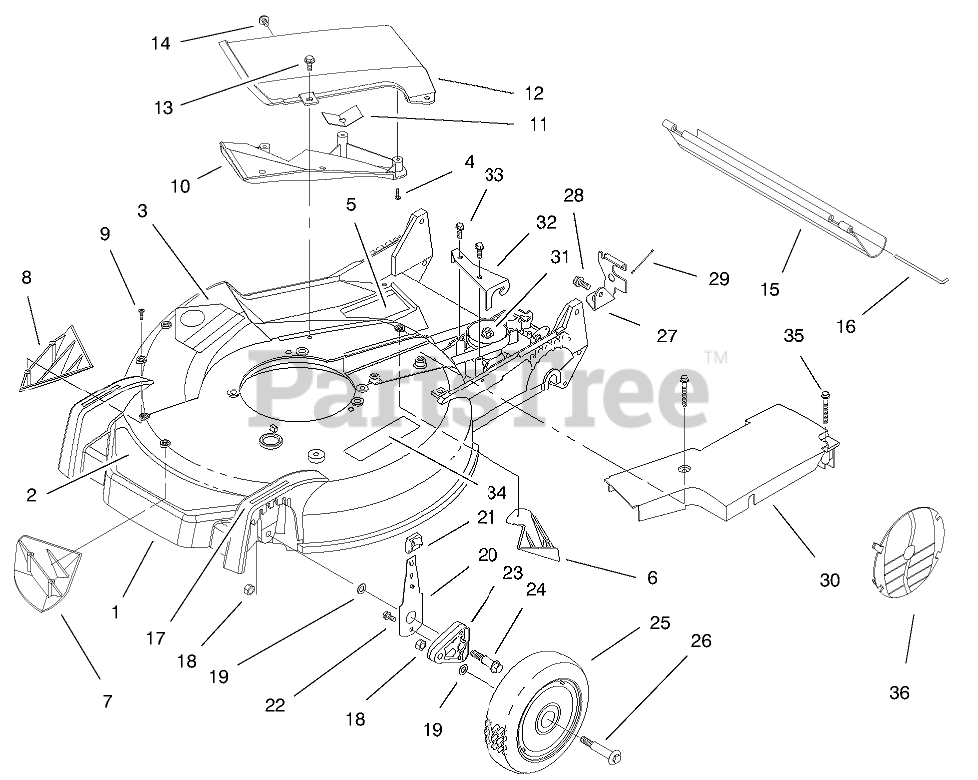

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 16-9489

Housing-21" (Incl. Ref. #3, 5-9 pg. 1, 34 pg. 2)
(Superseded to 105-1307)
Usually ships in 5 to 8 days

$

$276.77

0

2

Toro Part# 93-3696

DECAL - DECK
Usually ships same day

Not available

$

$

3

Toro Part# 39-5770

DECAL-DANGER
Usually ships in 1 day

$

$6.35

0

4

Part#

Screw-PPH
Usually ships same day

Not available

$

$

5

Toro Part# 82-8450

DECAL - DANGER
Usually ships in 5 to 8 days

$

$5.39

0

6

Toro Part# 92-1750

KICKER-REAR
Usually ships in 1 day

$

$15.38

0

7

Toro Part# 92-1720

KICKER-FRONT
Usually ships in 1 day

$

$15.88

0

8

Toro Part# 92-1730

KICKER-RH
Usually ships in 1 day

$

$15.88

0

9
Usually ships in 1 day

$

$0.82

0

10

Part#

Deflector-Recycler
Usually ships same day

Not available

$

$

11

Part#

Guard-Cover
Usually ships same day

Not available

$

$

12

Toro Part# 17-5179

Cover-Recycler (Incl. Ref. #4, 10, & 11)
Usually ships same day

Not available

$

$

13

Toro Part# 46-6811

SCREW-HWH
Usually ships in 1 day

$

$2.23

0

14

Toro Part# 46-6810

SCREW AND WASHER ASM
Usually ships in 1 day

$

$3.08

0

15

Toro Part# 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)
Usually ships in 1 day

$

$22.74

0

16

Toro Part# 33-3208

ROD-SHIELD
Usually ships in 1 day

$

$11.72

0

17

Toro Part# 92-2279

DECAL - HOC
Usually ships same day

Not available

$

$

18
Usually ships in 1 day

$

$1.44

0

19
Usually ships in 1 day

$

$1.38

0

20

Toro Part# 66-0541

FRONT SPRING ARM ASM
Usually ships in 5 to 8 days

$

$12.77

0

21
Usually ships in 1 day

$

$4.46

0

22
Usually ships in 1 day

$

$1.11

0

23

Toro Part# 66-0580-03

ARM-PIVOT, FRONT
(Superseded to 66-0580)
Usually ships in 1 day

$

$14.52

0

24

Toro Part# 66-0560

BOLT-SHOULDER
Usually ships in 1 day

$

$3.34

0

25

Toro Part# 14-9989

WHEEL AND TIRE ASM
Usually ships in 1 day

$

$32.41

0

26

Toro Part# 27-6232

BOLT-WHEEL
(Superseded to 114-3468)
Usually ships in 1 day

$

$3.91

0

27

Toro Part# 82-5680

Bracket-Adj. Trac
(Superseded to 82-5680-03)
Usually ships in 5 to 8 days

$

$9.64

0

28

Toro Part# 32144-70

SCREW-HWHTF
Usually ships in 1 day

$

$1.81

0

29

Toro Part# 46-7030

RETAINER-CABLE
Usually ships in 1 day

$

$4.75

0

30

Toro Part# 82-9910

BELT COVER
Usually ships same day

Not available

$

$

31

Toro Part# 62-6673

GEARCASE ASM
Usually ships in 5 to 8 days

$

$614.95

0

32

Toro Part# 62-4320

Bracket-Guide
(Superseded to 62-4320-03)
Usually ships in 5 to 8 days

$

$21.77

0

33

Toro Part# 49-2040

SCREW-HWHTF
Usually ships in 1 day

$

$1.67

0

34

Toro Part# 93-0248

DECAL-WARNING
(Superseded to 104-8589)
Usually ships in 1 day

$

$4.67

0

35

Toro Part# 37-7260

SCREW-HHFTF
Usually ships in 1 day

$

$4.52

0

36

Toro Part# 91-2253

WHEEL COVER
(Superseded to 100-6351)
Usually ships in 5 to 8 days

$

$16.13

0
