20465 - Toro Super Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) Engine Gts 150 (model No. 20465 Only) 5 Parts Diagram

Super Recycler Walk-Behind Mower

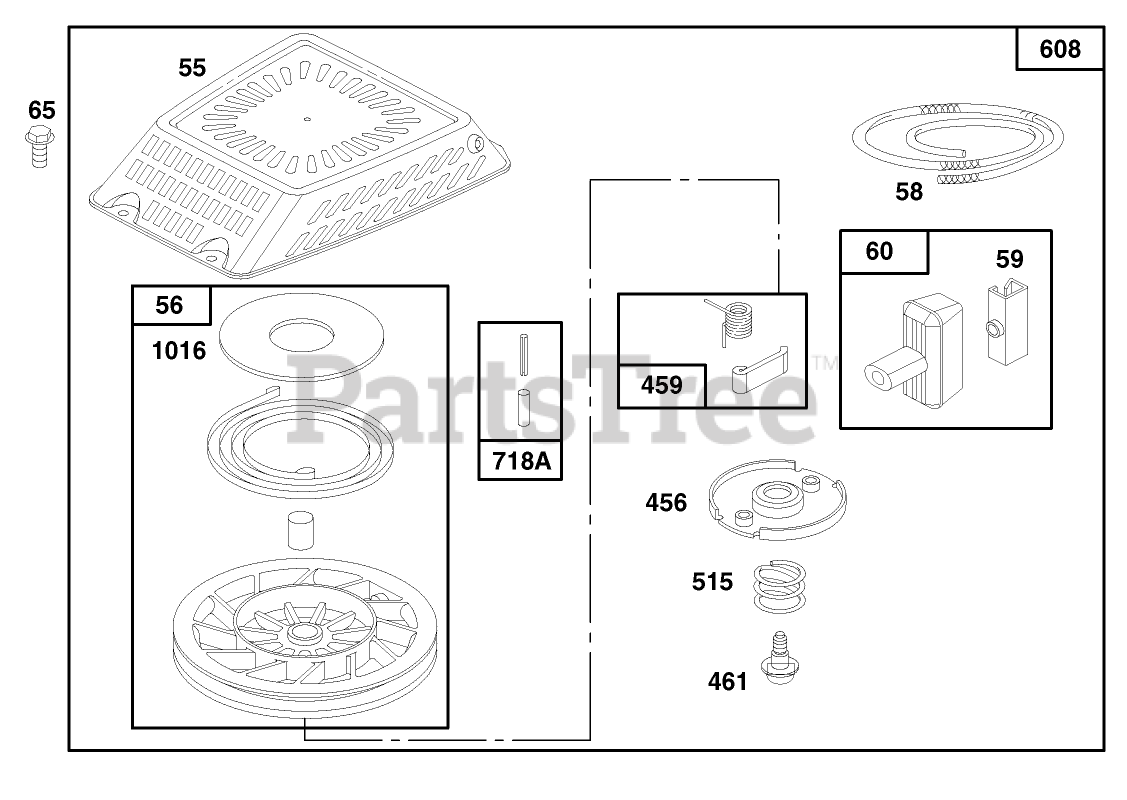

Engine Gts 150 (model No. 20465 Only) 5 Parts Diagram

  • Title

55

Toro 77-8460

See Supercession: 94-1678
(Superseded to 94-1678)

$

$

Not available

56

Toro 77-9270

DISCONTINUED

$

$

Not available

58

Toro 77-8480

DISCONTINUED

$

$

Not available

59

Toro 77-7210

INSERT-HANDLE, REWIND

$

$

Not available

60

Toro 77-8510

See Supercession: 77-8520
(Superseded to 77-8520)

$

$

Not available

65

Toro 77-8300

DISCONTINUED

$

$

Not available

456

Toro 77-8470

RETAINER - SPRING

$

$

Not available

459

Toro 77-8530

DISCONTINUED

$

$

Not available

461

Toro 77-8490

DISCONTINUED

$

$

Not available

515

Toro 77-8500

SPRING - RETAINER

$17.99

$

In Stock, only 1 left!

0

608

Toro 77-8450

See Supercession: 94-1678
(Superseded to 94-1678)

Note: Model No. 20465-6900001 Up may have been assembled with Starter Ass-y No. 77-8450 or 94-1678. Part identification will be required for service part replacement.

$

$

Not available

718A

Toro 77-8550

DISCONTINUED

$

$

Not available

1016

Toro 77-8570

DISCONTINUED

$

$

Not available
