20465 - Toro Super Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) REAR AXLE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

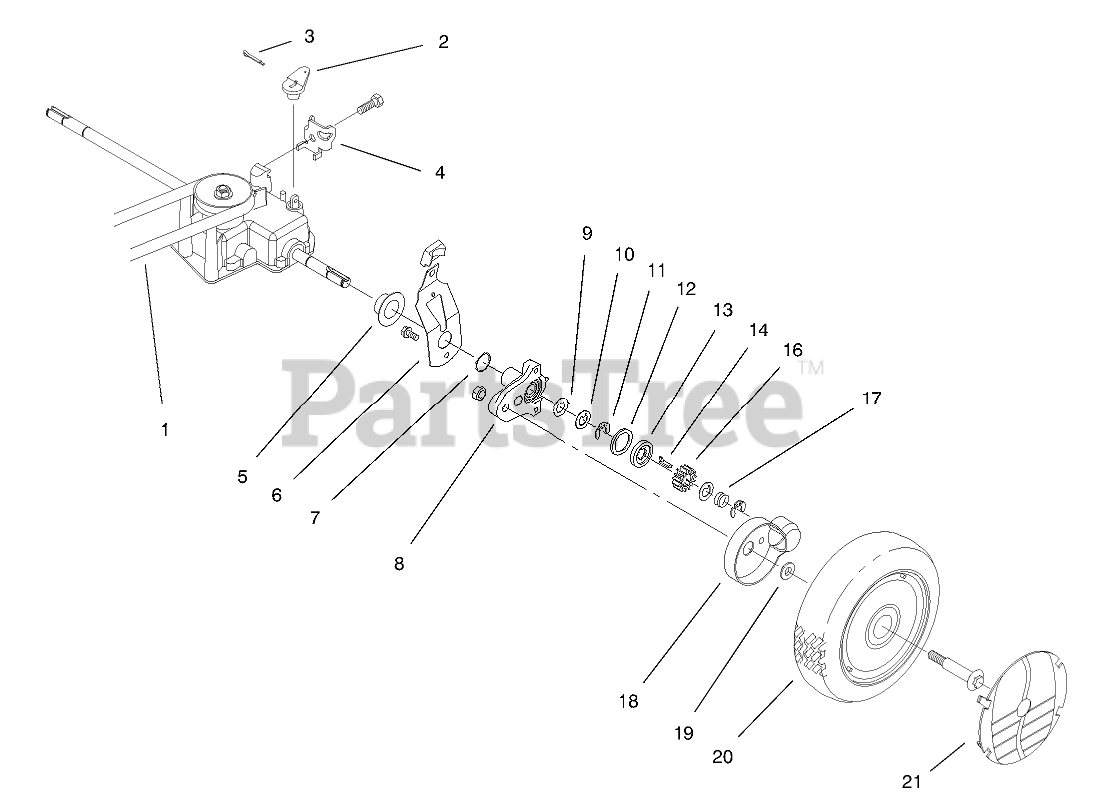

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 62-3900

V-BELT E

$23.99

$

In Stock, Qty 5

0

2

Toro 60-8821

LEVER-SHIFT

$12.99

$

Usually ships in 3-6 days

0

3

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

4

Toro 82-8780

CLAMP-CABLE

$15.99

$

Usually ships in 3-6 days

0

5

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, Qty 20+

0

6

Toro 63-8721

SPRING ARM ASM

$20.99

$

In Stock, Qty 10

0

7

Toro 237-153

O-RING

$4.49

$

Usually ships in 3-6 days

0

8

Toro 63-8701

PIVOT ARM ASM

$47.99

$

In Stock, Qty 5

0

9

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 20+

0

10

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 20+

0

11

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

12

Toro 65-4710

RING-FRICTION

$3.49

$

In Stock, Qty 20+

0

13

Toro 65-4760

WASHER-CLUTCH

$1.99

$

In Stock, Qty 20+

0

14

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.99

$

In Stock, Qty 20+

0

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

Note: Not illustrated

$7.99

$

In Stock, Qty 20+

0

16

Toro 65-4750

GEAR-PINION

$12.99

$

In Stock, Qty 20+

0

17

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

18

Toro 74-1660

COVER-WHEEL

$8.99

$

In Stock, Qty 20+

0

19

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 20+

0

20

Toro 16-0029

WHEEL AND TIRE ASM (W/GEAR)

$44.99

$

In Stock, Qty 12

0

21

Toro 91-2253

WHEEL COVER
(Superseded to 100-6351)

$23.99

$

Usually ships in 3-6 days

0
