20465x8B - Scotts 20" Walk-Behind Mower (1999) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

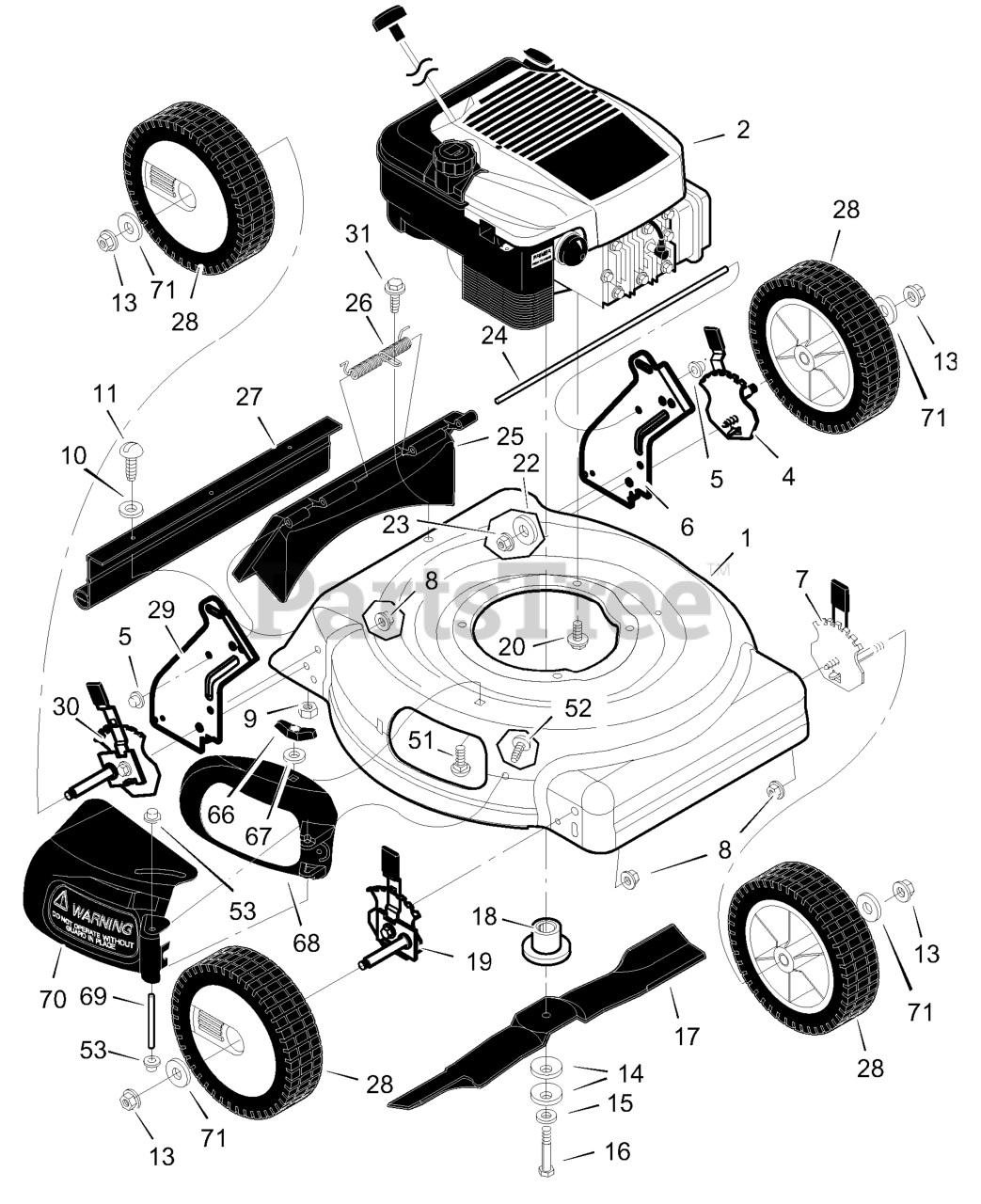

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 776151

Housing

$

$

Currently unavailable

2

Engine

$

$

Not available

4

Murray 672605MA

Adjuster, Left Rear Height

$23.99

$

Usually ships in 2-12 days

0

5

Murray 028X49MA

Nut, Push

$3.99

$

In Stock, Qty 13

0

6

Murray 672889E700

Bracket, Left Handle

$7.99

$

Usually ships in 2-12 days

0

7

Murray 672601MA

Adjuster, Left Front Height

$87.99

$

Usually ships in 2-12 days

0

8

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 15X102MA

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

10

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

11

Murray 004X21MA

Screw

$3.99

$

Usually ships in 2-12 days

0

13

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

16

Murray 01X153MA

Bolt

$4.49

$

Usually ships in 2-12 days

0

17

Murray 672763E701MA

Blade

$26.99

$

In Stock, only 4 left!

0

18

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

19

Murray 672600MA

Adjuster, Right Front Height

$82.99

$

In Stock, only 1 left!

0

20

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

22

Murray 17X146MA

Washer

$5.49

$

Usually ships in 2-12 days

0

23

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

24

Murray 215X17 Z

Rod, Pivot

$

$

Currently unavailable

25

Murray 672611

Door, Rear (Black)

$95.99

$

Usually ships in 2-12 days

0

26

Murray 166X44MA

Spring

$14.99

$

In Stock, only 3 left!

0

27

Murray 671970MA

Guard, Rear

$13.99

$

Usually ships in 2-12 days

0

28

Murray 672060MA

Wheel & Tire
(Superseded to 336545MA)

$33.99

$

In Stock, only 1 left!

0

29

Murray 672888E700

Bracket, Right Handle

$8.99

$

Usually ships in 2-12 days

0

30

Murray 672604MA

Adjuster, Right Rear Height

$24.99

$

Usually ships in 2-12 days

0

31

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

51

Murray 002X16MA

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

52

Murray 26X221MA

Screw

$3.49

$

Usually ships in 2-12 days

0

53

Murray 028X42MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

66

Murray 071495MA

Wingnut

$4.99

$

In Stock, only 3 left!

0

67

Murray 017X45 Z

Washer

$

$

Currently unavailable

68

Murray 671926

Bezel (Black)

$

$

Not available

69

Murray 215X18 Z

Pin, Pivot

$

$

Currently unavailable

70

Murray 671927

Deflector, Chute (Black)

$3.99

$

Usually ships in 2-12 days

0

71

Murray 017X91 Z

Washer

$

$

Currently unavailable

--

Murray F-000401L

Instruction Book

$

$

Currently unavailable
