20479 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12H802-0658-01 Parts Diagram

Super Recycler Walk-Behind Mower

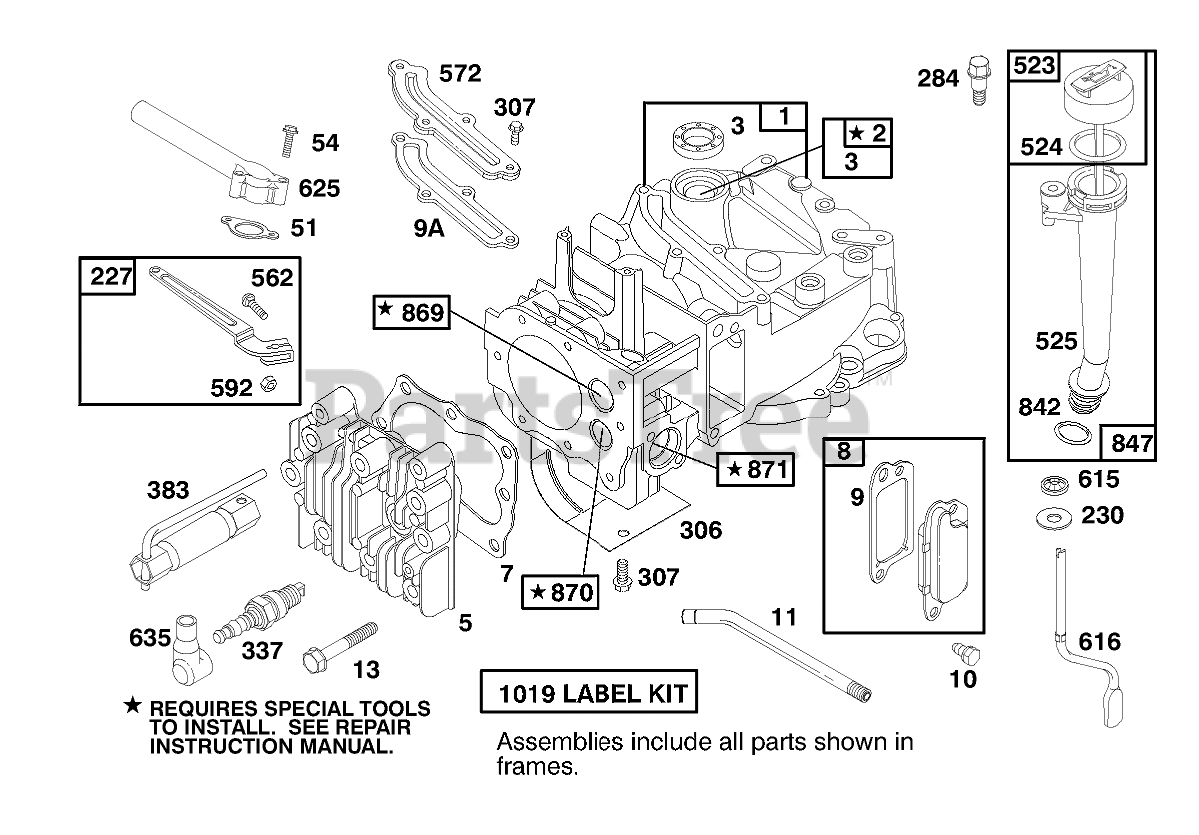

ENGINE BRIGGS & STRATTON MODEL 12H802-0658-01 Parts Diagram

  • Title

1

Briggs & Stratton 493260

Cylinder
(Superseded to 592645)

$325.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$22.99

$

In Stock, only 4 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 497316.

$5.99

$

In Stock, Qty 19

0

5

Briggs & Stratton 214368

Head-Cylinder
(Superseded to 594989)

$60.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272916

Gasket-Cylinder Hd
(Superseded to 692249)

Note: Included in Gasket Set-Part No. 497316.

$8.99

$

In Stock, Qty 15

0

8

Briggs & Stratton 495786

Breather ASM
(Superseded to 590395)

$16.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Gasket Set-Part No. 497316.

$5.99

$

In Stock, Qty 5

0

9A

Briggs & Stratton 272238

Gasket-Breather
(Superseded to 691879)

Note: Included in Gasket Set-Part No. 497316.

$7.49

$

In Stock, Qty 10

0

10

Briggs & Stratton 94650

Screw-Hex.
(Superseded to 691125)

$4.49

$

In Stock, Qty 5

0

11

Briggs & Stratton 231933

Breather Tube
(Superseded to 691781)

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 94876

Screw-Hex.
(Superseded to 690912)

$4.49

$

In Stock, Qty 18

0

51

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

Note: Included in Gasket Set-Part No. 497316.

$4.99

$

In Stock, Qty 10

0

54

Briggs & Stratton 94526

Screw-Hex
(Superseded to 691650)

$

$

Not available

227

Briggs & Stratton 492349

Lever Ass-y. Gov.
(Superseded to 690783)

$17.99

$

In Stock, only 3 left!

0

230

Briggs & Stratton 67072

Washer
(Superseded to 690272)

$4.49

$

In Stock, only 3 left!

0

284

Briggs & Stratton 94511

Screw-Hex.
(Superseded to 690940)

$4.49

$

In Stock, Qty 19

0

306

Briggs & Stratton 224324

Shield-Cylinder
(Superseded to 690450)

$11.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

Screw-Sem
(Superseded to 690345)

$5.49

$

In Stock, only 3 left!

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

$3.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 2 left!

0

523

Briggs & Stratton 495264

Dipstick
(Superseded to 499621)

$18.99

$

In Stock, only 2 left!

0

524

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

Note: Included in Gasket Set-Part No. 497316.

$5.99

$

In Stock, Qty 10

0

525

Briggs & Stratton 495265

Tube-Dipstick

$

$

Not available

562

Briggs & Stratton 94852

Screw (Governor Control Lever)
(Superseded to 691119)

$4.49

$

In Stock, Qty 16

0

572

Briggs & Stratton 224328

Cover-Breather
(Superseded to 697734)

$10.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 8

0

615

Briggs & Stratton 94474

Pushnut
(Superseded to 690340)

$4.99

$

In Stock, Qty 10

0

616

Briggs & Stratton 263175

Crank-Governor
(Superseded to 698801)

$11.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 497465

Manifold-Intake
(Superseded to 794305)

$

$

Not available

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 14

0

842

Briggs & Stratton 280966

O-Ring Seal
(Superseded to 692296)

Note: Included in Gasket Set-Part No. 497316.

$5.49

$

In Stock, Qty 16

0

847

Briggs & Stratton 495263

Tube-Oil Filler
(Superseded to 692047)

$

$

Not available

869

Briggs & Stratton 213512

Seat-IntakeValve
(Superseded to 691155)

$9.99

$

In Stock, only 2 left!

0

870

Briggs & Stratton 213513

Exhaust Valve Seat
(Superseded to 690380)

$

$

Not available

871

Briggs & Stratton 262001

Bushing-Guide

$

$

Not available

Briggs & Stratton 63709

Bushing-Guide

$15.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 494256

Label Kit

$

$

Not available
