20482 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

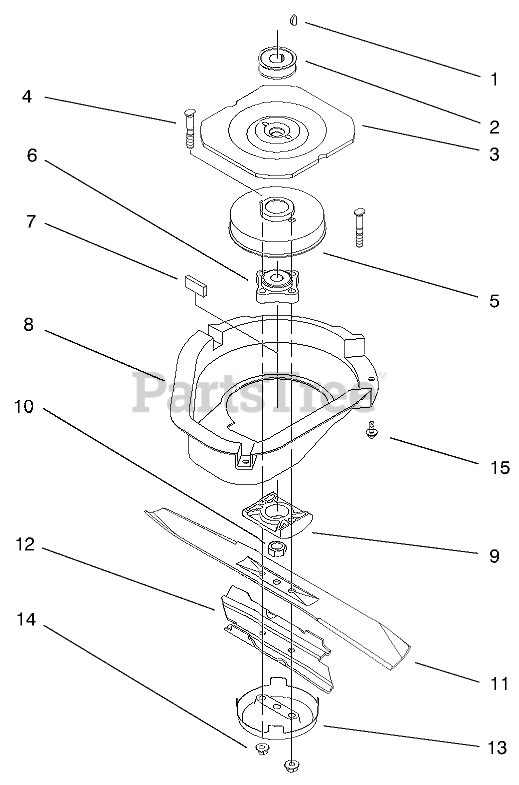

BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 3257-17

KEY-WOODRUFF

$

$

Not available

2

Toro 62-7560

PULLEY

$49.99

$

In Stock, only 2 left!

0

3

Toro 56-6160

Flywheel
(Superseded to 56-6160-03)

$114.99

$

In Stock, only 1 left!

0

4

Toro 42-3190

BOLT-BLADE

$12.99

$

In Stock, Qty 10

0

5

Toro 56-6170

Drum-Brake
(Superseded to 94-9431)

$52.99

$

In Stock, Qty 13

0

6

Toro 42-6890

HUB ASM

$107.99

$

In Stock, only 2 left!

0

7

Toro 52-3480

DAMPENER-VIBRATION

$1.99

$

In Stock, Qty 6

0

8

Toro 46-5692

Shield
(Superseded to 46-5693)

$39.99

$

In Stock, only 2 left!

0

9

Toro 93-4126

SPACER - BLADE

$18.99

$

Usually ships in 3-6 days

0

10

Toro 3296-33

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

11

Toro 93-4106

Blade
(Superseded to 133-8183-03)

$23.99

$

In Stock, Qty 20+

0

12

Toro 93-4181

Stiffener-Blade
(Superseded to 93-4181-03)

$

$

Not available

13

Toro 80-2770

CUP-SCALP, ANTI

$18.99

$

In Stock, Qty 5

0

14

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

15

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0
