20482 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE GTS 150 (MODEL NO. 20483 ONLY) Parts Diagram

Super Recycler Walk-Behind Mower

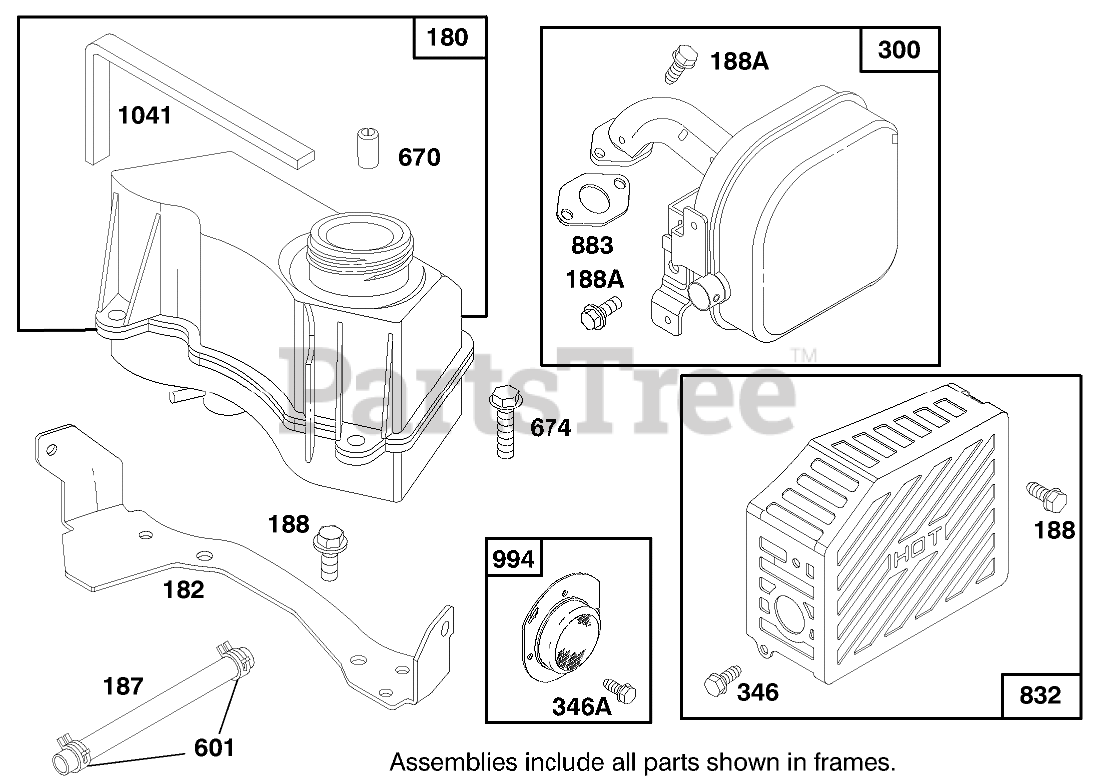

ENGINE GTS 150 (MODEL NO. 20483 ONLY) Parts Diagram

  • Title

180

Toro 77-8580

TANK ASSY - FUEL

$164.99

$

Usually ships in 3-6 days

0

182

Toro 77-7170

BRACKET - FUEL TANK

$

$

Not available

187

Toro 78-4100

Hose

$

$

Not available

188

Toro 77-7450

SCREW - SEM

$

$

Not available

188A

Toro 94-1652

SCREW - HEX HEAD

$6.99

$

Usually ships in 3-6 days

0

300

Toro 77-8640

MUFFLER - EXHAUST

$

$

Not available

346

Toro 77-8650

SCREW - SELF-TAPPING

$

$

Not available

346A

Toro 77-8650

SCREW - SELF-TAPPING

$

$

Not available

601

Toro 78-4690

Clamp

$

$

Not available

670

Toro 77-9030

SPACER

$

$

Not available

674

Toro 77-8600

SCREW - HEX HEAD

$

$

Not available

832

Toro 77-9290

MUFFLER GUARD BLACK

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

994

Toro 94-1681

ARRESTOR - SPARK

$

$

Not available

1041

Toro 77-8590

SEAL - FOAM

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available
