20487 (SR-21 OSBB) - Toro 21" Super Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE & BLADE ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

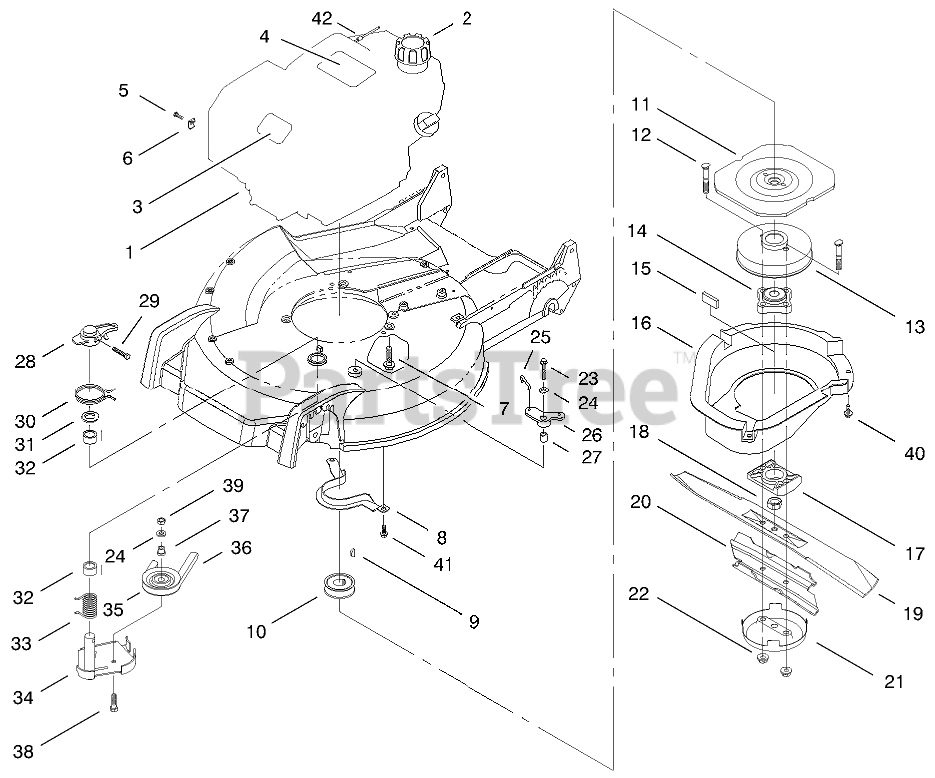

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Engine-GTS OHV 200

$

$

Not available

2

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 20+

0

3

Toro 98-3206

Decal

$1.99

$

In Stock, only 2 left!

0

4

Toro 98-1514

DECAL - RECOIL

$

$

Not available

5

Toro 93-8470

SCREW-CLAMP

$7.99

$

Usually ships in 3-6 days

0

6

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

7

Toro 32144-102

SCREW-HWH

$3.49

$

In Stock, Qty 5

0

8

Toro 66-0570

Guide-Belt
(Superseded to 66-0570-03)

$13.99

$

In Stock, only 2 left!

0

9

Toro 3257-17

KEY-WOODRUFF

$5.49

$

In Stock, Qty 10

0

10

Toro 62-7560

PULLEY

$41.99

$

In Stock, only 2 left!

0

11

Toro 56-6160

Flywheel
(Superseded to 56-6160-03)

$104.99

$

In Stock, only 2 left!

0

12

Toro 42-3190

BOLT-BLADE

$11.99

$

In Stock, Qty 20+

0

13

Toro 94-9431

BRAKE DRUM ASM

$44.99

$

In Stock, Qty 20+

0

14

Toro 42-6890

HUB ASM

$93.99

$

In Stock, only 1 left!

0

15

Toro 52-3480

DAMPENER-VIBRATION

$1.49

$

In Stock, Qty 8

0

16

Toro 46-5693

SHIELD

$31.99

$

In Stock, Qty 11

0

17

Toro 93-4126

SPACER - BLADE

$15.99

$

Usually ships in 3-6 days

0

18

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

19

Toro 93-4106

Blade
(Superseded to 133-8183-03)

$22.99

$

In Stock, Qty 20+

0

20

Toro 93-4181

Stiffener-Blade
(Superseded to 93-4181-03)

$

$

Not available

21

Toro 80-2770

CUP-SCALP, ANTI

$15.99

$

In Stock, only 2 left!

0

22

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

23

Toro 32104-107

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 49-2810

LINK-CONTROL

$2.99

$

In Stock, only 1 left!

0

26

Toro 49-7960

BELLCRANK

$11.99

$

In Stock, only 1 left!

0

27

Toro 49-7950

SLEEVE-BELLCRANK

$5.49

$

Usually ships in 3-6 days

0

28

Toro 49-2820

LEVER

$11.99

$

In Stock, only 1 left!

0

29

Toro 32104-96

SCREW-HH

$6.49

$

In Stock, Qty 5

0

30

Toro 49-7970

SPRING-TORSION

$8.99

$

Usually ships in 3-6 days

0

31

Toro 70-1160

WASHER

$5.49

$

Usually ships in 3-6 days

0

32

Toro 68-9780

BEARING

$23.99

$

Usually ships in 3-6 days

0

33

Toro 46-5670

SPRING-TORSION

$9.99

$

Usually ships in 3-6 days

0

34

Toro 94-1601

BRAKE ASM

$

$

Not available

35

Toro 46-5650

PULLEY-IDLER
(Superseded to 117-5299)

$42.99

$

In Stock, Qty 16

0

36

Toro 42-0884

V-BELT

$17.99

$

In Stock, Qty 20+

0

37

Toro 46-5630

HUB-PULLEY, IDLER

$16.99

$

In Stock, only 1 left!

0

38

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

39

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

40

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

41

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

42

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

Toro 99-2531

BLOCK-SHORT

Note: Not illustrated

$724.99

$

Usually ships in 3-6 days

0
