20487 (SR-21 OSBB) - Toro 21" Super Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HOUSING ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

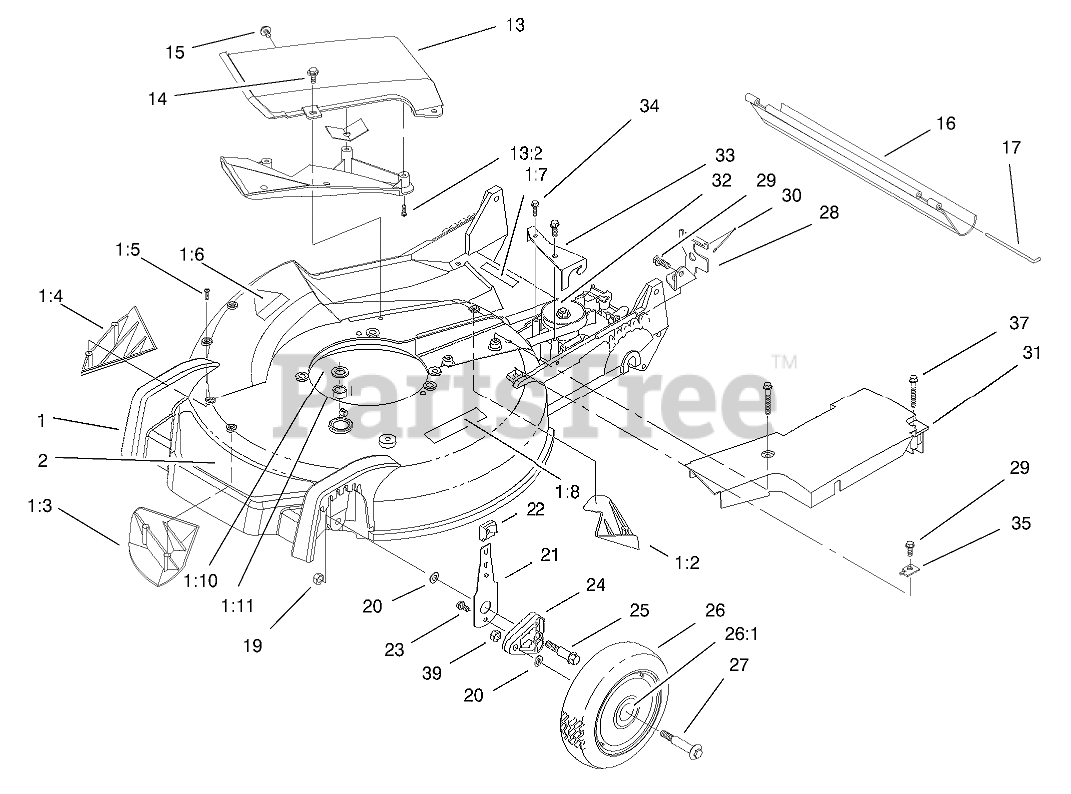

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 98-8702

HOUSING

$

$

Not available

1:2

Toro 92-1750

KICKER-REAR

$18.99

$

In Stock, Qty 5

0

1:3

Toro 92-1720

KICKER-FRONT

$19.99

$

In Stock, only 2 left!

0

1:4

Toro 92-1730

KICKER-RH

$19.99

$

In Stock, only 2 left!

0

1:5

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

1:6

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

1:7

Toro 99-6018

DECAL-WARNING

$2.49

$

Usually ships in 3-6 days

0

1:8

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

1:10

Toro 70-1160

WASHER

$5.49

$

Usually ships in 3-6 days

0

1:11

Toro 68-9780

BEARING

$23.99

$

Usually ships in 3-6 days

0

2

Toro 99-6010

DECAL - DECK

$10.99

$

Usually ships in 3-6 days

0

13

Toro 100-8780

Recycler Cover ASM
(Superseded to 17-5179)

$

$

Not available

13:2

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

14

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

15

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 2 left!

0

16

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 16

0

17

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

19

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

20

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

21

Toro 66-0541

FRONT SPRING ARM ASM

$15.99

$

In Stock, Qty 7

0

22

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 9

0

23

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

24

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

25

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

26

Toro 98-7130

WHEEL ASM

$22.99

$

In Stock, Qty 8

0

26:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

27

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 15

0

28

Toro 82-5680-03

BRACKET-TRACTION, ADJ.

$11.99

$

Usually ships in 3-6 days

0

29

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

30

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 3 left!

0

31

Toro 98-1502

COVER-BELT

$

$

Not available

32

Toro 62-6673

GEARCASE ASM

$753.99

$

Usually ships in 3-6 days

0

33

Toro 62-4320-03

BRACKET-GUIDE, BELT

$26.99

$

Usually ships in 3-6 days

0

34

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

35

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 4 left!

0

37

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 5

0

39

Toro 603773

NUT

$2.99

$

In Stock, Qty 20+

0
