20488 (SR-21 OSE) - Toro 21" Super Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) HOUSING ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

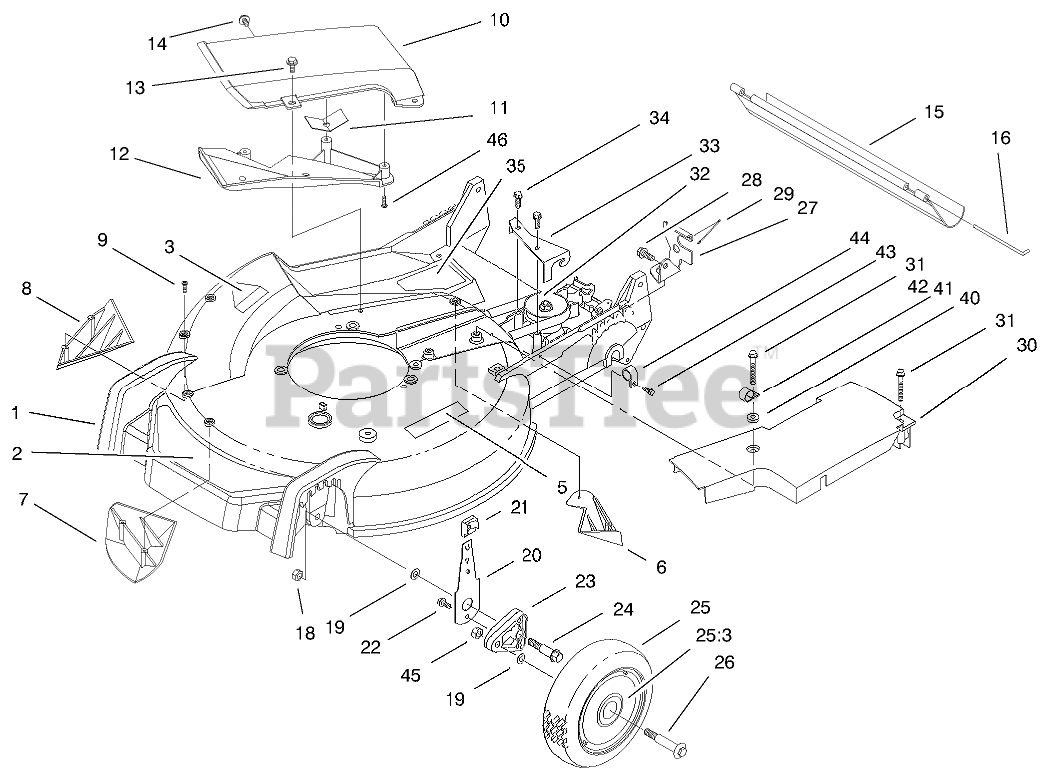

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 98-7148

HOUSING
(Superseded to 105-1307)

$339.99

$

Usually ships in 3-6 days

0

2

Toro 93-3696

DECAL - DECK

$

$

Not available

3

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

5

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

6

Toro 92-1750

KICKER-REAR

$18.99

$

In Stock, Qty 5

0

7

Toro 92-1720

KICKER-FRONT

$19.99

$

In Stock, only 2 left!

0

8

Toro 92-1730

KICKER-RH

$19.99

$

In Stock, only 2 left!

0

9

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

10

Toro 17-5179

COVER W/DEFLECTOR

$

$

Not available

11

Guard-Cover

$

$

Not available

12

Deflector-Recycler

$

$

Not available

13

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

14

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 3 left!

0

15

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 16

0

16

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

18

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

19

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

20

Toro 66-0541

FRONT SPRING ARM ASM

$15.99

$

In Stock, Qty 8

0

21

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 12

0

22

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

23

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

24

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

25

Toro 98-7130

WHEEL ASM

$22.99

$

In Stock, Qty 14

0

25:3

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

26

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, only 1 left!

0

27

Toro 82-5680

Bracket-Adj. Trac
(Superseded to 82-5680-03)

$11.99

$

Usually ships in 3-6 days

0

28

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

29

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 3 left!

0

30

Toro 98-1502

COVER-BELT

$

$

Not available

31

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 6

0

32

Toro 62-6673

GEARCASE ASM

$753.99

$

Usually ships in 3-6 days

0

33

Toro 62-4320

Bracket-Guide
(Superseded to 62-4320-03)

$26.99

$

Usually ships in 3-6 days

0

34

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

35

Toro 82-8450

DECAL - DANGER

$6.99

$

Usually ships in 3-6 days

0

40

Toro 3-5792

WASHER

$5.99

$

Usually ships in 3-6 days

0

41

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

42

Toro 37-7262

SCREW-SPECIAL

$3.49

$

Usually ships in 3-6 days

0

43

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

44

Toro 2412-83

CLAMP-CABLE

$

$

Not available

45

Toro 603773

NUT

$2.99

$

In Stock, Qty 20+

0

46

Screw-PPH

$

$

Not available
