20489 (V-21 S) - Toro 21" Vacu-Power Walk-Behind Mower (SN: 089000001 - 089999999) (1998) Engine Assembly Parts Diagram

21" Vacu-Power Walk-Behind Mower

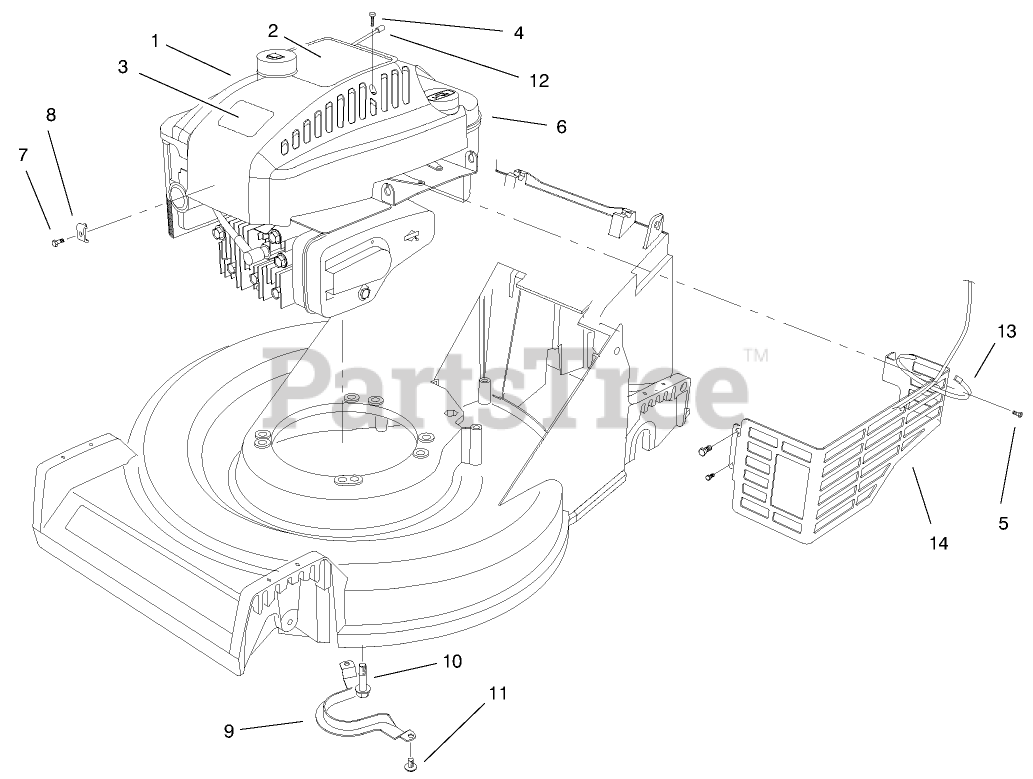

Engine Assembly Parts Diagram

  • Title

1

Toro 93-0243

SHROUD-ENGINE

$64.99

$

Usually ships in 3-6 days

0

2

Toro 95-1671

DECAL - RECOIL

$7.49

$

Usually ships in 3-6 days

0

3

Toro 98-3206

DECAL

$2.49

$

In Stock, only 2 left!

0

4

Toro 32144-121

See Supercession: 32144-88
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

5

Toro 32144-73

See Supercession: 104-2065
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

6

Engine-Quantum 6.0 Hp

$

$

Not available

7

Toro 93-8470

SCREW-CLAMP

$

$

Not available

8

Toro 2210-249

CLAMP-CASING

$

$

Not available

9

Toro 66-0570

See Supercession: 66-0570-03
(Superseded to 66-0570-03)

$15.99

$

In Stock, only 1 left!

0

10

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, Qty 5

0

11

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

12

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

13

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

14

Toro 82-8550

See Supercession: 104-7577-03
(Superseded to 104-7577-03)

$28.99

$

In Stock, only 2 left!

0
