20490 (V-21 SB) - Toro 21" Vacu-Power Walk-Behind Mower (SN: 089000001 - 089999999) (1998) HOUSING ASSEMBLY Parts Diagram

21" Vacu-Power Walk-Behind Mower

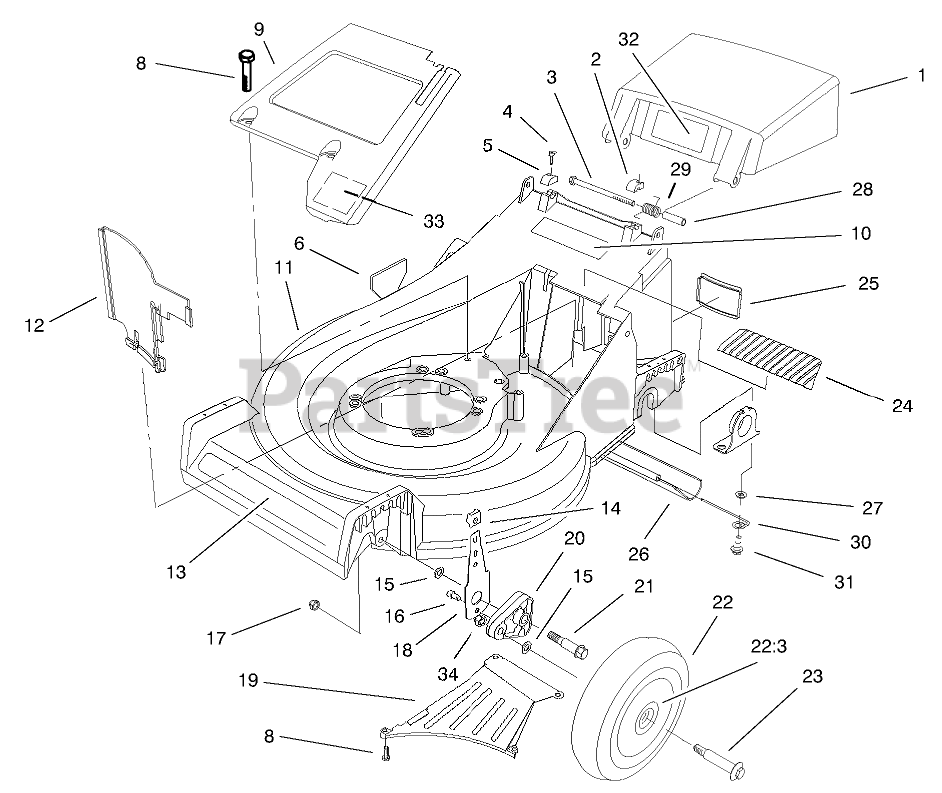

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 99-1725

DOOR-DISCHARGE (SERVICE)

$99.99

$

Usually ships in 3-6 days

0

2

Toro 71-7900

CAP-HINGE BOLT, LH

$4.99

$

Usually ships in 3-6 days

0

3

Toro 322-29

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

4

Toro 65-5210

SCREW-HSH

$4.49

$

Usually ships in 3-6 days

0

5

Toro 71-7910

CAP-HINGE BOLT, RH

$4.99

$

Usually ships in 3-6 days

0

6

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 65-5660

PaneI-Screen
(Superseded to 65-5660-03)

$46.99

$

Usually ships in 3-6 days

0

10

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

11

Toro 98-9224

Housing-53cm
(Superseded to 98-9221)

$

$

Not available

12

Toro 66-0020

PANEL-VERTICAL

$

$

Not available

13

Toro 98-3223

DECAL - DECK

$16.99

$

Usually ships in 3-6 days

0

14

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

15

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 65-5220

SCREW-HSH, THREAD FORMING

$3.99

$

Usually ships in 3-6 days

0

17

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

18

Toro 66-0541

FRONT SPRING ARM ASM

$15.99

$

In Stock, Qty 8

0

19

Toro 71-9640

Ramp-Discharge
(Superseded to 71-9640-03)

$

$

Not available

20

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

21

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

22

Toro 98-7130

WHEEL ASM

$22.99

$

In Stock, Qty 16

0

22:3

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

23

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 5

0

24

Toro 71-9920

COVER-TOP

$

$

Not available

25

Toro 71-9650

COVER-ACCESS

$7.99

$

Usually ships in 3-6 days

0

26

Toro 65-5350

TRAILING SHIELD

$43.99

$

Usually ships in 3-6 days

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 71-8580

SPACER-DOOR

$2.49

$

Usually ships in 3-6 days

0

29

Toro 71-9840

SPRING-DOOR

$12.99

$

Usually ships in 3-6 days

0

30

Toro 76-1980

SHIELD HANGER

$3.99

$

Usually ships in 3-6 days

0

31

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

32

Toro 98-3218

DECAL - WARNING

$

$

Not available

33

Toro 71-8680

DECAL - BBC ADJUST

$

$

Not available

34

Toro 603773

NUT

$2.99

$

In Stock, Qty 20+

0
