20494 (SR-21 S) - Toro 21" Super Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) Engine Briggs Stratton Model 12h802-1758-E1 9 Parts Diagram

21" Super Recycler Walk-Behind Mower

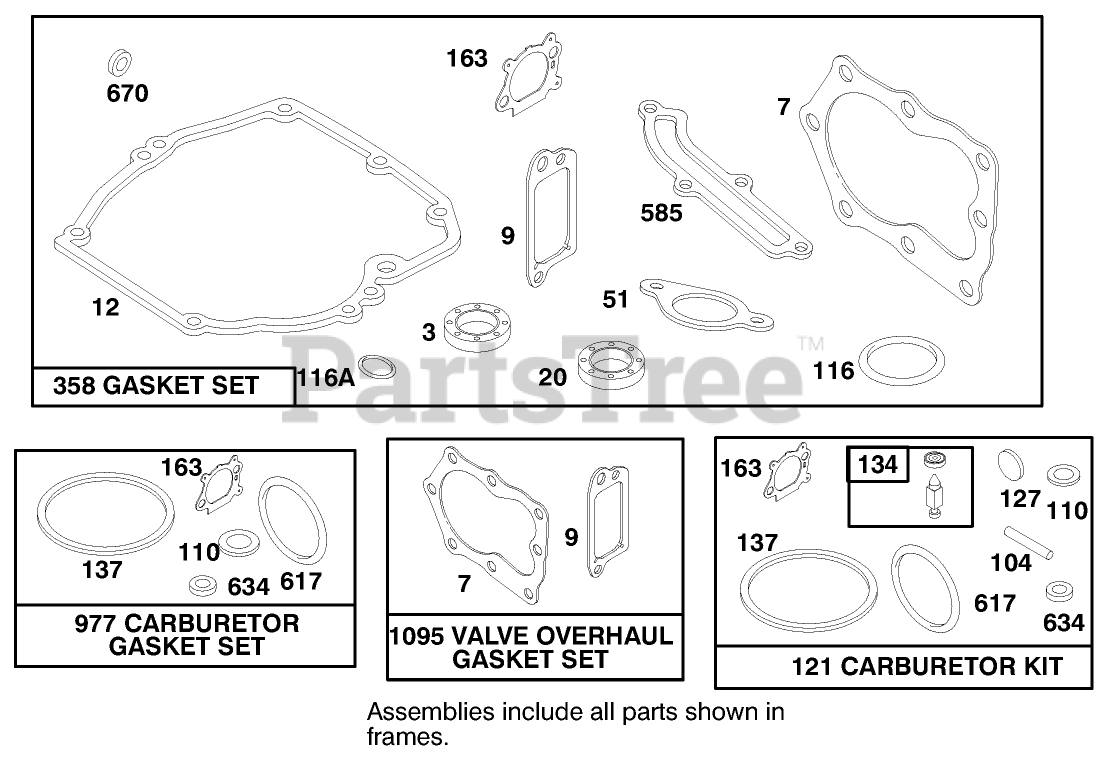

Engine Briggs Stratton Model 12h802-1758-E1 9 Parts Diagram

  • Title

3

Toro 299819

Seal-Oil

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

7

Toro 272916

Gasket-Cylinder Hd

Note: Included in Valve Overhaul Gasket Set-Part No. 498528.

$

$

Currently unavailable

7

Toro 272916

Gasket-Cylinder Hd

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Valve Overhaul Gasket Set-Part No. 498528.

$

$

Currently unavailable

9A

Toro 272238

Gasket-Breather

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

12

Toro 272198

Gasket

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

20

Toro 399781

Seal-Oil

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

51

Toro 272199

Gasket-Intake

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

104

Toro 231371

Spring
(Superseded to 701979)

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

110

Washer-Bowl (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

110

Washer-Bowl (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

116

Toro 280393

O-Ring Seal

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

116A

Toro 280966

O-Ring Seal

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

121

Toro 498260

Carburetor Overhaul Kit

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Currently unavailable

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Currently unavailable

358

Toro 496117

Gasket Set

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Currently unavailable

634

Washer-Foam (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

634

Washer-Foam (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

670

Toro 493823

Spacer

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

977

Toro 498261

Carburetor Gasket Set

$

$

Currently unavailable

1095

Toro 498528

Valve Gasket Set

$

$

Currently unavailable
