2050 (2690451) - Simplicity Champion 50" Zero-Turn Mower, 20hp Engine Group - Briggs & Stratton Vanguard Parts Diagram

Champion 50" Zero-Turn Mower, 20hp

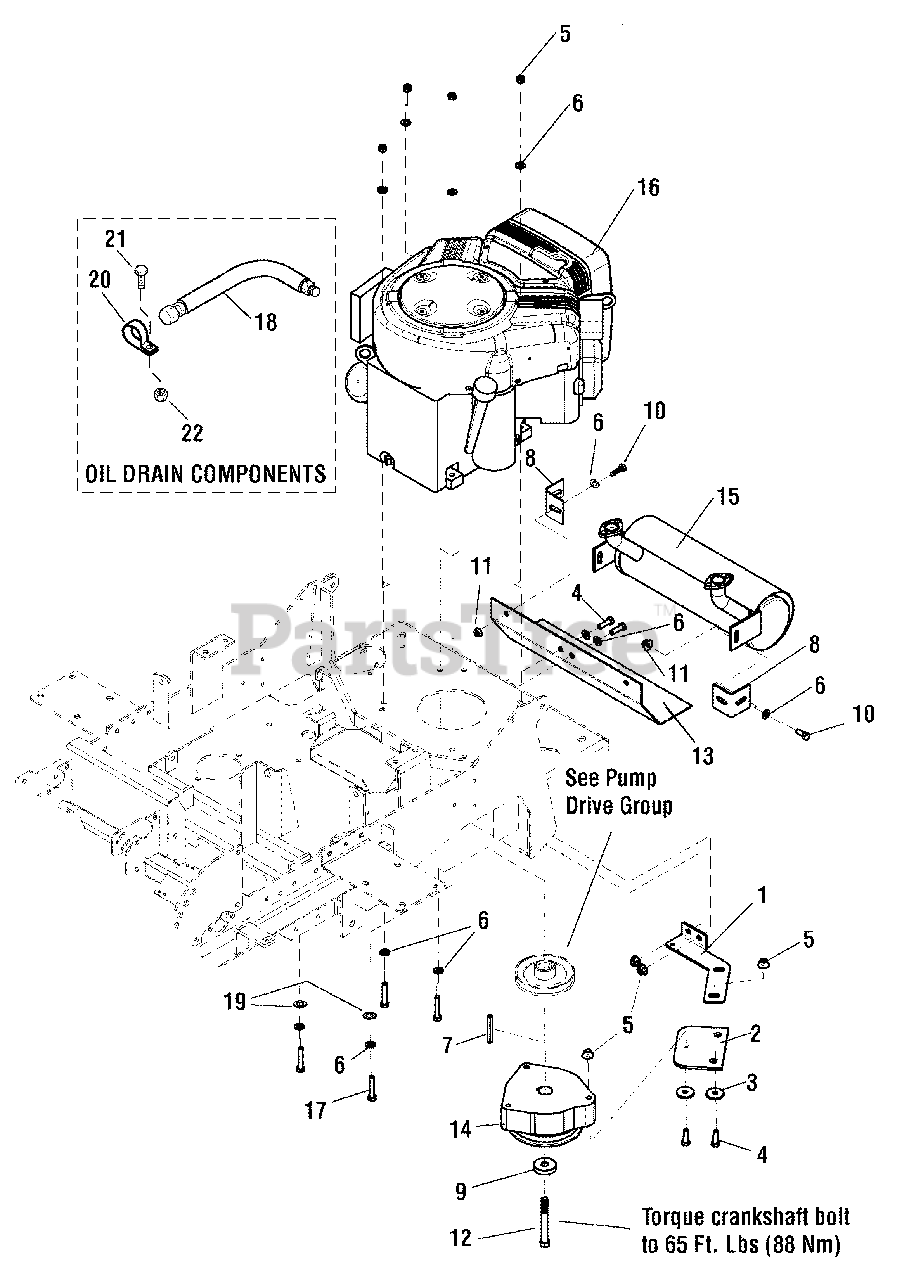

Engine Group - Briggs & Stratton Vanguard Parts Diagram

  • Title

1

Simplicity 5061857CSM

PLATE, CLUTCH ANCHOR

$33.99

$

Usually ships in 2-12 days

0

2

Simplicity 5043636SM

CLUTCH ANCHOR PAD

$11.99

$

In Stock, Qty 20+

0

3

Simplicity 5044617SM

WASHER, .34 X 1.25 X 10 GA

$8.49

$

In Stock, only 2 left!

0

4

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5050407X18

KEY, 1/4" SQ. X 2 1/4
(Superseded to 5050407X18SM)

$4.99

$

In Stock, only 2 left!

0

8

Simplicity 5048262CSM

BRACKET,SUPPORT,MUFFLER

$5.99

$

Usually ships in 2-12 days

0

9

Simplicity 5042132SM

SPACER, .45 X 1.62 X .37
(Superseded to 5102965YP)

$24.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4" GRD5

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 5025139SM

NUT, 5/16-18 HEX LG SERR FLG.

$3.49

$

In Stock, only 4 left!

0

12

Simplicity 5103300SM

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4"
(Superseded to 5103300YP)

$5.99

$

In Stock, only 2 left!

0

13

Simplicity 5401071CSM

PLATE, HEAT SHIELD - ORG

$41.99

$

Usually ships in 2-12 days

0

14

Simplicity 5023100SM

CLUTCH, # 51110100,ELECTRIC, 1" SHAFT

$528.99

$

Usually ships in 2-12 days

0

15

Simplicity 5023187SM

MUFFLER, ACS

$343.99

$

Usually ships in 2-12 days

0

16

* ENGINE, BRIGGS VANGUARD

$

$

Not available

17

Simplicity 5025011X18SM

BOLT, 5/16-18 X 2-1/4" GD5 YZ

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 5048681SM

HOSE, OIL DRAIN

$20.99

$

In Stock, Qty 9

0

19

Simplicity 5025188SM

WASHER, 5/16" INT. TOOTH LOCK

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 5021500SM

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

In Stock, only 2 left!

0

21

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4" GD5 YZ

$3.99

$

In Stock, only 3 left!

0

22

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0
