20505x62B - Briggs & Stratton 20" Walk-Behind Mower (1997) (Home Base) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

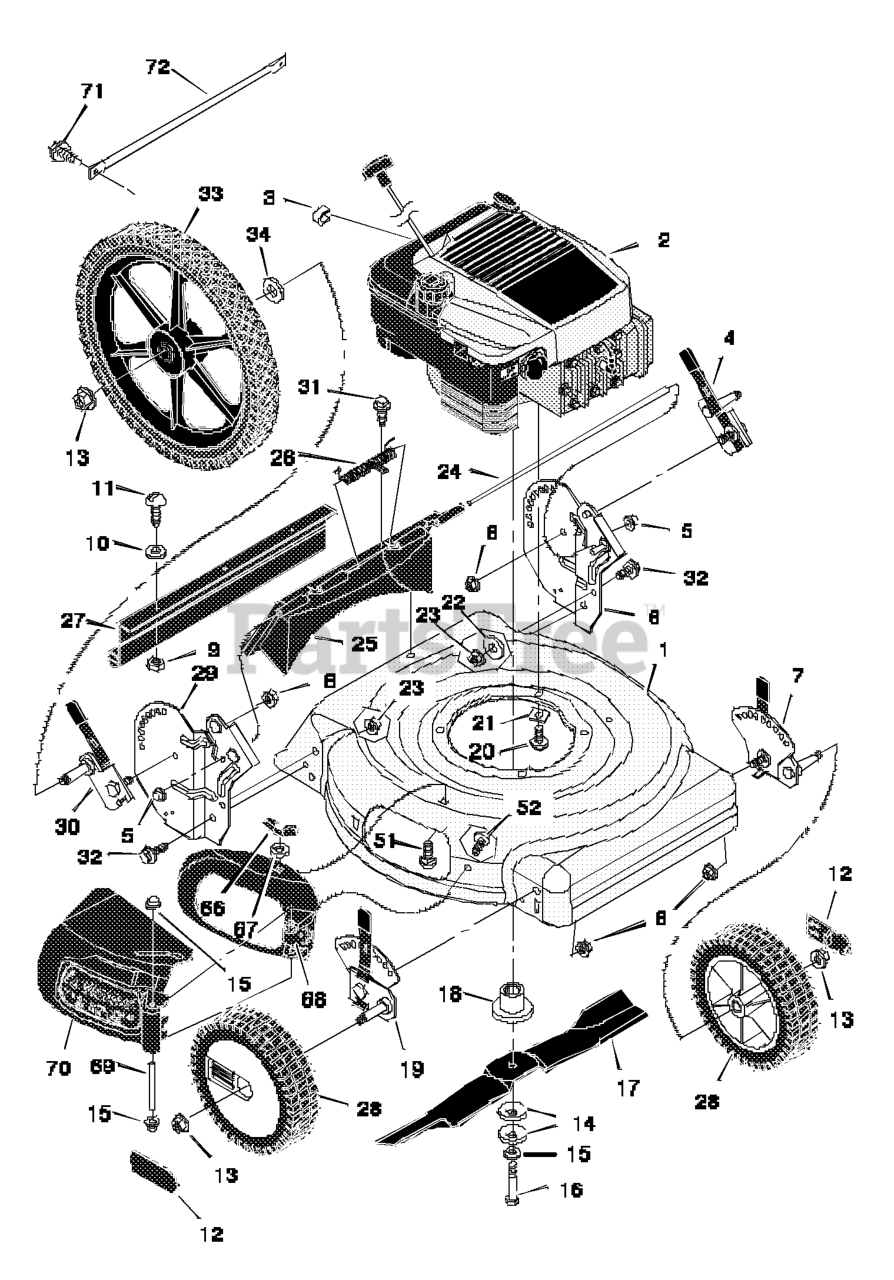

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 776004

Housing

$

$

Currently unavailable

2

Engine *

$

$

Not available

3

Murray 042189MA

Stop, Rope (Recoil - Start)

$3.99

$

Usually ships in 2-12 days

0

4

Murray 671977

Adjuster, Left Height

$10.99

$

Usually ships in 2-12 days

0

5

Murray 028X42MA

Push On Cap

$4.49

$

Usually ships in 2-12 days

0

6

Murray 672262

Bracket, Left Handle

$

$

Currently unavailable

7

Murray 671973MA

Adjuster, Left Front Height

$

$

Not available

8

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 15X102MA

Nut, Hex

$

$

Not available

10

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

11

Murray 004X21MA

Screw

$3.99

$

Usually ships in 2-12 days

0

12

Murray 043615MA

Hub Cap

Note: (Optional)

$

$

Not available

13

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137MA

Washer, Belleville

$5.49

$

In Stock, only 2 left!

0

15

Murray 17X124MA

Washer

$4.49

$

In Stock, only 2 left!

0

16

Murray 17X142MA

Bolt

$

$

Not available

17

Murray 671921E701

Blade

$

$

Not available

18

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

19

Murray 671972MA

Adjuster, Right Front Height

$

$

Not available

20

Murray 0025X6MA

Bolt, Engine

$5.99

$

Usually ships in 2-12 days

0

21

Murray 671989

Support, Engine

$

$

Currently unavailable

22

Murray 17X146MA

Washer
(Superseded to 1933468SM)

$4.49

$

In Stock, only 2 left!

0

23

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

24

Murray 215X17 Z

Rod, Pivot

$

$

Currently unavailable

25

Murray 671915

Door, Rear

$

$

Not available

26

Murray 166X44MA

Spring

$14.99

$

Usually ships in 2-12 days

0

27

Murray 671969MA

Guard, Rear

$18.99

$

Usually ships in 2-12 days

0

28

Murray 043618MA

WHEEL & TIRE ASSEMBLY, White, 8"
(Superseded to 071132MA)

$38.99

$

Usually ships in 2-12 days

0

29

Murray 672261

Bracket, Right Handle

$

$

Currently unavailable

30

Murray 671976

Adjuster, Right Height

$9.99

$

Usually ships in 2-12 days

0

31

Murray 26X259MA

Screw

$4.49

$

In Stock, only 4 left!

0

32

Murray 001X85MA

Bolt
(Superseded to 5025013X6SM)

$3.99

$

In Stock, only 3 left!

0

33

Murray 672064MA

WHEEL & TIRE ASSEMBLY, Ball Bearing, 14"

$

$

Not available

34

Murray 17X164MA

Washer

$

$

Not available

51

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

52

Murray 26X221MA

Screw

$

$

Not available

66

Murray 071495MA

Wingnut

$4.99

$

In Stock, only 2 left!

0

67

Murray 028X64MA

Retainer, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

68

Murray 671926

Bezel

$

$

Not available

69

Murray 215X18 Z

Pin, Pivot

$

$

Currently unavailable

70

Murray 671927

Deflector, Chute

$

$

Not available

71

Murray 26X263MA

Screw

$4.99

$

In Stock, only 4 left!

0

72

Murray 672233

Brace

$

$

Currently unavailable

--

Murray F-97519

Instruction Book

$

$

Currently unavailable
