20505x8A - Murray 20" Walk-Behind Mower (1997) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

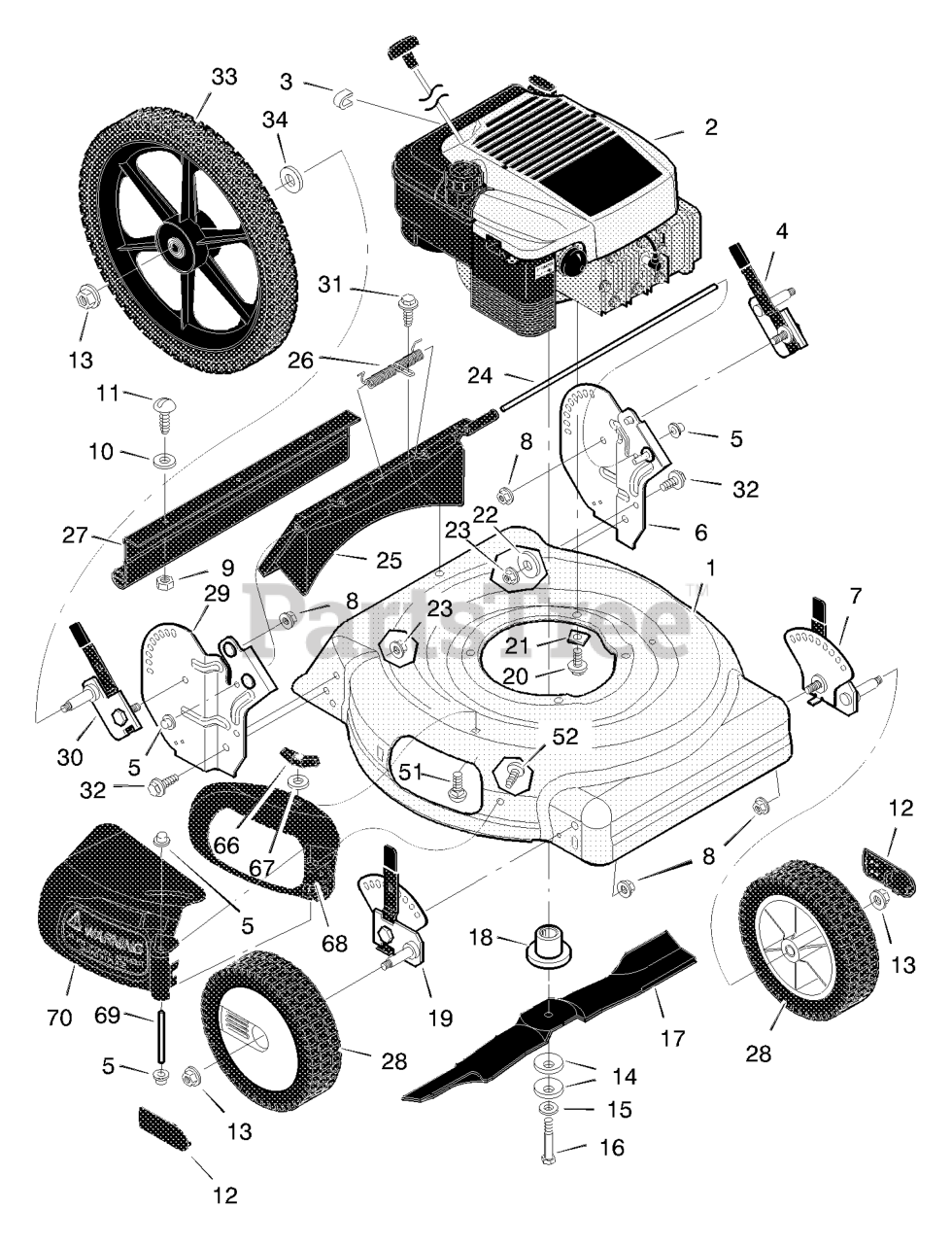

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 672027

Housing

$

$

Currently unavailable

2

Engine *

$

$

Not available

3

Murray 042189MA

Stop, Rope (Recoil - Start)

$3.99

$

Usually ships in 2-12 days

0

4

Murray 671977

Adjuster, Left Height

$10.99

$

Usually ships in 2-12 days

0

5

Murray 028X42MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

6

Murray 671968

Bracket, Left Handle

$

$

Currently unavailable

7

Murray 671973MA

Adjuster, Left Front Height

$

$

Not available

8

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 15X102MA

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

10

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

11

Murray 004X21MA

Screw

$3.99

$

Usually ships in 2-12 days

0

12

Murray 043615MA

Hub Cap

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

13

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

16

Murray 17X142MA

Bolt

$4.49

$

Usually ships in 2-12 days

0

17

Murray 671921E245

Blade

$

$

Currently unavailable

18

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

19

Murray 671972MA

Adjuster, Right Front Height

$

$

Not available

20

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

21

Murray 671989

Support, Engine

$

$

Currently unavailable

22

Murray 17X146MA

Washer

$5.49

$

Usually ships in 2-12 days

0

23

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

24

Murray 215X17 Z

Rod, Pivot

$

$

Currently unavailable

25

Murray 671915

Door, Rear

$10.99

$

Usually ships in 2-12 days

0

26

Murray 166X44MA

Spring

$14.99

$

In Stock, only 3 left!

0

27

Murray 671970MA

Guard, Rear

$13.99

$

Usually ships in 2-12 days

0

28

Murray 672060MA

Wheel
(Superseded to 336545MA)

$33.99

$

In Stock, only 1 left!

0

29

Murray 671967

Bracket, Right Handle

$

$

Currently unavailable

30

Murray 671976

Adjuster, Right Height

$9.99

$

Usually ships in 2-12 days

0

31

Murray 26X259MA

Screw

$4.49

$

Usually ships in 2-12 days

0

32

Murray 001X85MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

33

Murray 672074MA

Wheel, Rear

$

$

Not available

34

Murray 17X164MA

Washer

$18.99

$

Usually ships in 2-12 days

0

51

Murray 002X72

Bolt, Carriage

$

$

Currently unavailable

52

Murray 26X221MA

Screw

$3.49

$

Usually ships in 2-12 days

0

66

Murray 071495MA

Wingnut

$4.99

$

In Stock, only 3 left!

0

67

Murray 028X64MA

Retainer, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

68

Murray 671926

Bezel

$

$

Not available

69

Murray 215X18 Z

Pin, Pivot

$

$

Currently unavailable

70

Murray 671927

Deflector, Chute

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-97504

Instruction Book

$

$

Currently unavailable
