20506 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1976) Handle Assembly (model 20506) Parts Diagram

Walk-Behind Mower

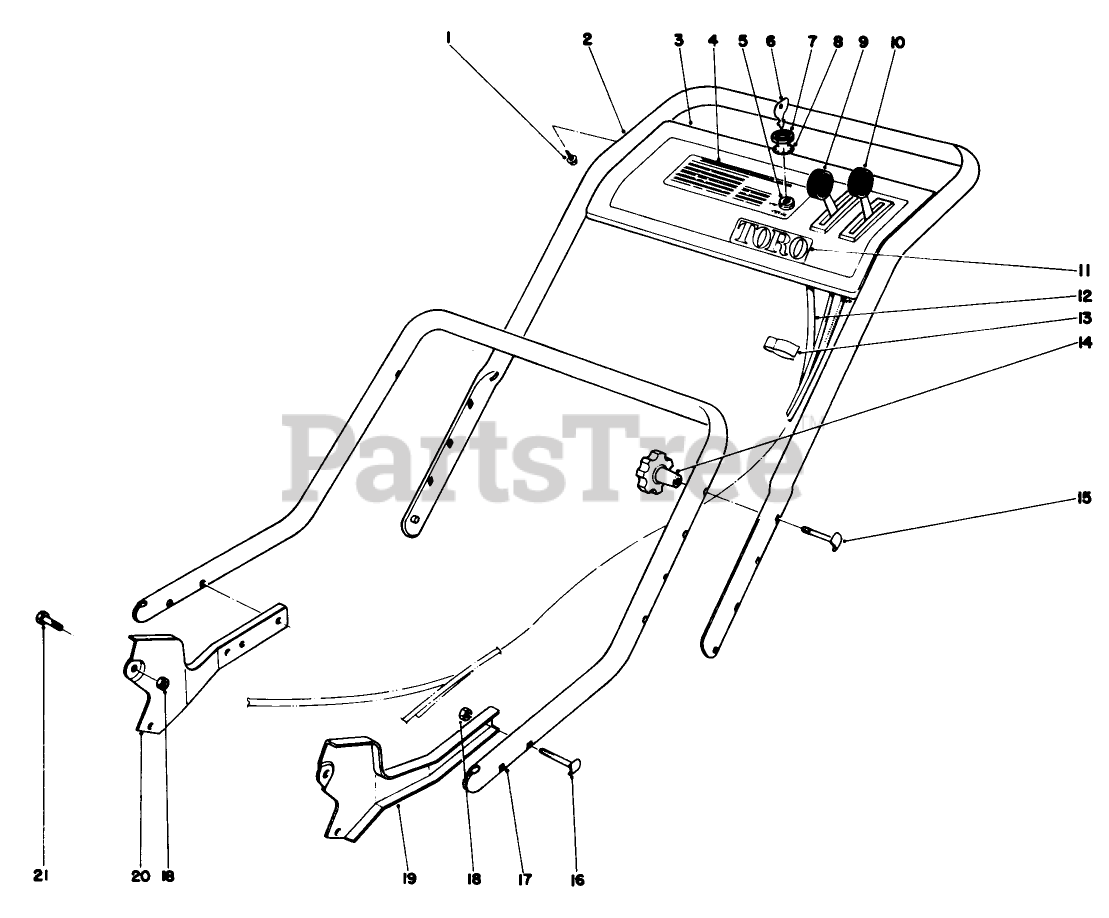

Handle Assembly (model 20506) Parts Diagram

  • Title

1

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

2

Toro 23-0580

DISCONTINUED

$

$

Not available

3

Toro 25-0390

DISCONTINUED

$

$

Not available

4

Toro 23-0770

Decal-Control Plate

$

$

Currently unavailable

5

Toro 23-0650

See Supercession: 29-5560
(Superseded to 29-5560)

$18.99

$

In Stock, only 2 left!

0

6

Toro 218-412

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

8

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

9

Toro 20-9780

DISCONTINUED

$

$

Not available

10

Toro 25-1030

See Supercession: 46-6050
(Superseded to 46-6050)

$

$

Not available

11

Toro 20-4690

TORO LOGO DECAL

$7.99

$

Usually ships in 3-6 days

0

12

Toro 23-0820

DISCONTINUED

$

$

Not available

13

Toro 218-465

BOWDEN CLIP

$

$

Not available

14

Toro 19-4050

KNOB

$18.99

$

In Stock, only 2 left!

0

15

Toro 6-6330

DISCONTINUED

$

$

Not available

16

Toro 23-9140

Handle Screw

$

$

Currently unavailable

17

Toro 25-2230

Lower Handle

$

$

Currently unavailable

18

Toro 32146-5

See Supercession: 32153-3
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

19

Toro 25-2220

Latch Handle L.H.

$

$

Currently unavailable

20

Toro 25-2210

DISCONTINUED

$

$

Not available

21

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

Toro 26-7270

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
