20531 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) Carburetor No. 632099 Parts Diagram

Walk-Behind Mower

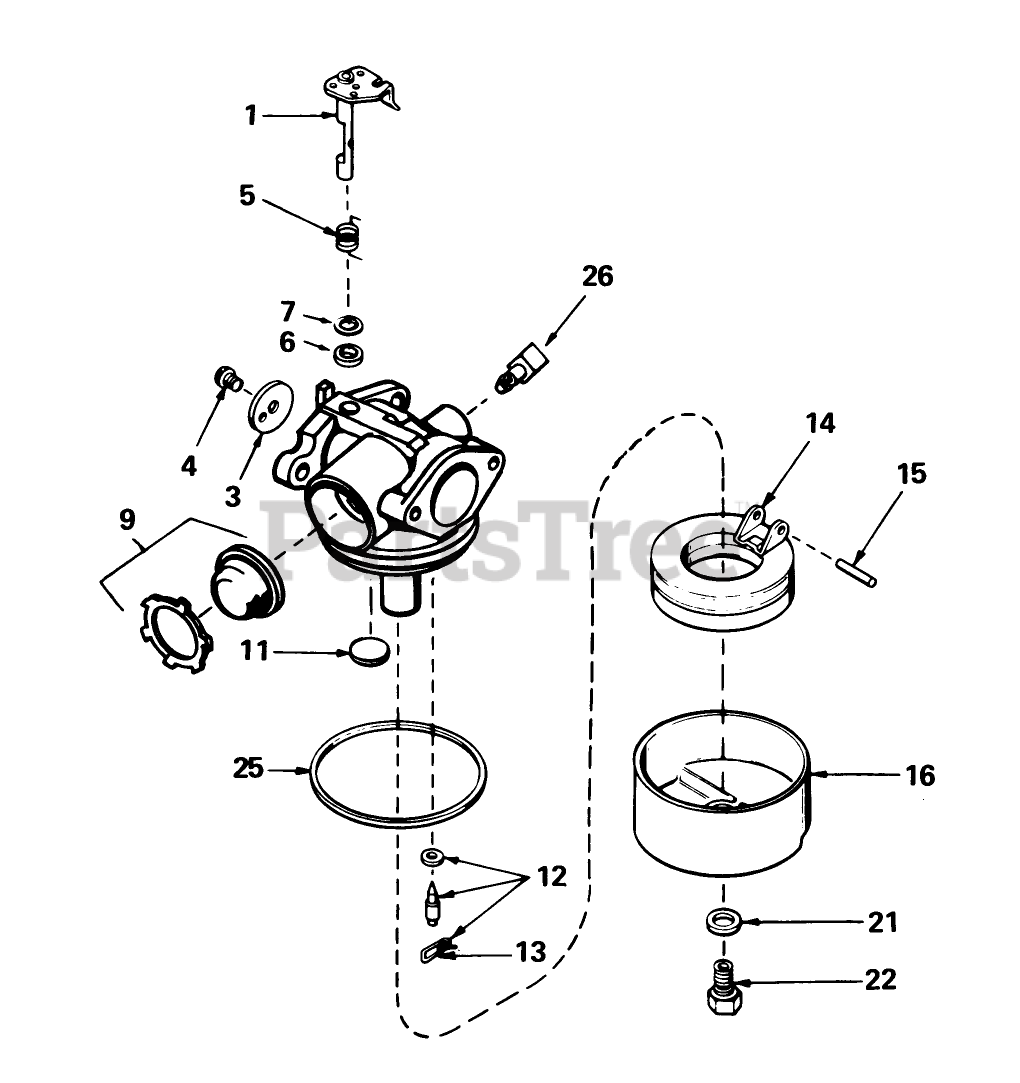

Carburetor No. 632099 Parts Diagram

  • Title

1

Toro 631615

Throttle Shaft and Lever ASM

$

$

Currently unavailable

3

Toro 631616

Throttle-Shutter

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

5

Toro 631767

Spring-Return, Throttle

$

$

Currently unavailable

6

Toro 631971

Seal-Dust

$

$

Currently unavailable

7

Toro 631184

Washer-Seal, Dust

$

$

Currently unavailable

9

Toro 632047

Primer Assy.

$

$

Currently unavailable

11

Toro 631027

Plug-Welch, Atmospheric Vent

$

$

Currently unavailable

12

Toro 631021

Inlet Needle, Seat Clip Assy. (Incl. No. 13)

$

$

Currently unavailable

13

Toro 631022

Clip-Spring

$

$

Currently unavailable

14

Toro 632019

Float

$

$

Currently unavailable

15

Toro 631024

Shaft-Float

$

$

Currently unavailable

16

Toro 631700

Bowl Float

$

$

Currently unavailable

21

Toro 631334

Gasket-Bowl

$

$

Currently unavailable

22

Toro 632071

Nut-Bowl

$

$

Currently unavailable

25

Toro 631028

O Ring-Bowl, Float

$

$

Currently unavailable

26

Toro 631807

Fitting-Fuel

$

$

Currently unavailable

1

Toro 590599A

Pin, Spring (Incl. Ref. #7)

$

$

Currently unavailable

2

Toro 590600

Washer

$

$

Currently unavailable

3

Toro 590615

Retainer

$

$

Currently unavailable

4

Toro 590601

Washer

$

$

Currently unavailable

5

Toro 590598

Brake Spring

$

$

Currently unavailable

6

Toro 590616

Dog-Starter

$

$

Currently unavailable

7

Toro 590617

Spring-Dog

$

$

Currently unavailable

8

Toro 590618

Pulley

$

$

Currently unavailable

9

Toro 590619

Rewind Spring

$

$

Currently unavailable

10

Toro 590620

Cover-Spring

$

$

Currently unavailable

11

Toro 590622

Housing-Starter

$

$

Currently unavailable

12

Toro 590535

Rope-Starter (98 cut to length)

$

$

Currently unavailable

13

Toro 590452

Handle-Starter

$

$

Currently unavailable
