205310x92A - Murray 20" Walk-Behind Mower (2002) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

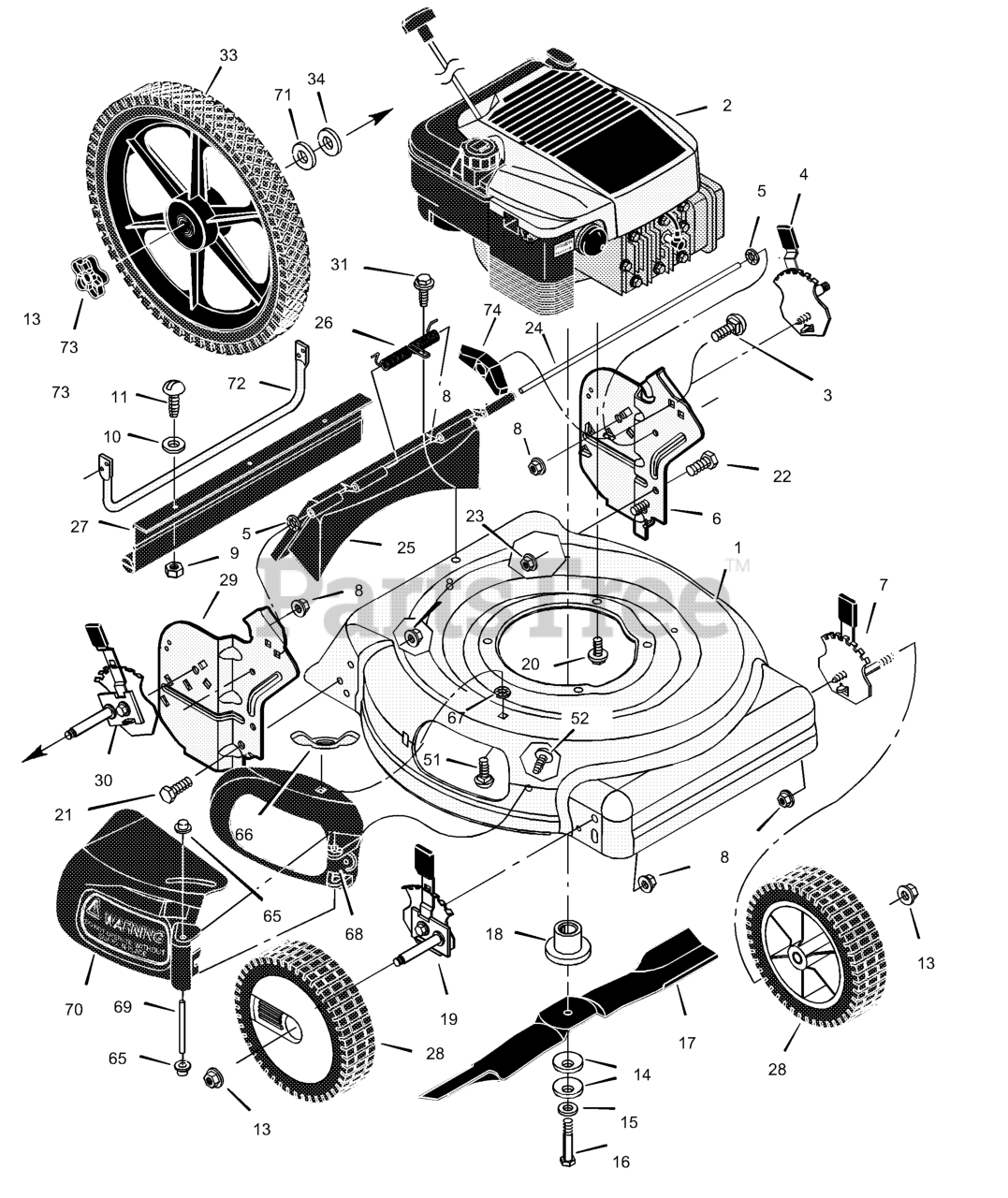

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 672896E549

Housing

$

$

Currently unavailable

2

Engine *

$

$

Not available

3

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

4

Murray 672607MA

Adjuster, Left Rear Height

$19.99

$

Usually ships in 2-12 days

0

5

Murray 028X49MA

Push On Cap

Note: (Included with Ref. No. 25)

$3.99

$

In Stock, Qty 13

0

6

Murray 1101245E549

Bracket, Left Handle

$

$

Currently unavailable

7

Murray 672601MA

Adjuster, Left Front Height

$87.99

$

Usually ships in 2-12 days

0

8

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 15X102MA

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

10

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

11

Murray 004X21MA

Screw

$3.99

$

Usually ships in 2-12 days

0

12

Murray 043615MA

Hub Cap

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

13

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

16

Murray 01X153MA

Bolt

$4.49

$

Usually ships in 2-12 days

0

17

Murray 672763E701MA

Blade

$26.99

$

In Stock, only 4 left!

0

18

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

19

Murray 672600MA

Adjuster, Right Front Height

$82.99

$

In Stock, only 1 left!

0

20

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

21

Murray 001X85MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

22

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

22

Murray 17X146MA

Washer

$5.49

$

Usually ships in 2-12 days

0

23

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

24

Murray 215X17 Z

Rod, Pivot

Note: (Included with Ref. No. 25)

$

$

Currently unavailable

25

Murray 672610

Door, Rear

$11.99

$

Usually ships in 2-12 days

0

26

Murray 166X44MA

Spring

Note: (Included with Ref. No. 25)

$14.99

$

In Stock, only 3 left!

0

27

Murray 671969MA

Guard, Rear

$18.99

$

Usually ships in 2-12 days

0

28

Murray 672060MA

Wheel & Tire
(Superseded to 336545MA)

$33.99

$

In Stock, only 1 left!

0

29

Murray 1101244E549

Bracket, Right Handle

$

$

Not available

30

Murray 672606MA

Adjuster, Right Rear Height

$25.99

$

Usually ships in 2-12 days

0

31

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

33

Murray 672074MA

Wheel, Rear

$

$

Not available

34

Murray 0020X3MA

Washer

$4.49

$

In Stock, Qty 10

0

51

Murray 002X16MA

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

52

Murray 26X221MA

Screw

$3.49

$

Usually ships in 2-12 days

0

65

Murray 028X42MA

Push On Cap

Note: (Included with Ref. No. 70)

$3.99

$

Usually ships in 2-12 days

0

66

Murray 014X86MA

Wingnut
(Superseded to 703141)

$3.49

$

In Stock, Qty 12

0

67

UNKNOWN

$

$

Not available

68

Murray 671926

Bezel

Note: (Included with Ref. No. 70)

$

$

Not available

69

Murray 215X18 Z

Pin, Pivot

Note: (Included with Ref. No. 70)

$

$

Currently unavailable

70

Murray 672158MA

Deflector, Chute

$72.99

$

Usually ships in 2-12 days

0

71

Murray 017X91 Z

Washer

$

$

Currently unavailable

72

Murray 672737E701

Brace

$

$

Not available

73

Murray 672449MA

Knob

$5.99

$

In Stock, only 2 left!

0

74

Murray 071495MA

Knob

$4.99

$

In Stock, only 3 left!

0

--

Murray 48X703

Decal, 3n1 Combo

$

$

Currently unavailable

--

Murray 48X407MA

Decal, Warning/Cut Finger

$9.99

$

Usually ships in 2-12 days

0

--

Murray 48X1029

Decal, Quantum 6

$

$

Currently unavailable

--

Murray F-020400L

Instruction Book

$

$

Currently unavailable
