20550 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1974) FRONT WHEEL AND PIVOT ARM ASSEMBLY MODEL NOS. 20550 AND 20660 Parts Diagram

Walk-Behind Mower

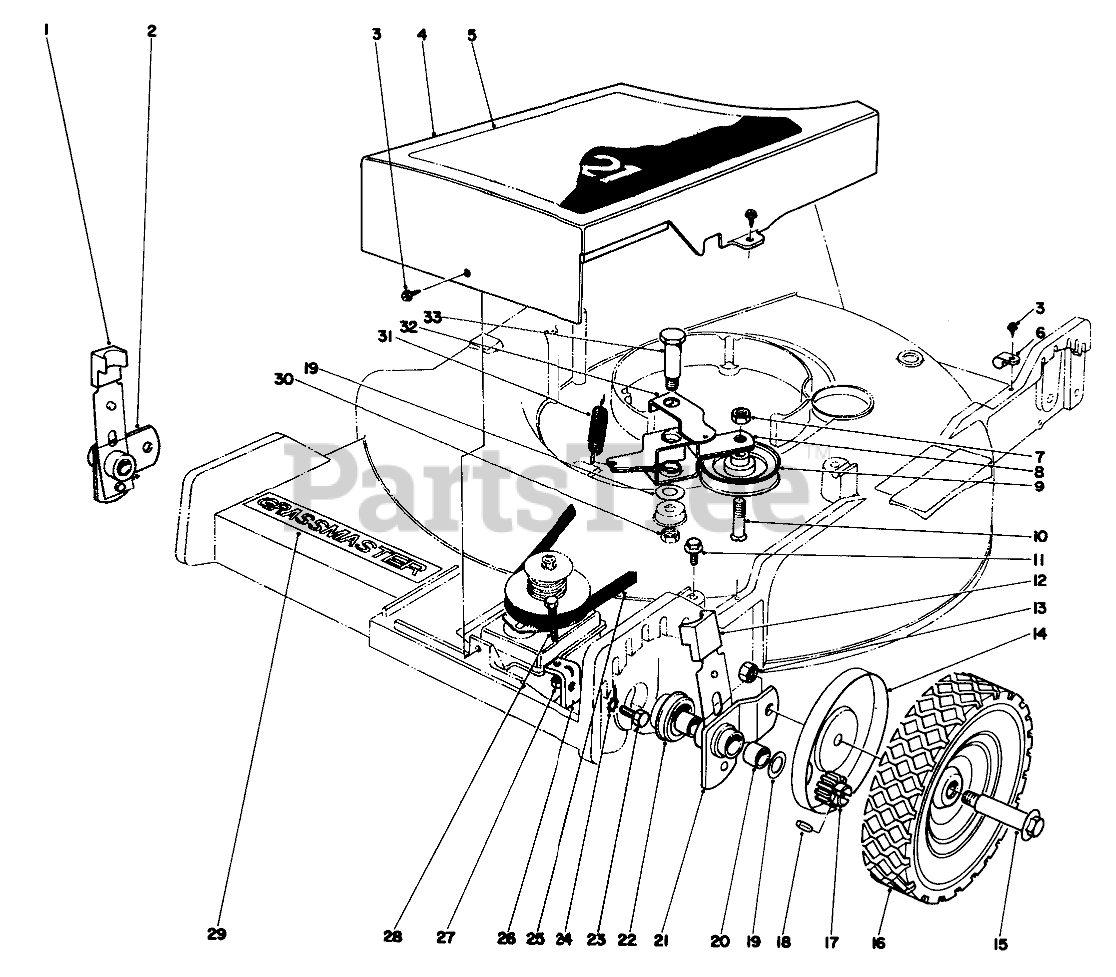

FRONT WHEEL AND PIVOT ARM ASSEMBLY MODEL NOS. 20550 AND 20660 Parts Diagram

  • Title

1

Toro 6-6230

Arm Knob
(Superseded to 25-7740)

$4.99

$

In Stock, Qty 12

0

2

Toro 23-0740

Pivot Arm (Incl. Ref. #20)

$

$

Not available

3

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 23-0510

Belt Cover

$

$

Not available

5

Toro 23-0840

Decal Belt Cover

$

$

Currently unavailable

6

Toro 2412-52

CLAMP-NYLON

$

$

Not available

7

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

8

Toro 23-0440

Idler Bracket

$

$

Currently unavailable

9

Toro 23-0570

V-GROOVE IDLER PULLEY

$

$

Not available

10

Toro 23-0850

Screw Low Head

$

$

Currently unavailable

11

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

12

Toro 6-6220

Arm Knob

$

$

Currently unavailable

13

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

14

Toro 23-0280

WHEEL COVER

$

$

Not available

15

Toro 3-2652

Bolt

$

$

Not available

16

Toro 12-2610

Wheel & Tire
(Superseded to 11-1279)

$

$

Not available

17

Toro 18-9690

Pinion
(Superseded to 99-2532)

$13.99

$

Usually ships in 3-6 days

0

18

Toro 3284-3

PIN-GROOVED

$2.99

$

In Stock, Qty 12

0

19

Toro 18-9810

WASHER-THRUST

$9.49

$

In Stock, only 2 left!

0

20

Toro 256-1

BUSHING

$28.99

$

In Stock, only 2 left!

0

21

Toro 23-0750

Pivot Arm (Incl. Ref. #20)

$

$

Not available

22

Toro 23-0380

End Cap
(Superseded to 36-9040)

$11.99

$

In Stock, only 1 left!

0

23

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

24

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

25

Toro 23-0220

V-BELT

$24.99

$

Usually ships in 3-6 days

0

26

Toro 23-0540

Bracket

$

$

Currently unavailable

27

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

28

Toro 23-0640

Screw

$

$

Currently unavailable

29

Toro 23-0930

Decal Grassmaster

$

$

Currently unavailable

30

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

31

Toro 23-0530

TENSION SPRING

$

$

Not available

32

Toro 23-0100

Idler Bracket Lever

$

$

Currently unavailable

33

Toro 23-0310

SCREW-SHOULDER, HH

$24.99

$

Usually ships in 3-6 days

0

Toro 23-0700

Loose Parts Bag (Model 20550)

Note: Not illustrated

$

$

Currently unavailable

Toro 23-0690

Loose Parts Bag (Model 20660)

Note: Not illustrated

$

$

Currently unavailable
