20550 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1974) HOUSING ASSEMBLY MODEL 20550 AND 20660 Parts Diagram

Walk-Behind Mower

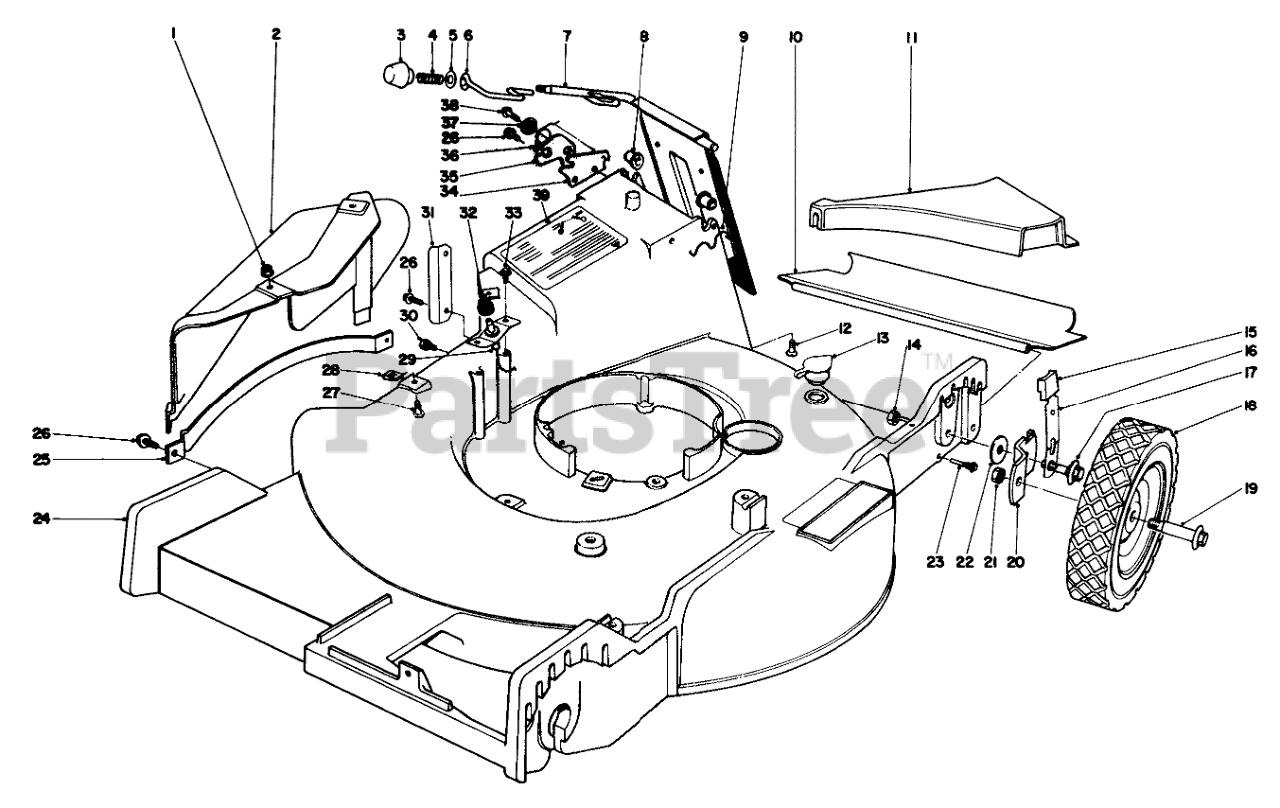

HOUSING ASSEMBLY MODEL 20550 AND 20660 Parts Diagram

  • Title

1

Toro 32128-14

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

2

Toro 23-0180

DEFLECTOR

$127.99

$

Usually ships in 3-6 days

0

3

Toro 233-37

KNOB

$31.99

$

Usually ships in 3-6 days

0

4

Toro 23-0920

COMPRESSION SPRING

$8.99

$

Usually ships in 3-6 days

0

5

Toro 23-1120

WASHER

$9.99

$

Usually ships in 3-6 days

0

6

Toro 23-0940

DOOR LATCH

$

$

Not available

7

Toro 23-0990

Door Handle

$

$

Not available

8

Toro 23-0880

BUSHING-NYLON

$

$

Not available

9

Toro 23-0200

Door Retainer
(Superseded to 33-4830)

$

$

Not available

10

Toro 23-0560

REAR SAFETY SHIELD

$

$

Not available

11

Toro 23-0360

REAR INSERT

$

$

Not available

12

Toro 32144-17

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

13

Toro 6-4500

WASHOUT PLUG

$

$

Not available

14

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

15

Toro 6-6230

Arm Knob
(Superseded to 25-7740)

$4.99

$

In Stock, Qty 13

0

Toro 6-6220

Arm Knob

Note: Not illustrated

$

$

Currently unavailable

16

Toro 23-0400

SPRING ARM ASM

$

$

Not available

17

Toro 12-2440

PIVOT SCREW

$22.99

$

Usually ships in 3-6 days

0

18

Toro 12-2620

Wheel Assembly
(Superseded to 99-5256)

$

$

Not available

19

Toro 3-2652

Bolt

$

$

Not available

20

Toro 20-3190

PIVOT ARM PLATED

$

$

Not available

21

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

22

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

23

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

24

Toro 6-1789

Housing

$

$

Not available

25

Toro 23-0210

Bar Safety

$

$

Not available

26

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

27

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

28

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

29

Toro 23-0150

Deflector Switch (Incl. Ref. #32)

$

$

Not available

30

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

31

Toro 23-0140

Clip Retaining

$

$

Not available

32

Toro 12-4930

Boot Switch

$

$

Not available

33

Toro 32144-12

Screw

$

$

Not available

34

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

35

Toro 23-1190

Latch Safety
(Superseded to 42-4010)

$

$

Not available

36

Toro 23-1200

TORSION SPRING

$

$

Not available

37

Toro 23-1180

Latch Spacer

$

$

Not available

38

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

39

Toro 23-1280

Decal-Caution

$

$

Currently unavailable
