20555 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1970) 21" WHIRLWIND S.P.-FINGERTIP START Parts Diagram

Walk-Behind Mower

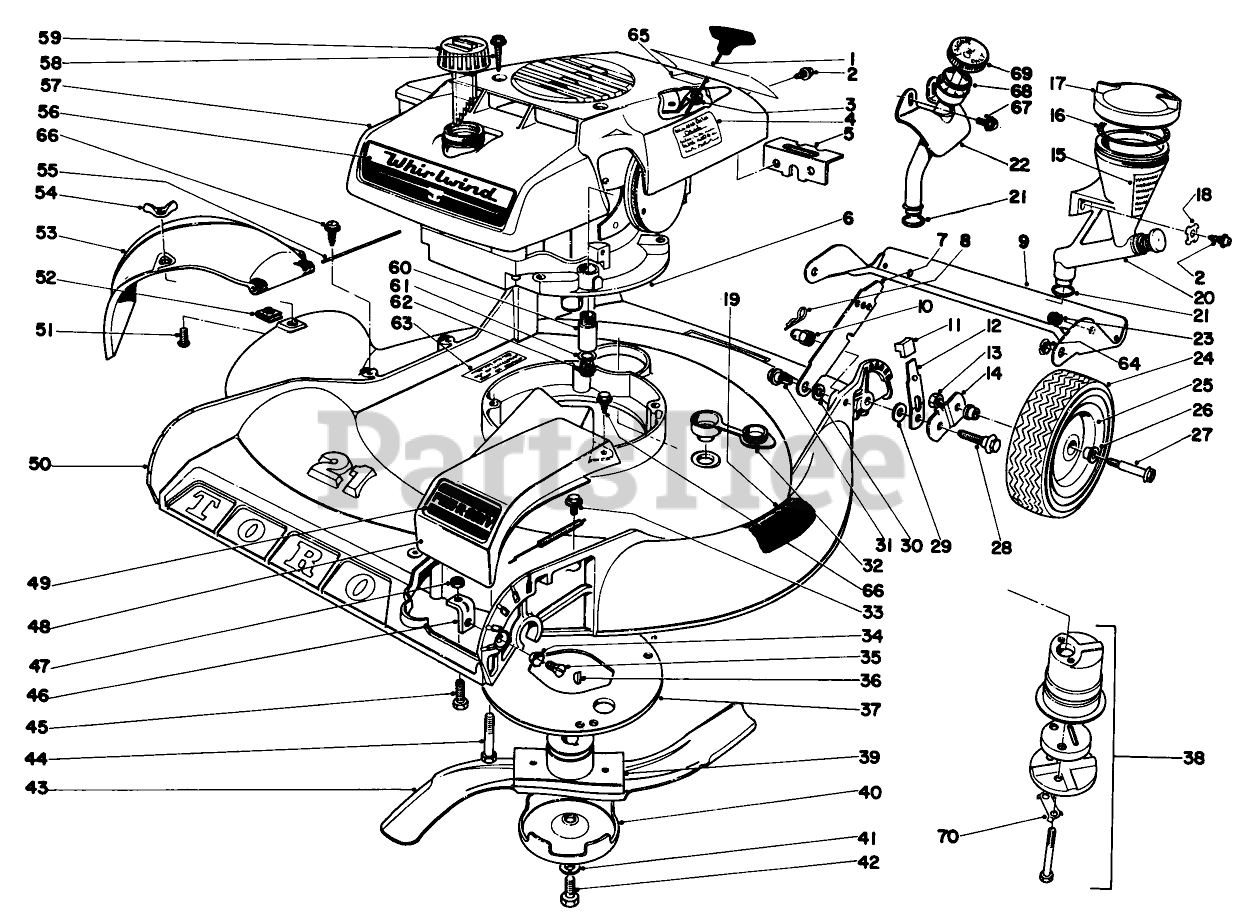

21" WHIRLWIND S.P.-FINGERTIP START Parts Diagram

  • Title

1

Toro 6-1260

Decal,Maintenance

$

$

Currently unavailable

2

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 16

0

3

Toro 5-3340

Bracket,Recoil

$

$

Currently unavailable

4

Toro 5-4706

Decal,Start

$

$

Currently unavailable

5

Toro 5-3307

Bracket

$

$

Currently unavailable

6

Toro 221-355

Engine (Used on Model 20555)

$

$

Currently unavailable

Toro 221-331

Engine (Used on Model 20227)

Note: Not illustrated

$

$

Currently unavailable

7

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

8

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

9

Toro 4-8889

Safety Shield, Rear

$

$

Currently unavailable

10

Toro 3-6482

Nut
(Superseded to 12-2080)

$22.99

$

Usually ships in 3-6 days

0

11

Toro 5-0656

Knob

$

$

Not available

12

Toro 5-3357

Spring Arm

$

$

Not available

13

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

14

Toro 5-4471

Pivot Arm

$

$

Currently unavailable

15

Toro 5-2947

Decal, Reservoir

$

$

Currently unavailable

16

Toro 5-1391

"O" Ring

$

$

Not available

17

Toro 3-8429

Cap, Reservoir (Incl. Ref. 16)(Used on Model 20227)

$

$

Currently unavailable

18

Toro 3290-261

Washer

$

$

Currently unavailable

19

Toro 5-2046

Pad

$

$

Currently unavailable

20

Toro 5-0625

Reservoir, Oil

$

$

Not available

21

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 16

0

22

Toro 6-0470

Oiler Tube

$

$

Not available

23

Toro 5-6450

SKID BUTTON

$

$

Not available

24

Toro 4-2600

8 TIRE

$

$

Not available

25

Toro 3-7350

Wheel Assy. (Incl. Ref. No.26)

$

$

Not available

26

Toro 5-4504

FLANGE BUSHING

$

$

Not available

27

Toro 5-4503

Wheel Bolt

$

$

Currently unavailable

28

Toro 5-3351

Pivot Screw
(Superseded to 12-2440)

$22.99

$

Usually ships in 3-6 days

0

29

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

30

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

31

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

32

Toro 5-0655

Washer Plug
(Superseded to 6-4500)

$

$

Not available

33

Toro 32140-69

Screw
(Superseded to 32144-11)

$7.99

$

In Stock, Qty 8

0

34

Toro 3255-12

Lockwasher

$

$

Not available

35

Toro 32108-20

SCREW

$0.99

$

Usually ships in 3-6 days

0

36

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

37

Toro 3-7626

Grass Guard

$

$

Not available

38

Toro 2-9329

Muffler
(Superseded to 5-4769)

$54.99

$

Usually ships in 3-6 days

0

39

Toro 3-7286

BLADE RETAINER WA

$182.99

$

Usually ships in 3-6 days

0

40

Toro 5-9530

ANTI-SCALP CUP

$

$

Not available

41

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

42

Toro 3-5246

SPECIAL SCREW

$

$

Not available

43

Toro 3-6286

Blade

$

$

Not available

44

Toro 32140-49

Screw
(Superseded to 11-0580)

$16.99

$

Usually ships in 3-6 days

0

45

Toro 3-7281

SCREW

$

$

Not available

46

Toro 3-7278

ADJ BRACKET

$

$

Not available

47

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

48

Toro 5-3305

Guard, Belt

$

$

Currently unavailable

49

Toro 5-3303

Decal

$

$

Currently unavailable

50

Toro 5-3324

Housing

$

$

Currently unavailable

51

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

52

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

53

Toro 5-3311

Deflector
(Superseded to 71-8640)

$

$

Not available

54

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

55

Toro 3-2644

HINGE PIN

$

$

Not available

56

Toro 5-3304

Decal

$

$

Currently unavailable

57

Toro 5-9550

Shroud

$

$

Currently unavailable

58

Toro 32104-88

SCREW-HWH

$

$

Not available

59

Toro 5-3460

Gas Cap
(Superseded to 42-0682)

$

$

Not available

60

Toro 3-0761

Extension Oil Drain

$

$

Currently unavailable

61

Toro 28833

Gasket-Oil Drain

Note: Obtain from your local Lauson dealer

$

$

Currently unavailable

62

Toro 27244

Plug Oil Drain

Note: Obtain from your local Lauson dealer

$

$

Currently unavailable

63

Toro 3-7643

Decal
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

64

Toro 256-194

Nyliner

$

$

Currently unavailable

65

Toro 5-4752

Decal-Warning

$

$

Not available

66

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 16

0

Toro 4-7999

Loose Parts Kit (Used on Model 20227)

Note: Not illustrated

$

$

Currently unavailable

Toro 4-9479

Loose Parts Kit (Used on Model 20555)

Note: Not illustrated

$

$

Currently unavailable

Toro 5-9600

Container, Oil

Note: Not illustrated

$

$

Currently unavailable

67

Toro 32140-66

Screw

$

$

Currently unavailable

68

Toro 237-75

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

69

Toro 5-4591

Dipstick

$

$

Currently unavailable

70

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

Toro 5-4472

Pivot Arm

Note: Not illustrated

$

$

Not available
