20558 - Troy-Bilt Super Pony Rear-Tine Tiller (SN: P80157 - P80408) TRANSMISSION HOUSING & SEALS/GASKET Parts Diagram

Super Pony Rear-Tine Tiller

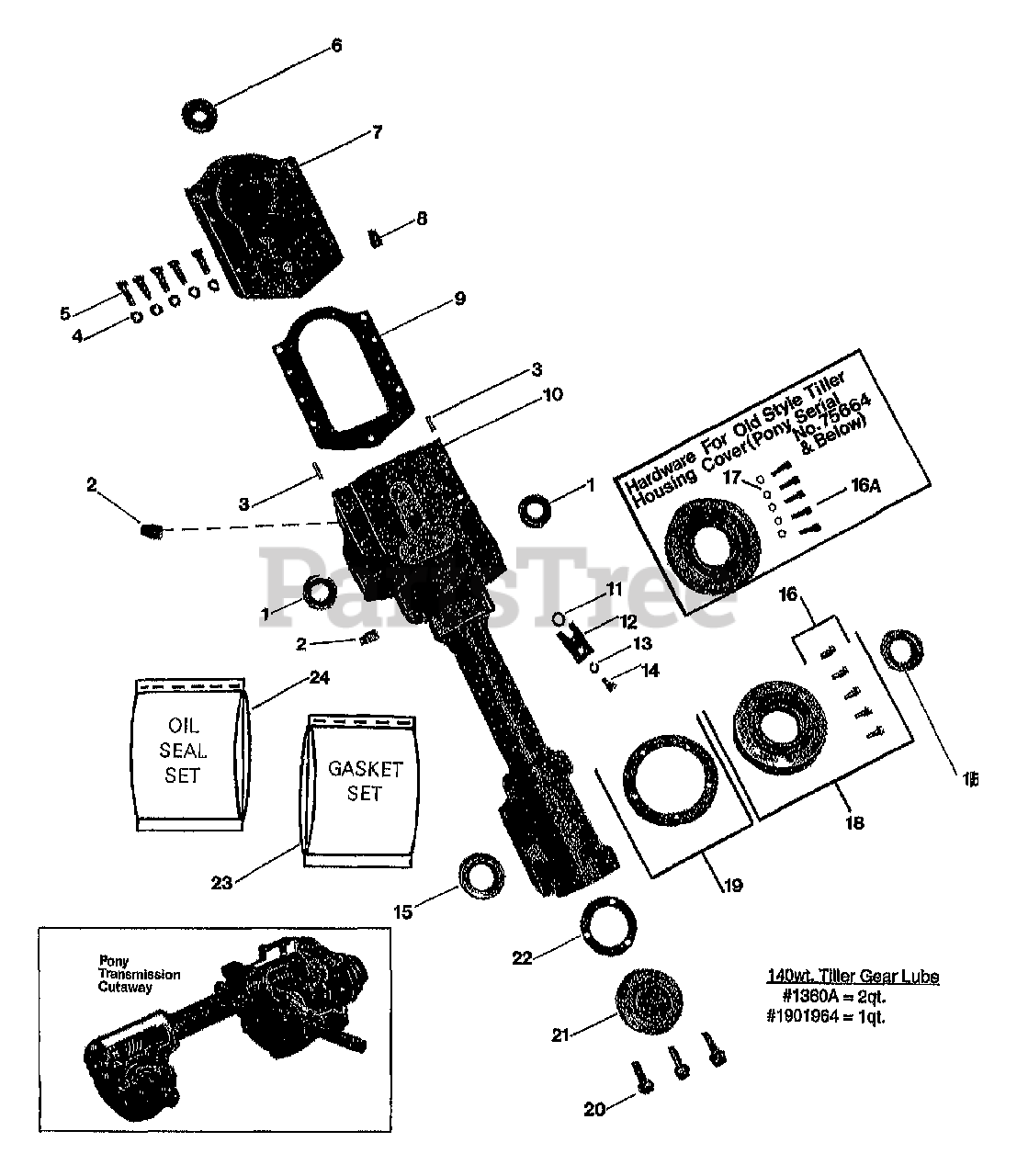

TRANSMISSION HOUSING & SEALS/GASKET Parts Diagram

  • Title

1

Troy-Bilt 9609

SEAL-OIL WHEEL SHAFT

$

$

Currently unavailable

2

Troy-Bilt 9727

PLUG-PIPE 3/8"
(Superseded to 737-04202)

$7.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 9321

PIN-DRIVE .25 X .75 (INCL. WITH TRANSMISSION CASE PART NO. 20330)

$

$

Currently unavailable

4

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

5

Troy-Bilt 9704

SCR-HH 5/16-18X1.0 G5 ZP

$

$

Currently unavailable

6

Troy-Bilt 9610

SEAL-OIL .75 ID (INSTALLS IN COVER)( FORMERLY #611)

$

$

Currently unavailable

7

MTD 20301

COVER-TRANS MACH

$

$

Not available

8

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$4.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 20338

GASKET-TRANS COVER

$

$

Currently unavailable

10

Troy-Bilt 20330

CASE-TRANS (WITHOUT COVERS, SHAFTS, GEARS. CALL FACTORY FOR SERVICE HELP)

$

$

Currently unavailable

11

Troy-Bilt 9603

RING-O .625 X .438 (SEE PAGE 16, INDEX 13)

$

$

Currently unavailable

12

Troy-Bilt 20325

PLATE-FRICTION (SEE PAGE 16, INDEX 17)

$

$

Currently unavailable

13

Troy-Bilt 9910

WASHER-LK .25 ZP (SEE PAGE 16, INDEX 19)

$

$

Currently unavailable

14

Troy-Bilt 9743

SCR-HH 1/4-20X.5 GR5 YEL

$

$

Currently unavailable

15

Troy-Bilt 9602

SEAL-OIL TILLERSHAFT

$

$

Currently unavailable

16

Troy-Bilt 9780

SCR-HH 1/4-20X.625

$

$

Currently unavailable

16A

Troy-Bilt 9718

SCR-HXSKT 1/4-20X.625

$

$

Currently unavailable

17

Troy-Bilt 9911

WASHER-LK .25 HI-COLLAR
(Superseded to GW-9911)

$6.49

$

In Stock, only 1 left!

0

18

Troy-Bilt 1872

COVER-W/SCRS(TLR) (9780)

$

$

Currently unavailable

19

Troy-Bilt 1129-1

GASKET-TILLER COVER (AR)
(Superseded to GW-1129-1099)

$9.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 1129-2

GASKET-TILLER COVER (AR)
(Superseded to GW-1129-2099)

$9.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 9773

SCR-HFLK 1/4-20X.875

$

$

Currently unavailable

21

Troy-Bilt 1115

CAP-REAR #1115

$

$

Currently unavailable

22

Troy-Bilt 1124-2

GASKET-BRG COVER (AR)
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 1345

TRANS GASKET SET-PONY (AR)

$

$

Currently unavailable

24

Troy-Bilt 1346A

OIL SEAL SET-PONY (AR)

$

$

Currently unavailable

Troy-Bilt 1360A

OIL GEAR LUBE 2 QT 140WT

$

$

Currently unavailable

Troy-Bilt 1901964

OIL GEAR LUBE 1 QT 140WT

$

$

Currently unavailable
