20560 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

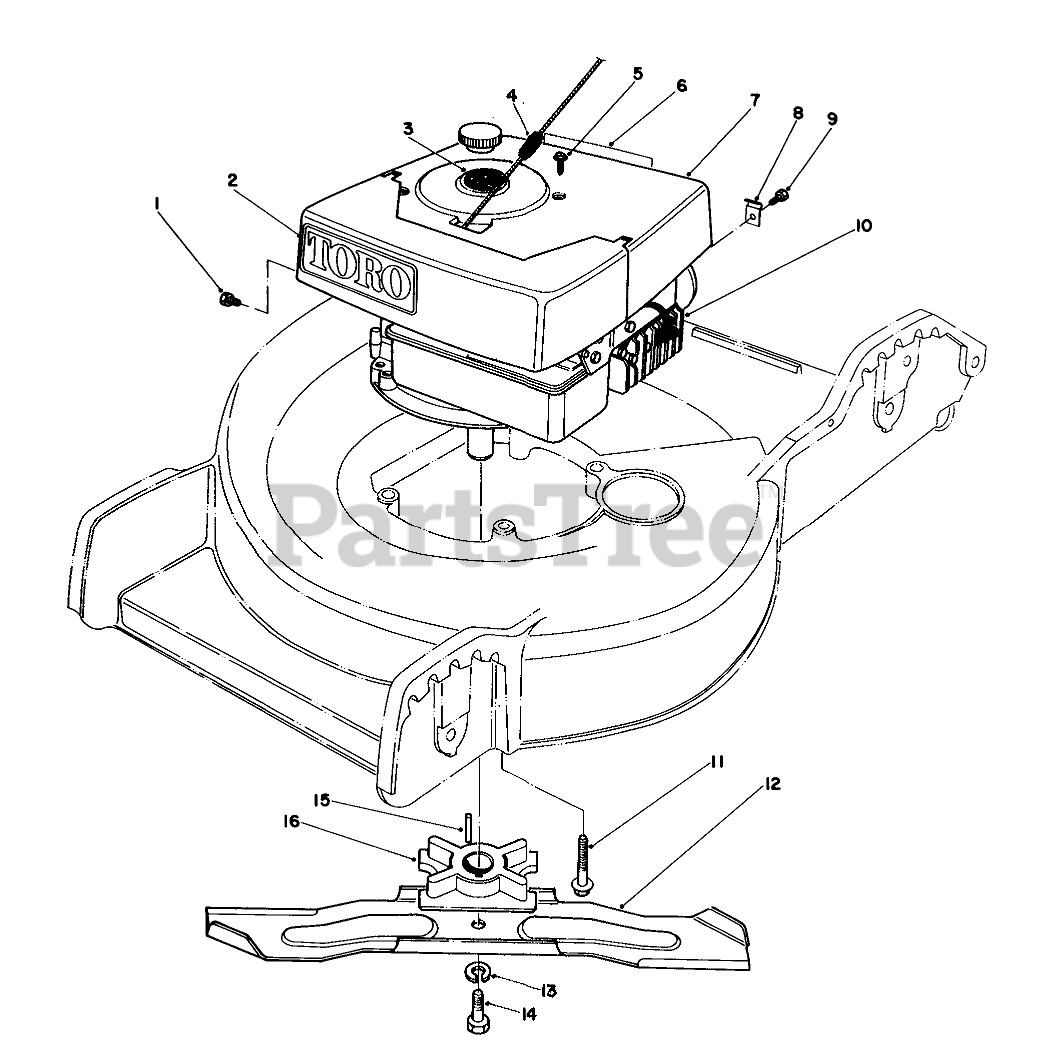

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 2210-250

SCREW-HH

$

$

Not available

2

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

3

Toro 38-0790

Decal-Shroud

$

$

Not available

4

Toro 2210-252

ROPE STOP

$

$

Not available

5

Toro 32144-60

TAPPING SCREW

$

$

Not available

6

Toro 46-8300

Decal-Danger
(Superseded to 49-1770)

$

$

Not available

7

Toro 46-3670

Shroud-Assembly

$

$

Not available

8

Toro 2412-38

Clip

$

$

Not available

9

Toro 2210-125

Screw-Clamp

$

$

Currently unavailable

10

Toro 221-738

Engine

$

$

Currently unavailable

11

Toro 11-0581

3/8-16 X 2 CAPSCREW

$3.99

$

Usually ships in 3-6 days

0

12

Toro 33-0490

Blade
(Superseded to 33-0490-03)

$42.99

$

In Stock, only 1 left!

0

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

14

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

15

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

16

Toro 46-4870

Blade Retainer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0

Toro 11-4519

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
