20560 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Engine Assembly Parts Diagram

Walk-Behind Mower

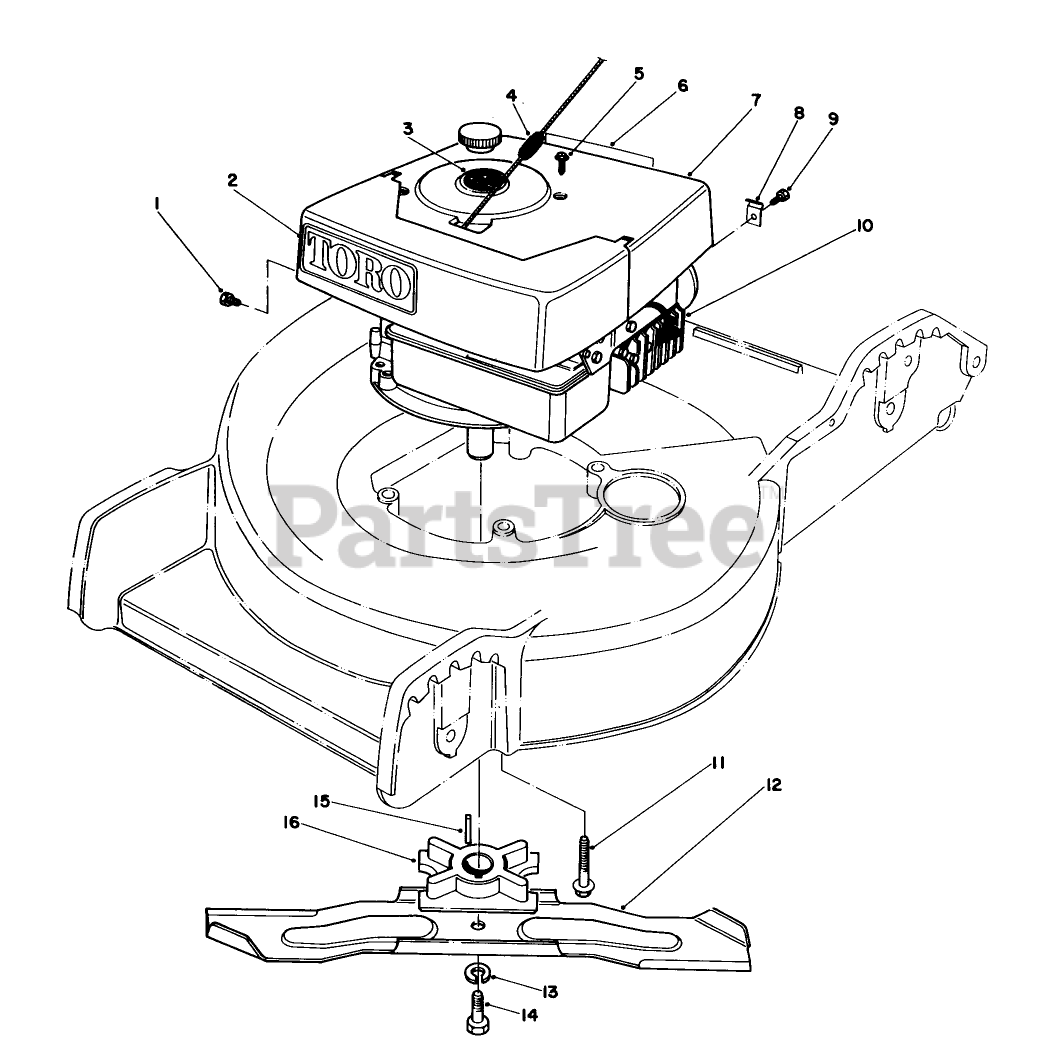

Engine Assembly Parts Diagram

  • Title

1

Toro 2210-250

DISCONTINUED

$

$

Not available

2

Toro 44-0510

See Supercession: 70-2200
(Superseded to 70-2200)

$5.99

$

In Stock, only 2 left!

0

3

Toro 38-0790

DISCONTINUED

$

$

Not available

4

Toro 2210-252

DISCONTINUED

$

$

Not available

5

Toro 32144-60

DISCONTINUED

$

$

Not available

6

Toro 46-8300

See Supercession: 49-1770
(Superseded to 49-1770)

$

$

Not available

7

Toro 46-3670

DISCONTINUED

$

$

Not available

8

Toro 2412-38

DISCONTINUED

$

$

Not available

9

Toro 2210-125

Screw-Clamp

$

$

Currently unavailable

10

Toro 221-738

Engine

$

$

Currently unavailable

11

Toro 11-0581

3/8-16 X 2 CAPSCREW

$

$

Not available

12

Toro 33-0490

See Supercession: 33-0490-03
(Superseded to 33-0490-03)

$45.99

$

Usually ships in 3-6 days

0

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

14

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 12

0

15

Toro 27-8590

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

16

Toro 46-4870

See Supercession: 49-7890
(Superseded to 49-7890)

$

$

Not available

Toro 11-4519

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
