20560 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE BRIGGS & STRATTON MODEL NO. 92908-3196-01 Parts Diagram

Walk-Behind Mower

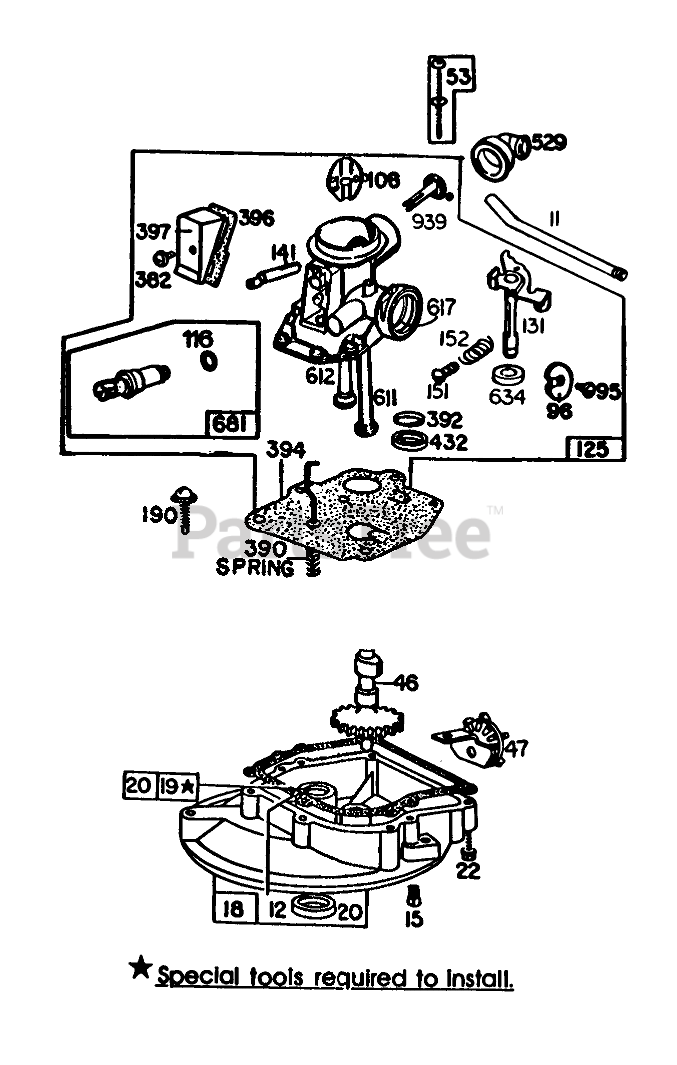

ENGINE BRIGGS & STRATTON MODEL NO. 92908-3196-01 Parts Diagram

  • Title

11

Briggs & Stratton 231272

Tube-Breather
(Superseded to 691245)

$8.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 270833

Gasket-Crankcase-.015" thick
(Superseded to 692218)

Note: Included in Gasket Set he No 298989.

$

$

Not available

Briggs & Stratton 270895

Gasket-Crankcase .005"

Note: Included in Gasket Set he No 298989.

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 270896

Gasket-Crankcase .009"

Note: Included in Gasket Set he No 298989.

$5.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 91084

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 17

0

18

Briggs & Stratton 395384

Sump-Oil
(Superseded to 590569)

$104.99

$

In Stock, Qty 7

0

19

Briggs & Stratton 293709

Bushing-Oil Base

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391483

Seal-Oil
(Superseded to 391483S)

$5.99

$

In Stock, Qty 9

0

22

Briggs & Stratton 93032

Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 394800

Gear-Cam
(Superseded to 793149)

$74.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 294652

Oil Slinger Gear & Bracket
(Superseded to 698690)

$15.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 391982

Screw-Carb. Mtg.

$4.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

96

Briggs & Stratton 211237

Valve

$8.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 280370

Valve-Choke

$5.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280203

O-Ring
(Superseded to 691898)

$5.49

$

In Stock, only 4 left!

0

125

Briggs & Stratton 395699

Carburetor Assembly
(Superseded to 395957)

$

$

Not available

131

Briggs & Stratton 299977

Shaft & Lever-Throttle

$15.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 68908

Shaft-Choke

$14.99

$

Usually ships in 2-12 days

0

151

Briggs & Stratton 93524

Screw-Rd. Hd

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260746

Spring-Throttle Adj
(Superseded to 691783)

$7.99

$

In Stock, only 2 left!

0

190

Briggs & Stratton 93440

Screw-Fuel Tank
(Superseded to 692200)

$

$

Not available

382

Briggs & Stratton 93545

Screw-Choke Link Cover

$3.49

$

Usually ships in 2-12 days

0

390

Briggs & Stratton 261249

Spring-Diaphragm

$5.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 260455

Spring-Fuel Pump
(Superseded to 692206)

$4.49

$

In Stock, Qty 5

0

394

Briggs & Stratton 391643

Diaphragm
(Superseded to 391681)

$19.99

$

In Stock, only 2 left!

0

396

Briggs & Stratton 270571

Gasket-Choke Link Cover

$6.99

$

In Stock, only 2 left!

0

397

Briggs & Stratton 211678

Cover-Choke Link

$3.49

$

Usually ships in 2-12 days

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, Qty 20+

0

529

Briggs & Stratton 280368

Grommet-Breather

$

$

Not available

611

Briggs & Stratton 297219

Pipe Fuel (long)
(Superseded to 297219S)

$8.99

$

Usually ships in 2-12 days

0

612

Briggs & Stratton 296811

Pipe-Fuel
(Superseded to 497413S)

$7.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 16

0

643

Briggs & Stratton 280374

Cup-Support

$7.49

$

In Stock, only 1 left!

0

681

Briggs & Stratton 395508

Needle Valve Kit

$8.99

$

Usually ships in 2-12 days

0

939

Briggs & Stratton 395665

Choke Shaft Assy.

$14.99

$

Usually ships in 2-12 days

0
