20560 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE BRIGGS & STRATTON MODEL NO. 92908-3196-01 Parts Diagram

Walk-Behind Mower

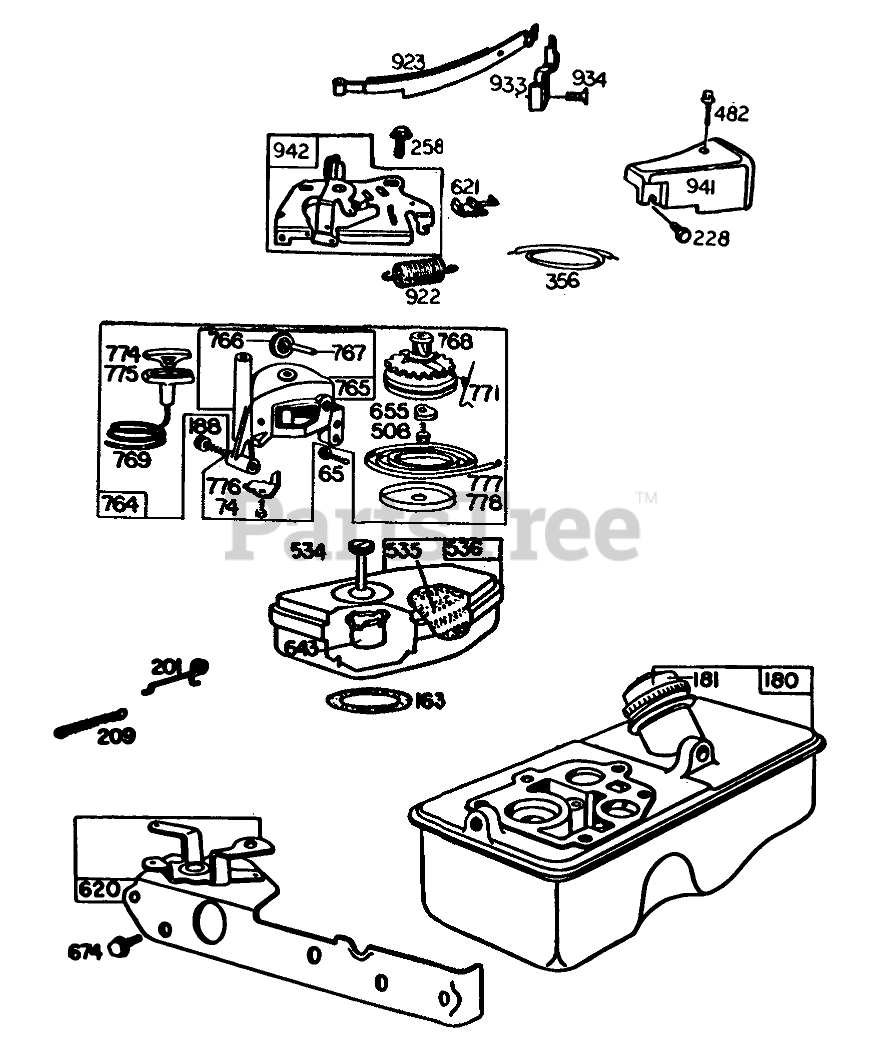

ENGINE BRIGGS & STRATTON MODEL NO. 92908-3196-01 Parts Diagram

  • Title

65

Briggs & Stratton 93587

Screw-Starter Mounting
(Superseded to 691083)

$5.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

163

Briggs & Stratton 271139

Gasket-Air Cleaner
(Superseded to 271139S)

$3.99

$

In Stock, Qty 12

0

180

Briggs & Stratton 391694

Tank Assembly-Fuel
(Superseded to 495912)

$

$

Not available

181

Briggs & Stratton 298425

Cap-Fuel Tank
(Superseded to 493982S)

$4.99

$

In Stock, only 4 left!

0

188

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

201

Briggs & Stratton 261027

Link-Governor

$5.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 261034

Spring-Governor

$5.99

$

Usually ships in 2-12 days

0

228

Briggs & Stratton 93758

Screw-Sem
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

258

Briggs & Stratton 94018

Screw
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

356

Briggs & Stratton 298479

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

508

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, only 2 left!

0

534

Briggs & Stratton 93374

Srew-Air Cleaner

$5.99

$

In Stock, only 1 left!

0

535

Briggs & Stratton 270579

Element Air Cleaner
(Superseded to 270579S)

$5.99

$

In Stock, Qty 8

0

536

Briggs & Stratton 390055

Cleaner Assembly-Air

$16.99

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 299974

Plate Carburetor Control

$38.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

643

Briggs & Stratton 280374

Cup-Support

$7.49

$

Usually ships in 2-12 days

0

655

Briggs & Stratton 222057

Anchor-Spring

$6.99

$

Usually ships in 2-12 days

0

674

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 4 left!

0

764

Briggs & Stratton 396340

Starter Assembly-Vertical Pull

$

$

Not available

765

Briggs & Stratton 395914

Housing-Vertical Pull Starter

$55.99

$

Usually ships in 2-12 days

0

766

Briggs & Stratton 280022

Duct Body

$11.99

$

Usually ships in 2-12 days

0

767

Briggs & Stratton 231048

Pin-Small Rope Pulley

$3.49

$

Usually ships in 2-12 days

0

768

Briggs & Stratton 396363

Pulley and Gear Assembly-Starter

$9.99

$

Usually ships in 2-12 days

0

769

Toro 66684

Rope-Vertical Pull Starter (95") (cut to suit)

$

$

Currently unavailable

771

Briggs & Stratton 299961

Clip-Starter

$6.49

$

Usually ships in 2-12 days

0

774

Briggs & Stratton 280121

Insert-Starter Handle
(Superseded to 393152)

$4.99

$

In Stock, only 3 left!

0

775

Briggs & Stratton 280036

Grip-Starter Rope
(Superseded to 393152)

$4.99

$

In Stock, only 3 left!

0

776

Briggs & Stratton 222049

Guide Rope

$3.99

$

Usually ships in 2-12 days

0

777

Briggs & Stratton 390066

Spring-Starter

$20.99

$

In Stock, only 1 left!

0

778

Briggs & Stratton 280021

Cover-Starter

$6.49

$

Usually ships in 2-12 days

0

922

Briggs & Stratton 261647

Spring-Brake
(Superseded to 691809)

$8.49

$

Usually ships in 2-12 days

0

923

Briggs & Stratton 394867

Band Brake Assy.

$39.99

$

Usually ships in 2-12 days

0

933

Briggs & Stratton 223187

Pivot-Band Brake
(Superseded to 690428)

$5.99

$

In Stock, only 1 left!

0

934

Briggs & Stratton 94037

Screw-Brake Pivot
(Superseded to 690324)

$3.49

$

Usually ships in 2-12 days

0

941

Briggs & Stratton 280395

Cover-Linkage

$

$

Not available

942

Briggs & Stratton 395393

Bracket and Lever Assy.

$

$

Not available
