20560 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

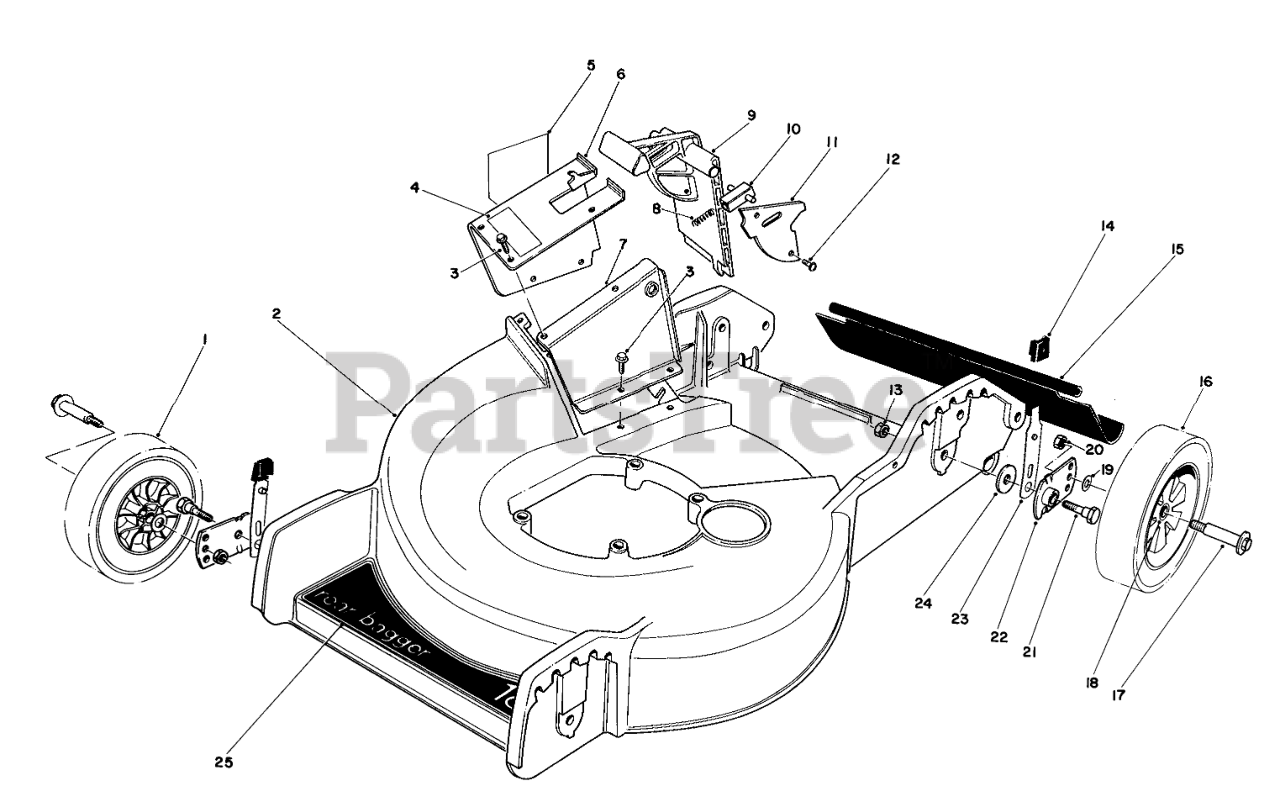

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 27-6210

Wheel & Tire Assembly (Incl. Ref. #18)

$

$

Not available

2

Toro 11-4059

Housing

$

$

Not available

3

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

4

Toro 47-6660

Decal-Door
(Superseded to 71-3410)

$

$

Not available

5

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

6

Toro 11-2849

Tunnel-Outer (Incl. Ref. #4 & 5)
(Superseded to 99-8011)

$

$

Not available

7

Toro 33-0430

Inner Tunnel

$

$

Not available

8

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

9

Toro 33-0410

Door Mulching
(Superseded to 33-0412)

$

$

Not available

10

Toro 47-5550

Door Latch
(Superseded to 47-5551)

$

$

Not available

11

Toro 33-0440

Cover Door
(Superseded to 33-0441)

$11.99

$

Usually ships in 3-6 days

0

12

Toro 32144-32

SCREW

$2.49

$

Usually ships in 3-6 days

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 11

0

15

Toro 33-2380

SHIELD - TRAILING

$59.99

$

Usually ships in 3-6 days

0

16

Toro 27-6200

Wheel & Tire Assembly (Incl . Ref. #18)

$

$

Not available

17

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

18

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

19

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

20

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

21

Toro 28-8880

PIVOT SCREW

$9.49

$

In Stock, only 2 left!

0

22

Toro 33-0400

PIVOT ARM ASSY

$33.99

$

Usually ships in 3-6 days

0

23

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

24

Toro 33-0390

PIVOT WASHER

$3.49

$

In Stock, only 2 left!

0

25

Toro 46-7920

DECAL-DECK

$

$

Not available
