20563 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

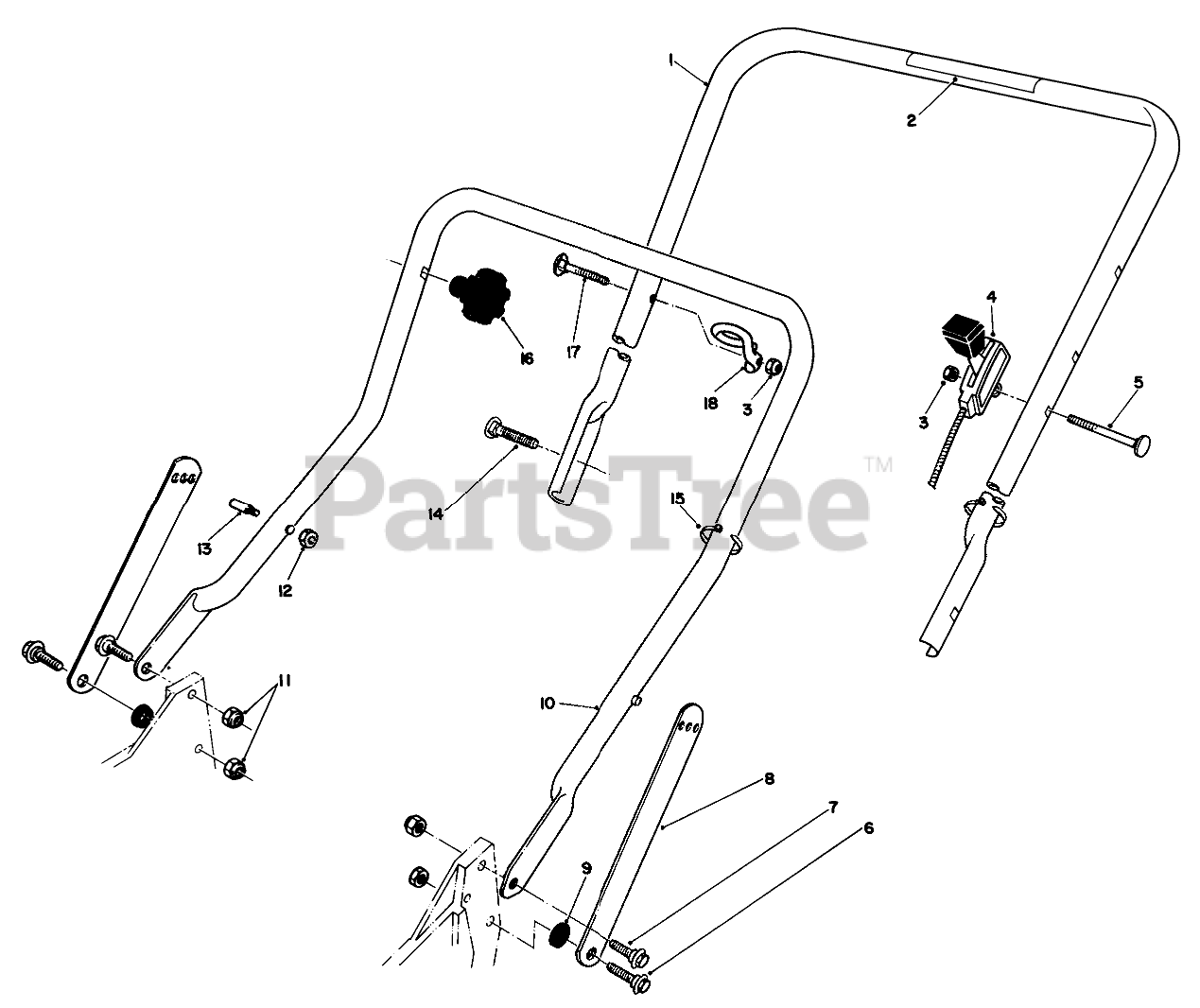

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 13-2319

HANDLE W/DECAL

$

$

Not available

2

Toro 63-8540

DECAL - HANDLE

$

$

Not available

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 76-3241

THROTTLE CONTROL

$

$

Not available

5

Toro 46-6430

SCREW-HANDLE

$11.99

$

Usually ships in 3-6 days

0

6

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

7

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 4 left!

0

8

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

9

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

10

Toro 43-1361

LOWER HANDLE ASM

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

13

Toro 49-2750

HANDLE PIN

$32.99

$

Usually ships in 3-6 days

0

14

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

16

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

17

Toro 46-6433

HANDLE SCREW

$11.99

$

Usually ships in 3-6 days

0

18

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 18

0
