20564 C - Toro Walk-Behind Mower, Electric (SN: 007000001 - 007999999) (1987)

Walk-Behind Mower, Electric

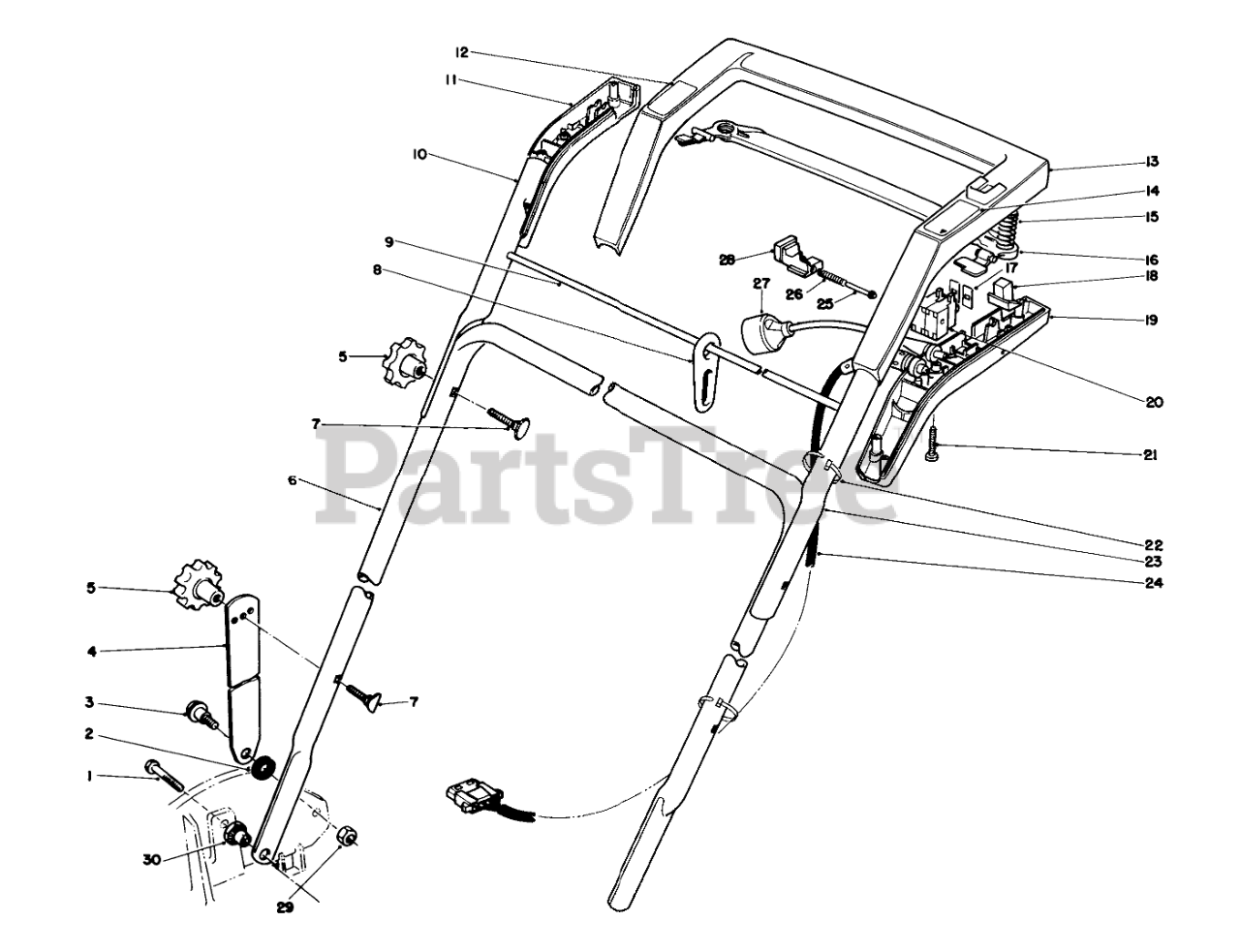

20564 C - Toro Walk-Behind Mower, Electric (SN: 007000001 - 007999999) (1987) > Parts Diagrams (5) > HANDLE ASSEMBLY

  • Title
322-6

1

SCREW-HH

Part# 322-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.09

3-3287

2

SPACER

Part# 3-3287

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

27-7211

3

SCREW-SHOULDER

Part# 27-7211

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.37

43-1370

4

Handle Latch

Part# 43-1370 (Superseded to 98-7138)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $17.17

19-4050

5

KNOB

Part# 19-4050

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.29

50-9920

6

LOWER HANDLE

Part# 50-9920

OEM Warranty Repair Part for Toro

Not available

17-9421

7

5/16-18 X 2 HNDLE SCREW

Part# 17-9421 (Superseded to 92-2260)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.92

50-9860

8

CORD MINDER

Part# 50-9860

OEM Warranty Repair Part for Toro

Not available

50-9850

9

CORD MINDER ROD

Part# 50-9850

OEM Warranty Repair Part for Toro

Not available

50-9940

10

UPPER HDLE TUBE RH

Part# 50-9940

OEM Warranty Repair Part for Toro

Not available

54-7830

11

RH GRIP COVER

Part# 54-7830

OEM Warranty Repair Part for Toro

Not available

62-3260

12

DECAL - SHOCK WARNING

Part# 62-3260

OEM Warranty Repair Part for Toro

Not available

12-7069

13

Grip-Handle (Incl. Ref. #12 & 14)

Part# 12-7069 (Superseded to 12-1099)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $81.87

62-3850

14

Decal-On-Off

Part# 62-3850

OEM Warranty Repair Part for Toro

Not available

34-1030

15

COMP SPRING

Part# 34-1030

OEM Warranty Repair Part for Toro

Not available

54-7810

16

SQUEEZE LEVER

Part# 54-7810

OEM Warranty Repair Part for Toro

Not available

55-4400

17

DUST COVER

Part# 55-4400

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $26.16

34-0320

18

SWITCH BUTTON

Part# 34-0320

OEM Warranty Repair Part for Toro

Not available

54-7820

19

LH GRIP COVER

Part# 54-7820

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.57

54-7800

20

ON/OFF SWITCH

Part# 54-7800

OEM Warranty Repair Part for Toro

Not available

32104-120

21

SCREW-PPH

Part# 32104-120

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.10

22

Cable Tie

Part#

Not available

50-9930

23

UPPER HDLE TUBE LH

Part# 50-9930

OEM Warranty Repair Part for Toro

Not available

50-9840

24

WIRE HARNESS

Part# 50-9840

OEM Warranty Repair Part for Toro

Not available

50-9570

25

BUTTON GUIDE

Part# 50-9570

OEM Warranty Repair Part for Toro

Not available

50-9590

26

COMPRESSION SPRING

Part# 50-9590

OEM Warranty Repair Part for Toro

Not available

42-0771

27

POWER SUPPLY CORD

Part# 42-0771

OEM Warranty Repair Part for Toro

Not available

54-7850

28

INTERLOCK BUTTON

Part# 54-7850

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.88

3296-29

29

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81

12-2080

30

HANDLE PIVOT NUT

Part# 12-2080

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.10

11-8559

Loose Parts

Part# 11-8559

OEM Warranty Repair Part for Toro

Not available
