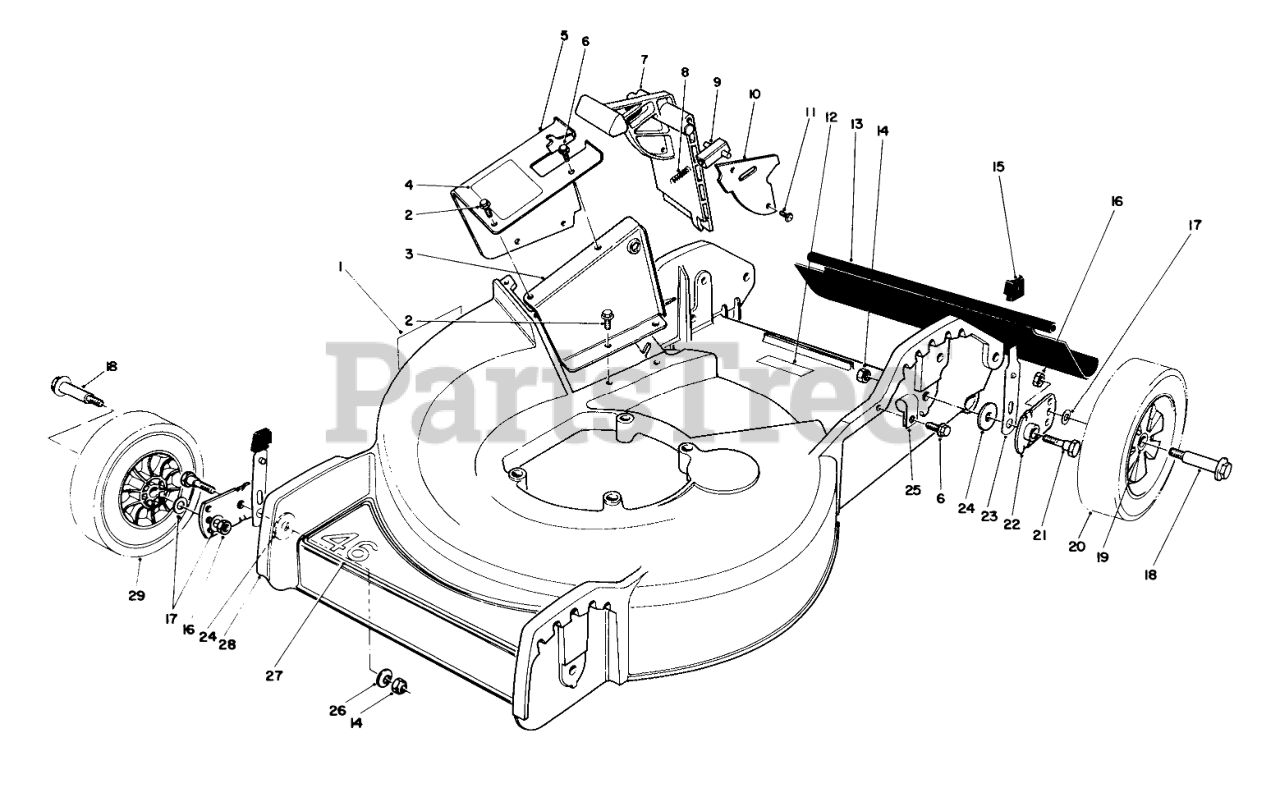

20564 C - Toro Walk-Behind Mower, Electric (SN: 007000001 - 007999999) (1987) > Parts Diagrams (5) > HOUSING ASSEMBLY

  • Title
62-3860

1

Decal Danger

Part# 62-3860 (Superseded to 93-6667)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.44

12-3270

2

SCREW

Part# 12-3270

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.52

49-8030

3

Tunnel-Inner

Part# 49-8030 (Superseded to 49-8030-01)

OEM Warranty Repair Part for Toro

Not available

62-4060

4

DECAL - DANGER

Part# 62-4060

OEM Warranty Repair Part for Toro

Not available

11-8409

5

Tunnel-Outer (Incl. Ref. #4)

Part# 11-8409 (Superseded to 13-2149)

OEM Warranty Repair Part for Toro

Not available

12-5450

6

SCREW

Part# 12-5450

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.84

33-0410

7

Door Mulching

Part# 33-0410 (Superseded to 33-0412)

OEM Warranty Repair Part for Toro

Not available

33-0450

8

SPRING-COMPRESSION, LATCH

Part# 33-0450

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.92

47-5550

9

Door Latch

Part# 47-5550 (Superseded to 47-5551)

OEM Warranty Repair Part for Toro

Not available

33-0440

10

Cover Door

Part# 33-0440 (Superseded to 33-0441)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.03

32144-32

11

SCREW

Part# 32144-32

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.67

40-2850

12

Decal

Part# 40-2850

OEM Warranty Repair Part for Toro

Not available

33-2380

13

SHIELD - TRAILING

Part# 33-2380

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.13

3296-29

14

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81

25-7740

15

KNOB-ARM

Part# 25-7740

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.46

52-3620

16

Nut

Part# 52-3620 (Superseded to 32153-11)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.93

40-1940

17

WASHER

Part# 40-1940

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

27-6230

18

BOLT-WHEEL

Part# 27-6230

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.47

27-6250

19

BUSHING

Part# 27-6250

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

27-6200

20

Wheel & Tire Assembly (Incl. Ref. #18)

Part# 27-6200

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $41.19

28-8880

21

PIVOT SCREW

Part# 28-8880

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.18

33-0400

22

PIVOT ARM ASSY

Part# 33-0400

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.36

25-8000

23

SPRING ARM ASM

Part# 25-8000

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $45.11

33-0390

24

PIVOT WASHER

Part# 33-0390

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.19

2412-89

25

CLAMP-R

Part# 2412-89

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.39

3290-456

26

WASHER-BELLEVILLE

Part# 3290-456

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.34

62-3200

27

DECAL - DECK

Part# 62-3200

OEM Warranty Repair Part for Toro

Not available

12-1089

28

HSG & CARTON

Part# 12-1089

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $645.03

27-6210

29

Wheel & Tire Assembly (Incl. Ref. #18)

Part# 27-6210

OEM Warranty Repair Part for Toro

Not available
