20564 C - Toro Walk-Behind Mower, Electric (SN: 007000001 - 007999999) (1987)

Walk-Behind Mower, Electric

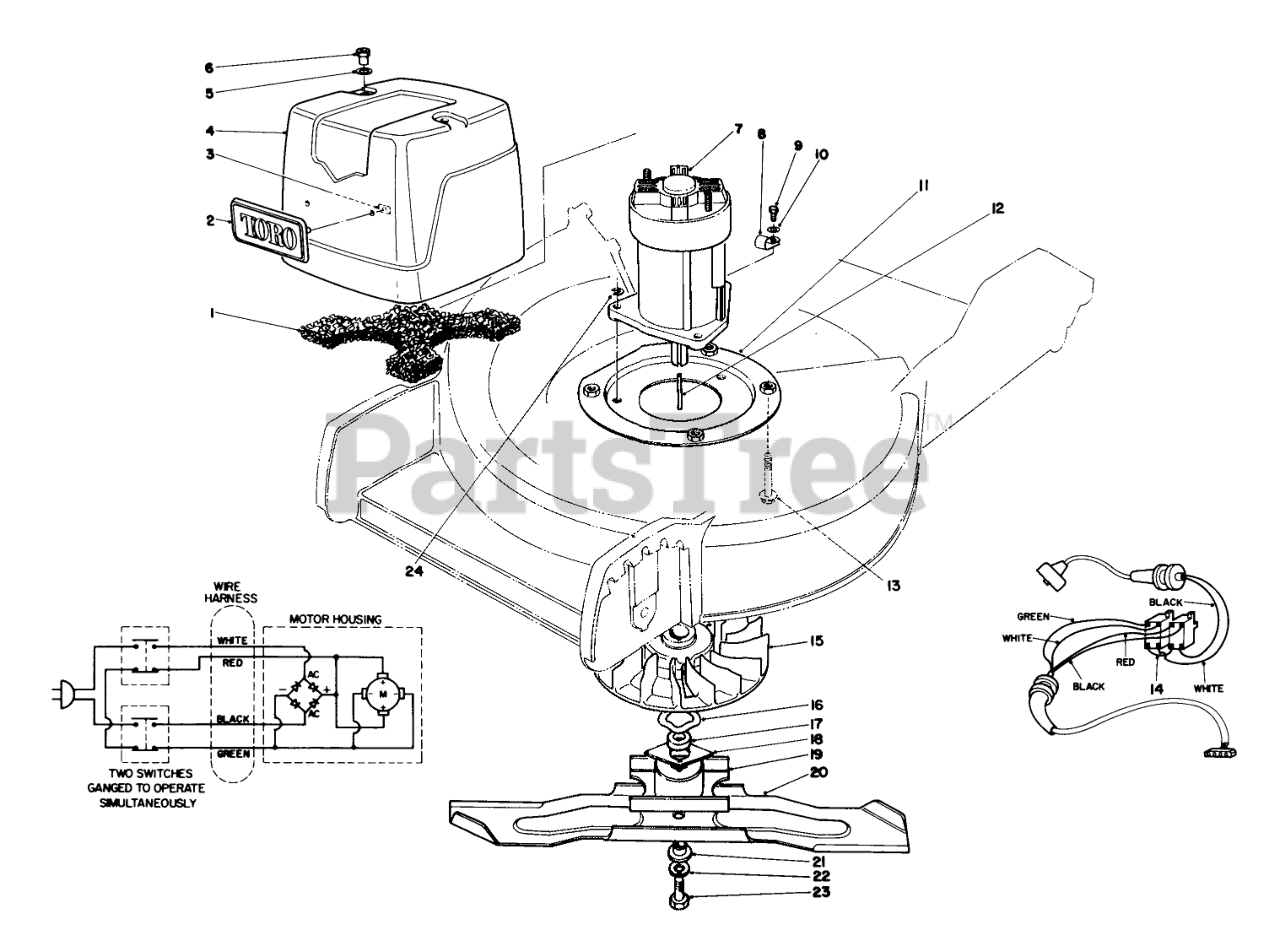

20564 C - Toro Walk-Behind Mower, Electric (SN: 007000001 - 007999999) (1987) > Parts Diagrams (5) > MOTOR & BLADE ASSEMBLY

  • Title
50-9770

1

FILTER F/W

Part# 50-9770

OEM Warranty Repair Part for Toro

Not available

50-9690

2

TORO LOGO PLT

Part# 50-9690

OEM Warranty Repair Part for Toro

Not available

3290-449

3

Receiver-Stud

Part# 3290-449

OEM Warranty Repair Part for Toro

Not available

50-9760

4

Shroud-Motor

Part# 50-9760 (Superseded to 50-9761)

OEM Warranty Repair Part for Toro

Not available

50-9750

5

WASHER F/W

Part# 50-9750

OEM Warranty Repair Part for Toro

Not available

50-9740

6

NUT F/W

Part# 50-9740

OEM Warranty Repair Part for Toro

Not available

62-5840

7

Motor-Electric

Part# 62-5840

OEM Warranty Repair Part for Toro

Not available

2412-91

8

CLAMP

Part# 2412-91

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.48

321-4

9

SCREW-HH

Part# 321-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.78

3256-1

10

WASHER-FLAT

Part# 3256-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.78

50-9830

11

MOTOR MOUNT ASM WA

Part# 50-9830

OEM Warranty Repair Part for Toro

Not available

32150-1

12

KEY-SQUARE

Part# 32150-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.56

3234-18

13

SCREW-HHF

Part# 3234-18

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.77

50-9660

14

BRAKE WIRE

Part# 50-9660

OEM Warranty Repair Part for Toro

Not available

50-9790

15

FAN F/W

Part# 50-9790

OEM Warranty Repair Part for Toro

Not available

3290-448

16

WAVE WASHER

Part# 3290-448

OEM Warranty Repair Part for Toro

Not available

50-9780

17

BLADE RETAINER SPACER

Part# 50-9780

OEM Warranty Repair Part for Toro

Not available

55-4640

18

FAN DRIVER

Part# 55-4640

OEM Warranty Repair Part for Toro

Not available

20-2752

19

BLADE RETAINER WA

Part# 20-2752

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $52.00

33-0490

20

Blade

Part# 33-0490 (Superseded to 33-0490-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $24.59

50-9890

21

BLADE SPACER

Part# 50-9890

OEM Warranty Repair Part for Toro

Not available

3253-31

22

WASHER-LOCK/SP

Part# 3253-31 (Superseded to 3253-4)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.66

3210-24

23

SCREW-HH

Part# 3210-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.81

3255-7

24

WASHER-LOCK/EXT

Part# 3255-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.48
