20564 C - Toro Walk-Behind Mower, Electric (SN: 007000001 - 007999999) (1987) Motor Briggs Stratton Model No. 748001-0334-01 Parts Diagram

Walk-Behind Mower, Electric

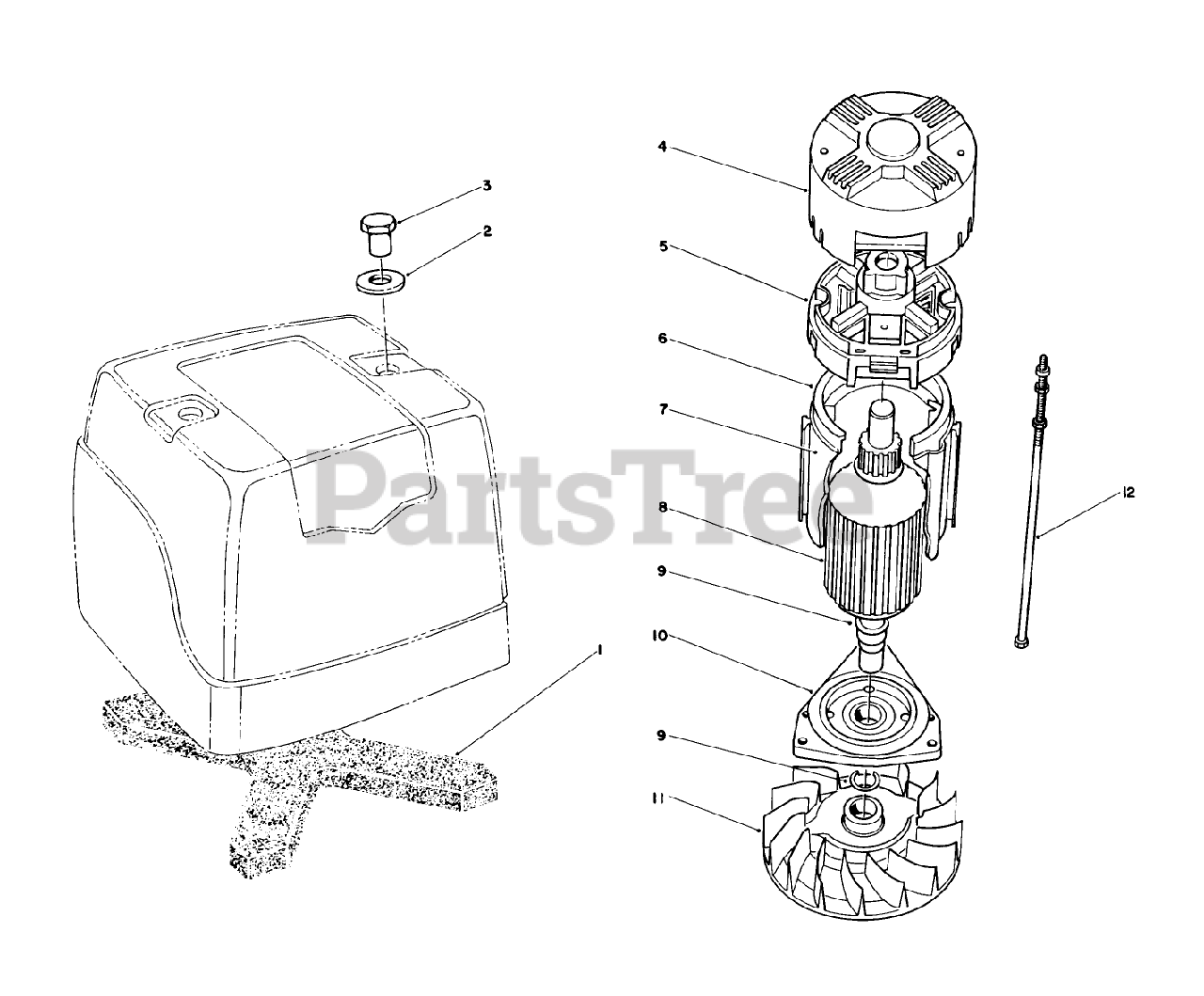

Motor Briggs Stratton Model No. 748001-0334-01 Parts Diagram

  • Title

1

Toro 271711

Filter

$

$

Currently unavailable

2

Toro 93852

Washer

$

$

Currently unavailable

3

Toro 231298

Nut-Hex

$

$

Currently unavailable

4

Toro 280709

End Cap-Brush

$

$

Currently unavailable

5

Toro 490833

Brush Box Group (Includes: 490834 Brush Pin Group)

$

$

Currently unavailable

6

Toro 399995

Housing Assembly

$

$

Currently unavailable

7

Toro 490830

Insulator Group-Housing

$

$

Currently unavailable

8

Toro 490829

Armature Group

$

$

Currently unavailable

9

Toro 395477

Ring-Retaining

$

$

Currently unavailable

10

Toro 394770

Spacer

$

$

Currently unavailable

11

Toro 280478

Fan

$

$

Currently unavailable

12

Toro 490832

Bolt-Thru (Includes Two Sets)

$

$

Currently unavailable

Toro 397711

Cover Group-Motor (Includes Hardware Filter)

$

$

Currently unavailable
