20564 C - Toro Walk-Behind Mower, Electric (SN: 007000001 - 007999999) (1987)

Walk-Behind Mower, Electric

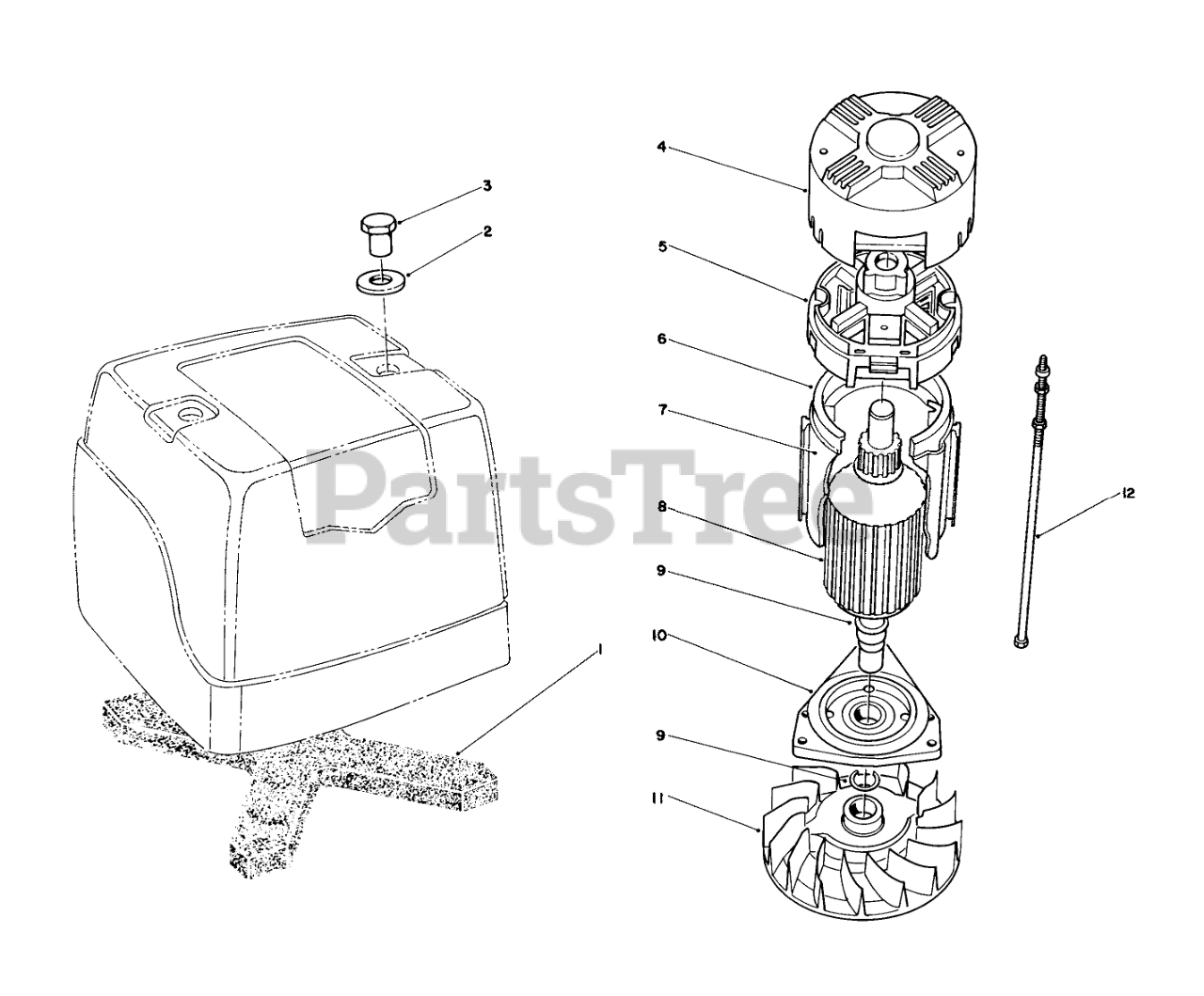

20564 C - Toro Walk-Behind Mower, Electric (SN: 007000001 - 007999999) (1987) > Parts Diagrams (5) > MOTOR BRIGGS & STRATTON MODEL NO. 748001-0334-01

  • Title
271711

1

Filter

Part# 271711 (Superseded to 271792)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $10.40

93852

2

Washer

Part# 93852 (Superseded to 690310)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.35

231298

3

Nut-Hex

Part# 231298

OEM Warranty Repair Part for Briggs & Stratton

Not available

280709

4

End Cap-Brush

Part# 280709

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $6.88

490833

5

Brush Box Group (Includes: 490834 Brush & Pin Group)

Part# 490833

OEM Warranty Repair Part for Briggs & Stratton

Not available

399995

6

Housing Assembly

Part# 399995

OEM Warranty Repair Part for Briggs & Stratton

Not available

490830

7

Insulator Group-Housing

Part# 490830

OEM Warranty Repair Part for Briggs & Stratton

Not available

490829

8

Armature Group

Part# 490829

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $131.98

395477

9

Ring-Retaining

Part# 395477

OEM Warranty Repair Part for Briggs & Stratton

Not available

394770

10

Spacer

Part# 394770

OEM Warranty Repair Part for Briggs & Stratton

Not available

280478

11

Fan

Part# 280478 (Superseded to 491389)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $16.66

490832

12

Bolt-Thru (Includes Two Sets)

Part# 490832

OEM Warranty Repair Part for Briggs & Stratton

Not available

397711

Cover Group-Motor (Incl. Ref. #1-3)

Part# 397711

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $21.19
