20564 C - Toro Walk-Behind Mower, Electric (SN: 009000001 - 009999999) (1989) MOTOR BRIGGS & STRATTON MODEL NO. 748001-0334-01 Parts Diagram

Walk-Behind Mower, Electric

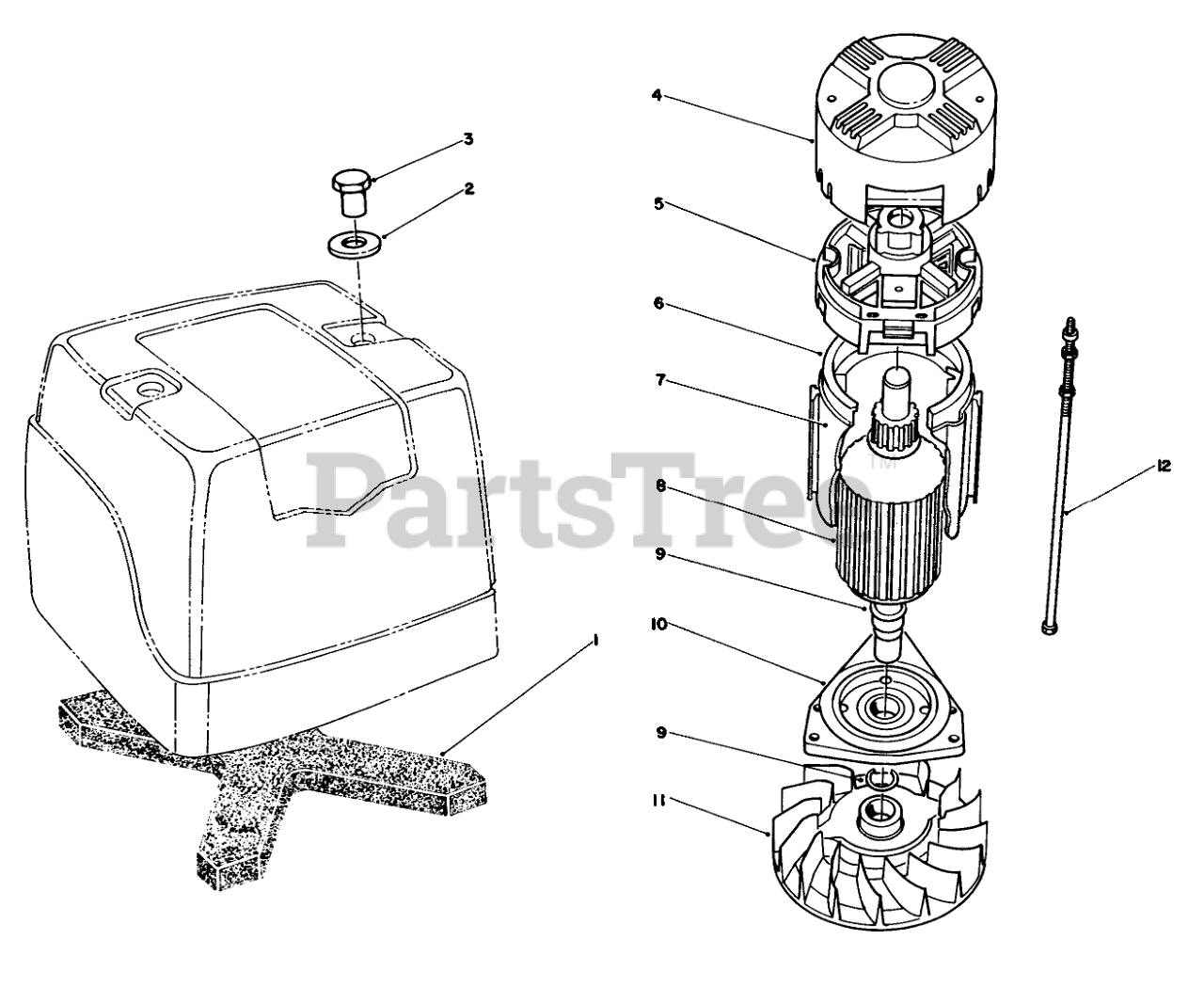

MOTOR BRIGGS & STRATTON MODEL NO. 748001-0334-01 Parts Diagram

  • Title
1

Briggs & Stratton 271711

Filter
(Superseded to 271792)

$14.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 93852

Washer
(Superseded to 690310)

$4.99

$

Usually ships in 2-12 days

0

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 280709

End Cap-Brush

$8.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 490833

Brush Box Group (Includes: 490834 Brush & Pin Group)

$60.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 399995

Housing Assembly

$58.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 490830

Insulator Group-Housing

$10.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 490829

Armature Group

$161.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 395477

Ring-Retaining

$0.99

$

Usually ships in 2-12 days

0

$55.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 280478

Fan
(Superseded to 491389)

$20.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 490832

Bolt-Thru (Includes Two Sets)

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 397711

Cover Group-Motor (Incl. Ref. #1-3)

$25.99

$

Usually ships in 2-12 days

0
