20564 - Toro Walk-Behind Mower, Electric (SN: 008000001 - 008999999) (1988) Motor Blade Assembly Parts Diagram

Walk-Behind Mower, Electric

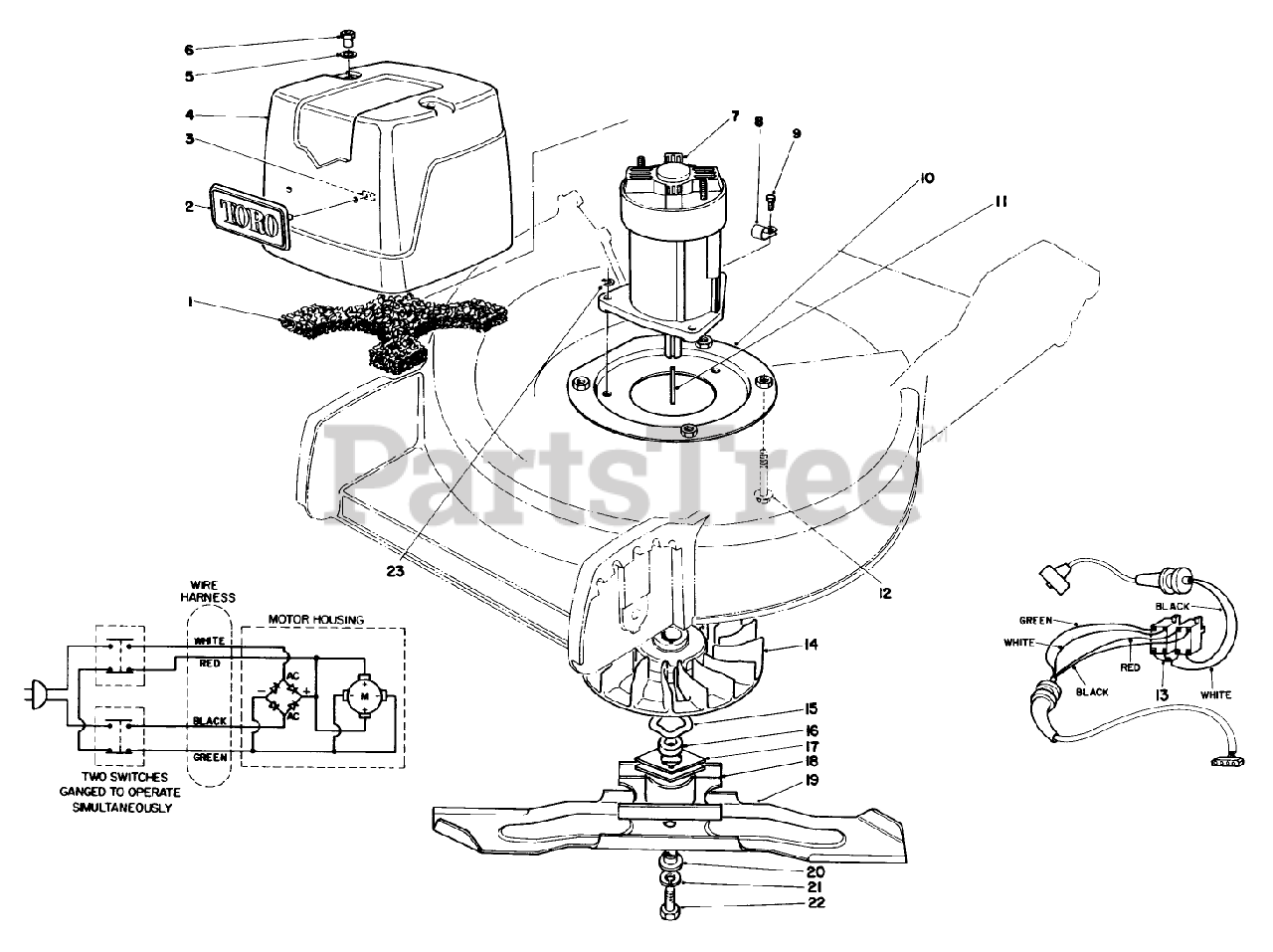

Motor Blade Assembly Parts Diagram

  • Title

1

Toro 50-9770

DISCONTINUED

$

$

Not available

2

Toro 50-9690

DISCONTINUED

$

$

Not available

3

Toro 3290-454

DISCONTINUED

$

$

Not available

4

Toro 50-9760

See Supercession: 50-9761
(Superseded to 50-9761)

$

$

Not available

5

Toro 50-9750

DISCONTINUED

$

$

Not available

6

Toro 50-9740

DISCONTINUED

$

$

Not available

7

Toro 62-5840

DISCONTINUED-GET FROM B&S

$

$

Not available

8

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 50-9830

DISCONTINUED

$

$

Not available

11

Toro 66-1980

1/8 X 1/40 SQUARE KEY

$

$

Not available

12

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

13

Toro 50-9660

DISCONTINUED

$

$

Not available

14

Toro 50-9790

DISCONTINUED

$

$

Not available

15

Toro 3290-448

DISCONTINUED

$

$

Not available

16

Toro 50-9780

DISCONTINUED

$

$

Not available

17

Toro 55-4640

DISCONTINUED

$

$

Not available

18

Toro 20-2752

BLADE RETAINER WA

$

$

Not available

19

Toro 33-0490

See Supercession: 33-0490-03
(Superseded to 33-0490-03)

$45.99

$

Usually ships in 3-6 days

0

20

Toro 50-9890

DISCONTINUED

$

$

Not available

21

Toro 3253-31

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

22

Toro 3210-24

SCREW-HH

$

$

Not available

23

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

In Stock, only 3 left!

0
