20564 - Toro Walk-Behind Mower, Electric (SN: 008000001 - 008999999) (1988) MOTOR BRIGGS & STRATTON MODEL NO. 748001-0334-01 Parts Diagram

Walk-Behind Mower, Electric

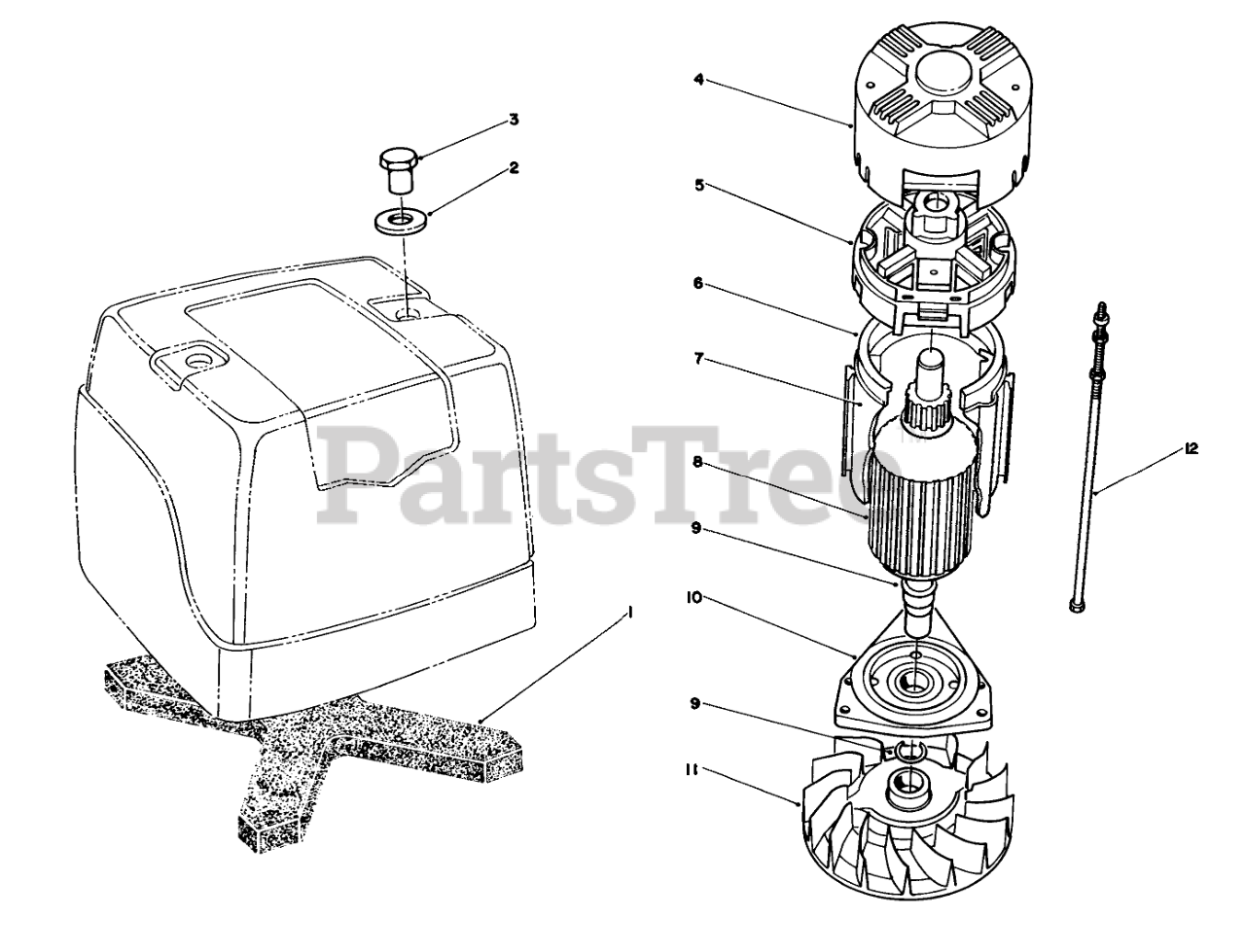

MOTOR BRIGGS & STRATTON MODEL NO. 748001-0334-01 Parts Diagram

  • Title

1

Briggs & Stratton 271711

Filter
(Superseded to 271792)

$14.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 93852

Washer
(Superseded to 690310)

$5.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 231298

Nut-Hex

$

$

Not available

4

Briggs & Stratton 280709

End Cap-Brush

$

$

Not available

5

Briggs & Stratton 490833

Brush Box Group (Includes: 490834 Brush & Pin Group)

$

$

Not available

6

Briggs & Stratton 399995

Housing Assembly

$

$

Not available

7

Briggs & Stratton 490830

Insulator Group-Housing

$

$

Not available

8

Briggs & Stratton 490829

Armature Group

$

$

Not available

9

Briggs & Stratton 395477

Ring-Retaining

$

$

Not available

10

Briggs & Stratton 394770

Spacer

$

$

Not available

11

Briggs & Stratton 280478

Fan
(Superseded to 491389)

$

$

Not available

12

Briggs & Stratton 490832

Bolt-Thru (Includes Two Sets)

$

$

Not available

Briggs & Stratton 397711

Cover Group-Motor (Incl. Ref. #1-3)

$

$

Not available
