20565x31A - Scotts 20" Walk-Behind Mower (1999)

20" Walk-Behind Mower

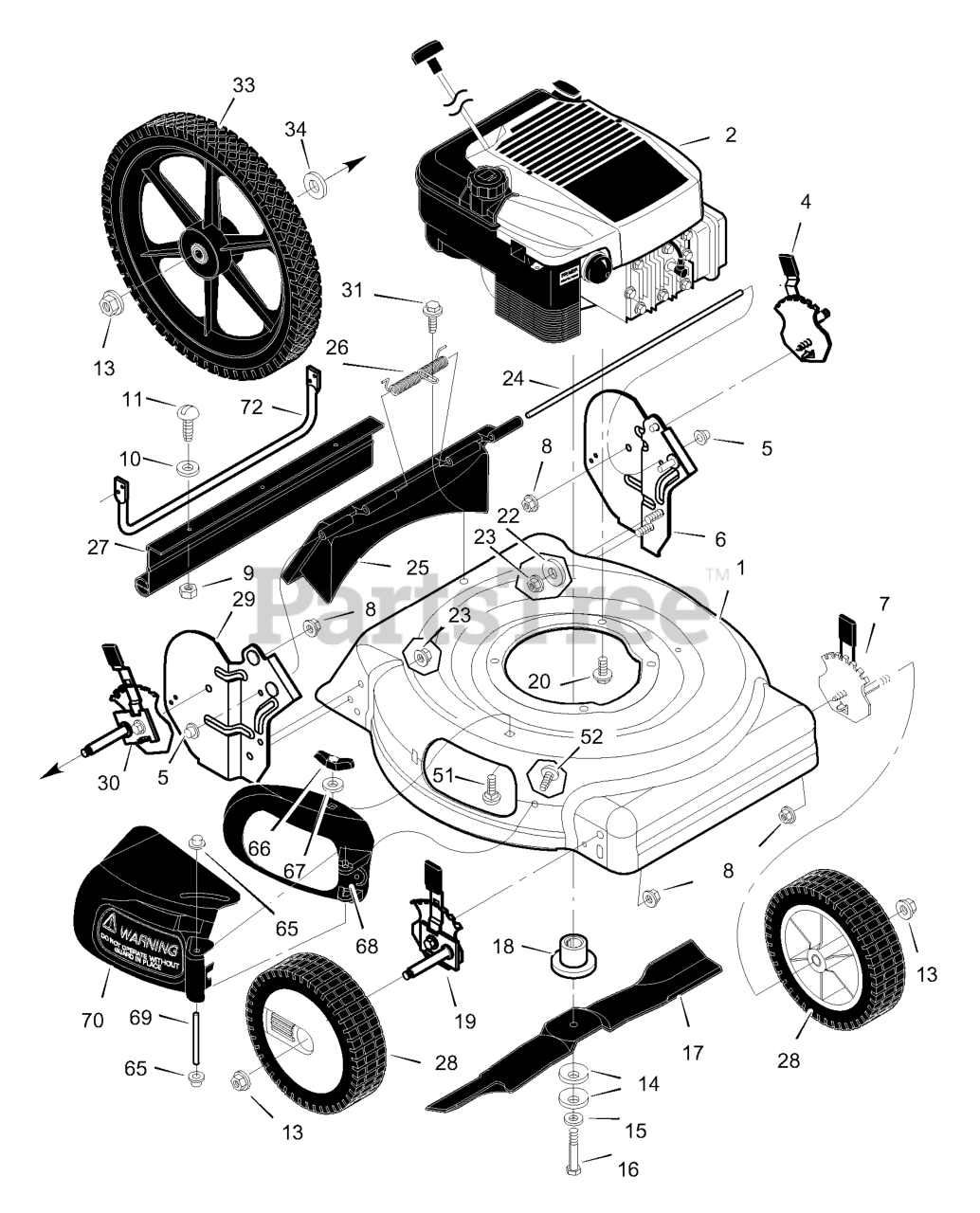

20565x31A - Scotts 20" Walk-Behind Mower (1999) > Parts Diagrams (2) > Mower Housing Assembly

  • Title
776017

1

Housing

Part# 776017

OEM Warranty Repair Part for Murray

Not available

-----

2

Engine

Part# -----

Not available

672607MA

4

Adjuster, Left Height

Part# 672607MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $17.50

028X49MA

5

Push On Cap

Part# 028X49MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92

672762E700

6

Bracket, Left Handle

Part# 672762E700

OEM Warranty Repair Part for Murray

Not available

672601MA

7

Adjuster, Left Frt. Height

Part# 672601MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $64.28

015X68MA

8

Nut, Flange

Part# 015X68MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.87

15X102MA

9

Nut, Hex

Part# 15X102MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

017X38MA

10

Washer

Part# 017X38MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

004X21MA

11

Screw

Part# 004X21MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.27

015X84MA

13

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

17X137MA

14

Washer, Belleville

Part# 17X137MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.73

17X124MA

15

Washer

Part# 17X124MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

01X153MA

16

Bolt

Part# 01X153MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.03

672763E701MA

17

Blade

Part# 672763E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $20.48

672503MA

18

Adapter, Blade

Part# 672503MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $8.69

672600MA

19

Adjuster, Right Frt. Height

Part# 672600MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $64.34

0025X6MA

20

Bolt, Engine

Part# 0025X6MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.97

17X146MA

22

Washer

Part# 17X146MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.50

015X88MA

23

Nut, Flange

Part# 015X88MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.57

215X17  Z

24

Rod, Pivot

Part# 215X17 Z

OEM Warranty Repair Part for Murray

Currently unavailable

672611

25

Door, Rear

Part# 672611

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $87.91

166X44MA

26

Spring

Part# 166X44MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.21

671969MA

27

Guard, Rear

Part# 671969MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $15.34

672060MA

28

Wheel

Part# 672060MA (Superseded to 336545MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $23.92

672761E700

29

Bracket, Right Handle

Part# 672761E700

OEM Warranty Repair Part for Murray

Currently unavailable

672606MA

30

Adjuster, Right Height

Part# 672606MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $20.36

26X245MA

31

Screw

Part# 26X245MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.15

672346

33

Wheel, Rear

Part# 672346

OEM Warranty Repair Part for Murray

Not available

017X67

34

Washer

Part# 017X67

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.72

002X16MA

51

Bolt, Carriage

Part# 002X16MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.33

26X221MA

52

Screw

Part# 26X221MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.86

028X42MA

65

Push On Cap

Part# 028X42MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

071495MA

66

Wingnut

Part# 071495MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.44

017X45  Z

67

Washer

Part# 017X45 Z

OEM Warranty Repair Part for Murray

Currently unavailable

671926

68

Bezel

Part# 671926

OEM Warranty Repair Part for Murray

Not available

215X18  Z

69

Pin, Pivot

Part# 215X18 Z

OEM Warranty Repair Part for Murray

Currently unavailable

671927

70

Deflector, Chute

Part# 671927

OEM Warranty Repair Part for Murray

Not available

672737E700

72

Brace

Part# 672737E700

OEM Warranty Repair Part for Murray

Currently unavailable

F-99429

--

Instruction Book

Part# F-99429

OEM Warranty Repair Part for Murray

Currently unavailable
