20570 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

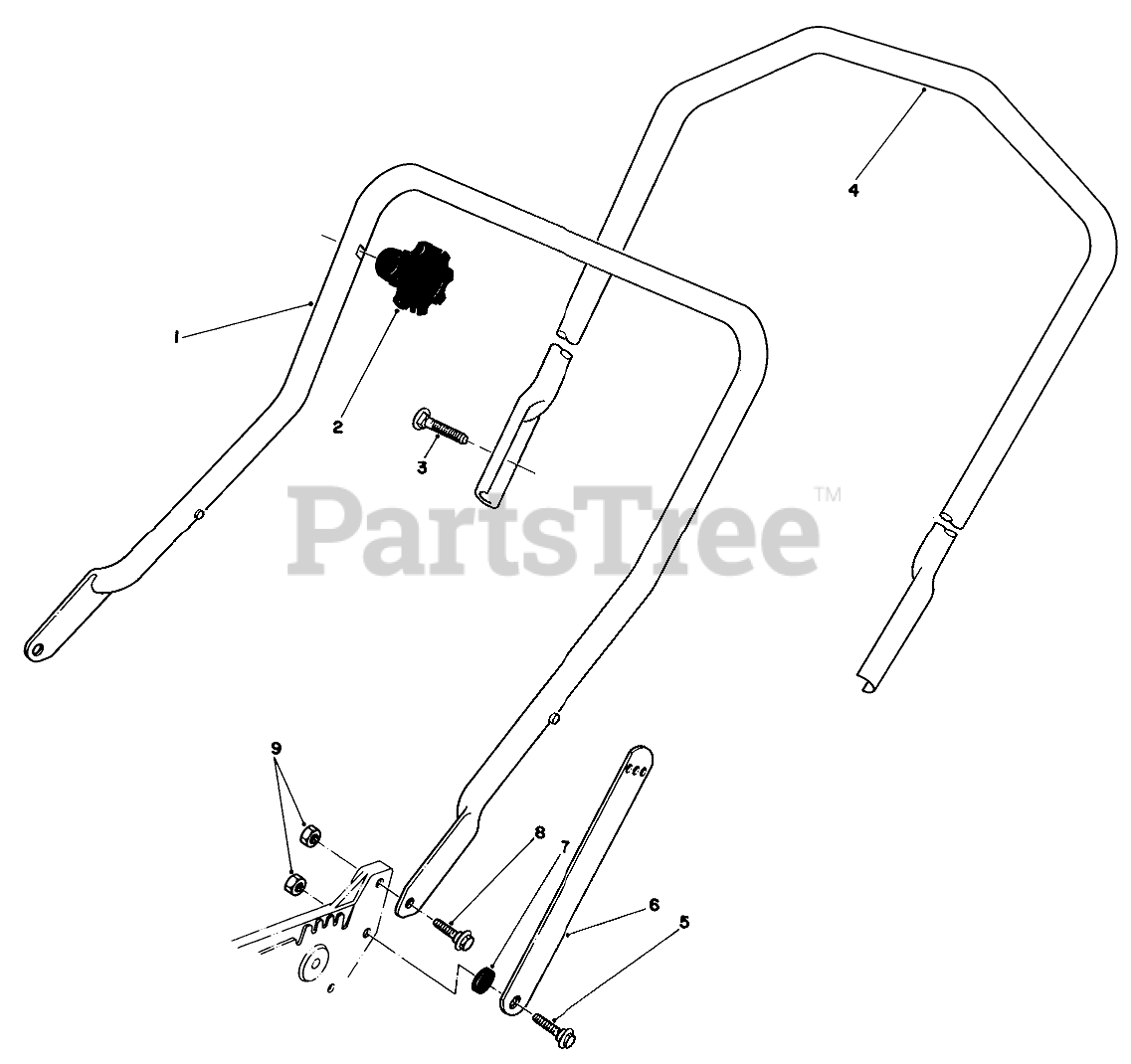

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 43-1360

Handle-Lower
(Superseded to 43-1361)
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$13.41

0

3

Toro Part# 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)
Usually ships in 1 day

$

$3.34

0

4

Toro Part# 46-5410

UPPER HANDLE
Usually ships same day

Not available

$

$

5

Toro Part# 27-7210

SCREW-SHOULDER
Usually ships in 1 day

$

$6.54

0

6

Toro Part# 43-1370

Handle Latch
(Superseded to 98-7138)
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$3.30

0

8

Toro Part# 27-7211

SCREW-SHOULDER
Usually ships in 1 day

$

$3.08

0

9

Toro Part# 3296-47

NUT-LOCK, NI
Usually ships in 1 day

$

$3.46

0
