20570 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

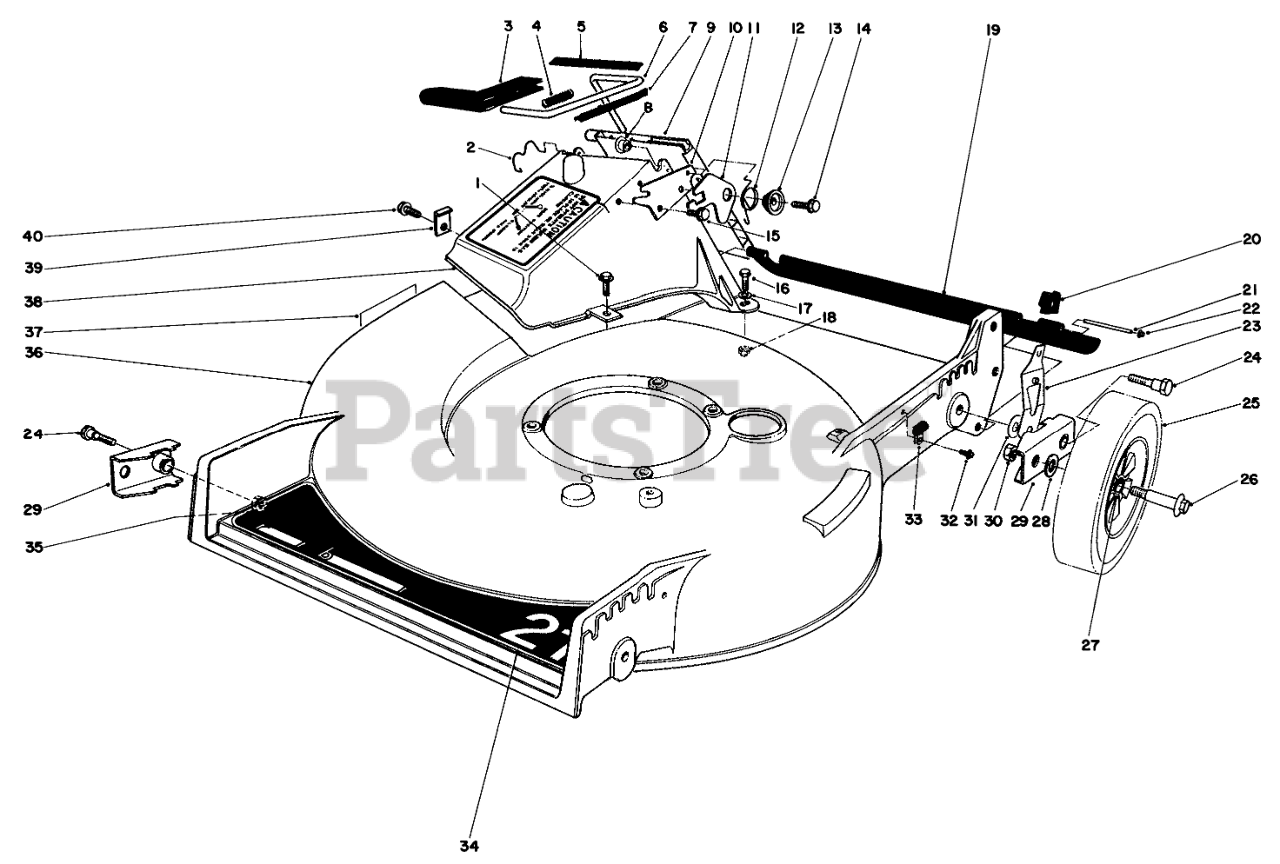

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 11-9760

Screw
(Superseded to 49-2040)
Usually ships in 1 day

$

$1.67

0

2

Toro Part# 47-5840

DOOR RET SPRING
Usually ships in 5 to 8 days

$

$5.27

0

3

Toro Part# 46-3520

Handle-Door
Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

5

Toro Part# 46-6820

DOOR COVER
Usually ships same day

Not available

$

$

6

Toro Part# 46-3530

DOOR ROD +
Usually ships same day

Not available

$

$

7

Toro Part# 46-7050

DOOR HANDLE COVER
Usually ships in 5 to 8 days

$

$4.07

0

8

Toro Part# 23-0880

BUSHING-NYLON
Usually ships same day

Not available

$

$

9

Toro Part# 46-3510

Door Discharge
(Superseded to 77-0200)
Usually ships same day

Not available

$

$

10

Toro Part# 23-1040

DOOR LATCH PLATE
Usually ships in 5 to 8 days

$

$19.78

0

11

Toro Part# 42-4010

SAFETY LATCH
Usually ships same day

Not available

$

$

12

Toro Part# 33-4860

TORSION SPRING
Usually ships in 5 to 8 days

$

$53.79

0

13

Toro Part# 43-4840

DOOR SPACER
Usually ships in 5 to 8 days

$

$5.94

0

14

Toro Part# 46-8091

SCREW-HWH
Usually ships in 1 day

$

$1.11

0

15

Toro Part# 46-8090

SCREW-PLASTITE
Usually ships in 1 day

$

$2.23

0

16

Toro Part# 321-8

SCREW-HH
Usually ships in 1 day

$

$3.46

0

17

Toro Part# 3256-22

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

18

Toro Part# 3296-42

NUT-LOCK, NI
Usually ships in 1 day

$

$0.40

0

19

Toro Part# 29-9180

SHIELD - TRAILING
Usually ships in 5 to 8 days

$

$48.42

0

20
Usually ships in 1 day

$

$4.46

0

21

Toro Part# 47-4682

SHIELD ROD
Usually ships same day

Not available

$

$

22
Usually ships same day

Not available

$

$

23

Toro Part# 44-0990

Spring Arm
(Superseded to 99-5260)
Usually ships in 5 to 8 days

$

$36.74

0

24

Toro Part# 44-5270

PIVOT SCREW
Usually ships in 1 day

$

$7.82

0

25

Toro Part# 27-6200

Wheel 8 Tire Assembly (Incl. Ref. #27)
Usually ships in 1 day

$

$45.08

0

26

Toro Part# 27-6230

BOLT-WHEEL
Usually ships in 1 day

$

$6.59

0

27
Usually ships in 1 day

$

$2.23

0

28
Usually ships in 1 day

$

$1.38

0

29

Toro Part# 47-2940

HP PIVOT ARM ASM
Usually ships in 5 to 8 days

$

$41.89

0

30

Toro Part# 32146-6

Nut
(Superseded to 3296-6)
Usually ships in 1 day

$

$1.44

0

31

Toro Part# 5-4460

WASHER-PIVOT
Usually ships in 1 day

$

$5.56

0

Usually ships in 1 day

$

$7.03

0

33

Toro Part# 2412-83

CLAMP-CABLE
Usually ships in 5 to 8 days

$

$9.76

0

34

Toro Part# 44-0450

DECK DECAL
Usually ships same day

Not available

$

$

35

Toro Part# 3296-29

NUT-LOCK, NI
Usually ships in 1 day

$

$2.00

0

36

Toro Part# 11-4069

Housing (Incl. Ref. #37)
Usually ships in 5 to 8 days

$

$882.00

0

37

Toro Part# 39-5770

DECAL-DANGER
Usually ships in 1 day

$

$6.35

0

38

Toro Part# 46-3500

Tunnel Discharge
(Superseded to 82-9151)
Usually ships in 5 to 8 days

$

$134.24

0

39

Toro Part# 47-6540

TUNNEL CLIP
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$2.90

0
