20574 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

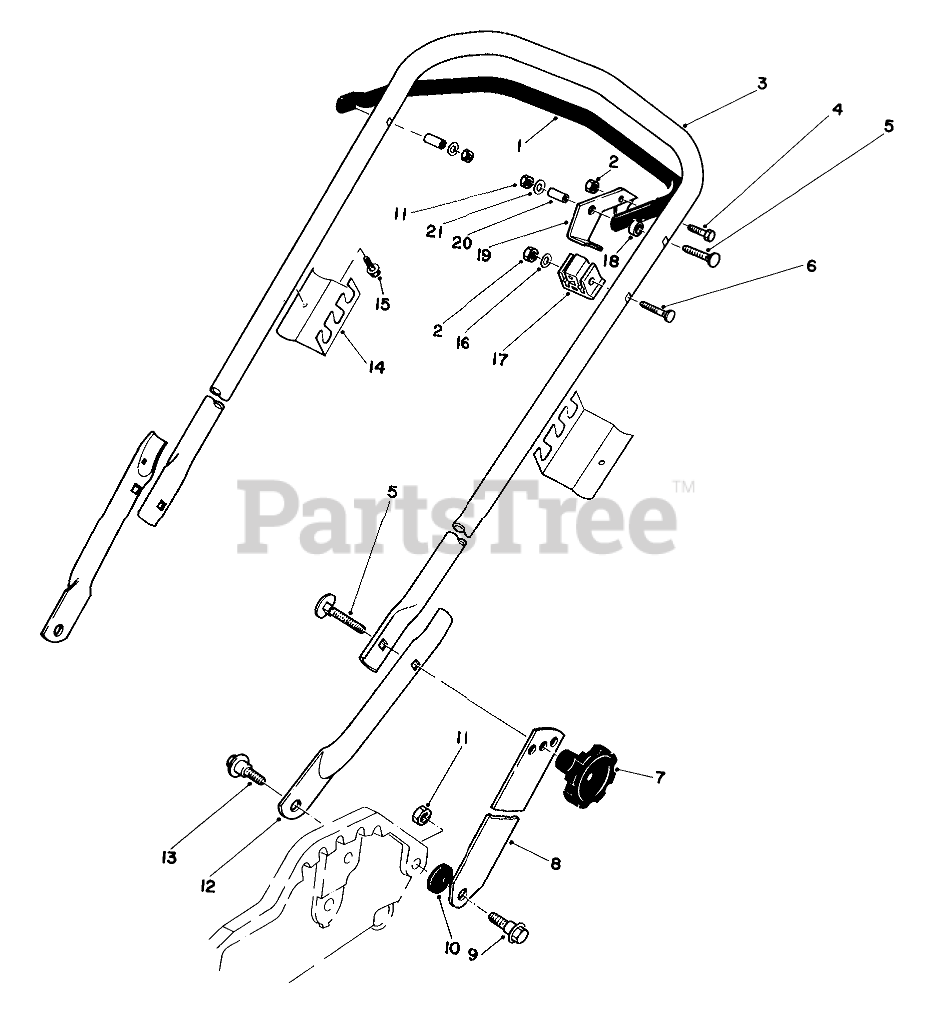

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-9900

CONTROL BAR

$

$

Not available

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 46-9930

Handle-Upper
(Superseded to 11-5439)

$196.99

$

Usually ships in 3-6 days

0

4

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

6

Toro 46-6432

SCREW-HANDLE

$15.99

$

Usually ships in 3-6 days

0

7

Toro 19-4050

KNOB

$18.99

$

In Stock, only 2 left!

0

8

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

9

Toro 27-7211

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

10

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 13

0

11

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

12

Toro 33-0520

Hand-Lower

$

$

Not available

13

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

14

Toro 46-9920

Bag Support

$

$

Not available

15

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

16

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 46-6980

SUPPORT-CABLE

$17.99

$

In Stock, only 2 left!

0

18

Toro 46-6240

Nylon Spacer

$

$

Not available

19

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$16.99

$

Usually ships in 3-6 days

0

20

Toro 46-5580

Spacer

$

$

Not available

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
