20574 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) Control Panel Assembly Parts Diagram

Walk-Behind Mower

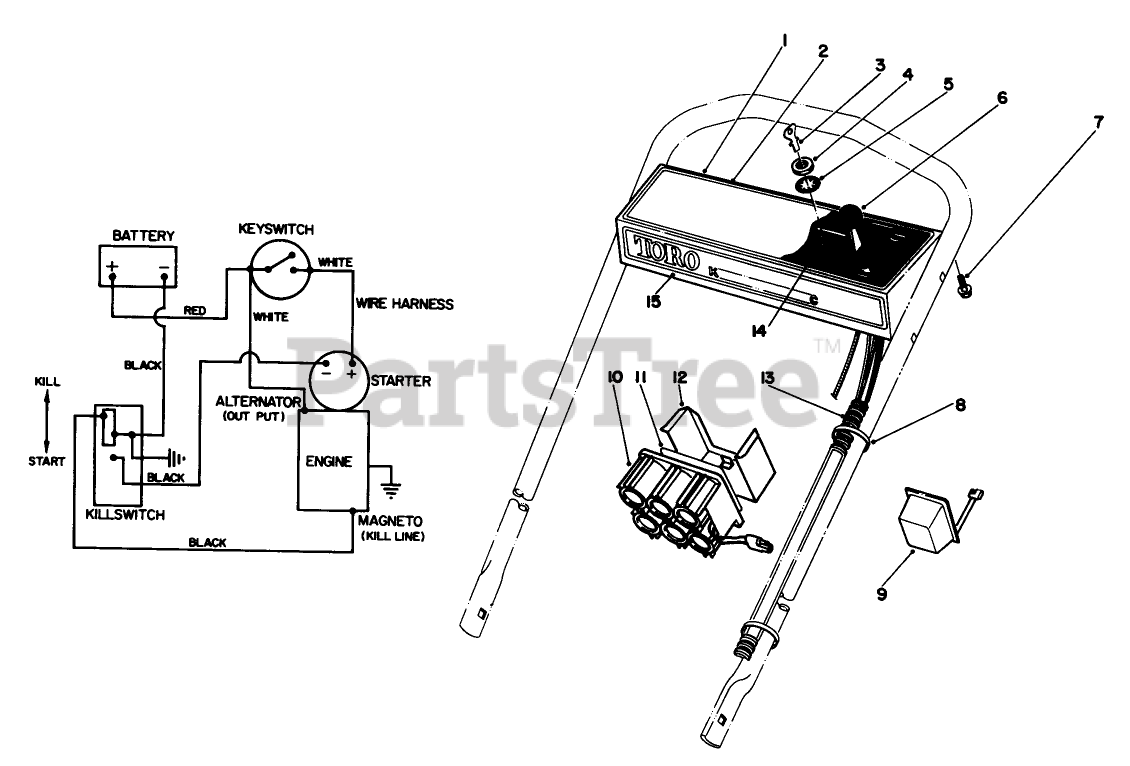

Control Panel Assembly Parts Diagram

  • Title

1

Toro 11-6919

DISCONTINUED

$

$

Not available

2

Toro 46-7440

DISCONTINUED

$

$

Not available

3

Toro 218-412

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

5

Toro 32545

Lockwasher

$

$

Currently unavailable

6

Toro 46-6010

SERVICE THROTTLE CONTRO

$

$

Not available

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

9

Toro 6-9780

See Supercession: 131-0848
(Superseded to 131-0848)

$74.99

$

Usually ships in 3-6 days

0

10

Toro 55-7520

BATTERY ASSEMBLY,WET

$176.99

$

Usually ships in 3-6 days

0

11

Toro 55-8190

See Supercession: 92-8659
(Superseded to 92-8659)

$

$

Not available

12

Toro 55-8180

See Supercession: 55-8180-03
(Superseded to 55-8180-03)

$43.99

$

Usually ships in 3-6 days

0

13

Toro 46-5810

WIRE HARNESS

$217.99

$

Usually ships in 3-6 days

0

14

Toro 46-5780

STARTER SWITCH ASM

$31.99

$

In Stock, only 2 left!

0

15

Toro 47-4600

DISCONTINUED

$

$

Not available
