20574 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) Control Panel Assembly Parts Diagram

Walk-Behind Mower

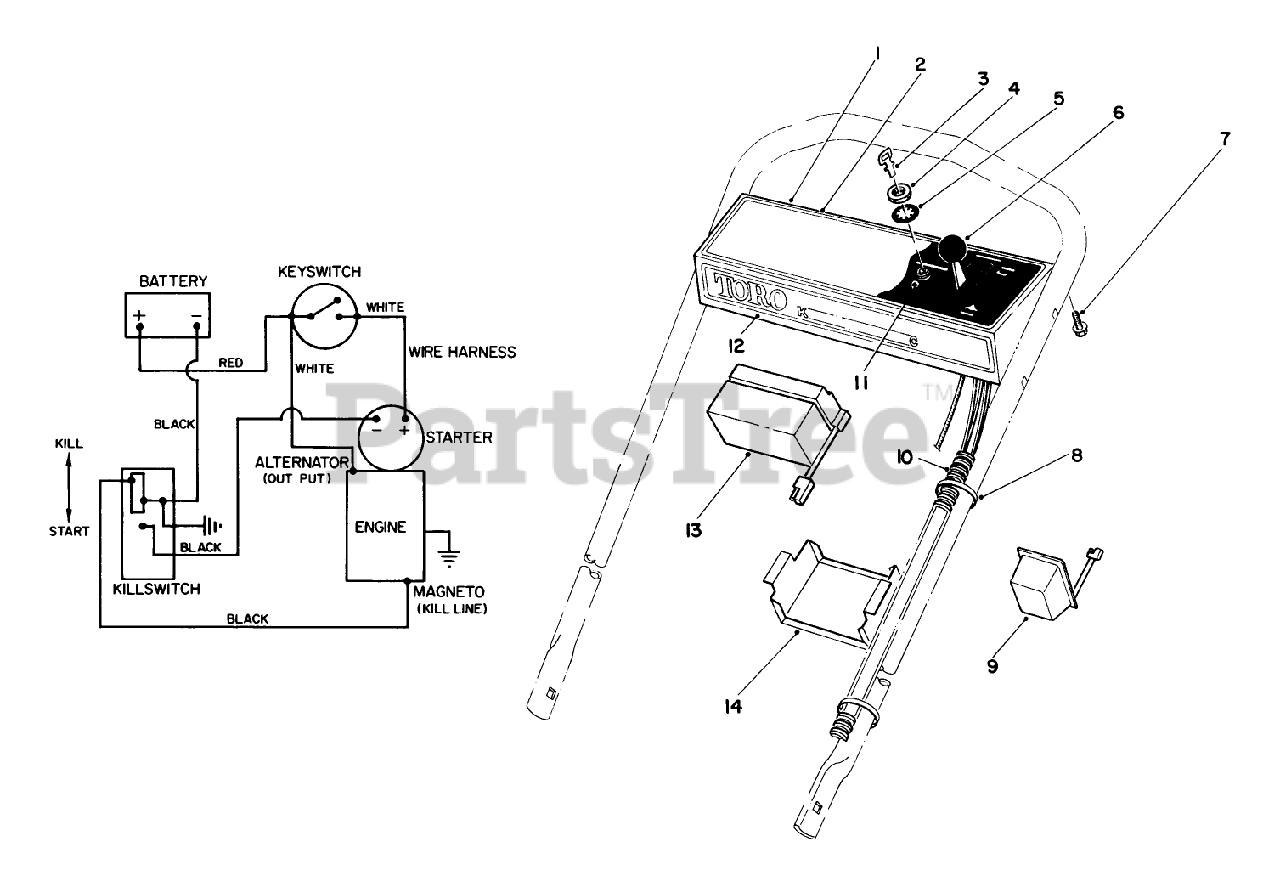

Control Panel Assembly Parts Diagram

  • Title

1

Toro 11-6919

DISCONTINUED

$

$

Not available

2

Toro 46-7440

DISCONTINUED

$

$

Not available

3

Toro 62-7770

KEY-IGNITION

$5.49

$

In Stock, Qty 14

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

5

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

6

Toro 46-6010

SERVICE THROTTLE CONTRO

$

$

Not available

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

9

Toro 6-9780

See Supercession: 131-0848
(Superseded to 131-0848)

$74.99

$

Usually ships in 3-6 days

0

10

Toro 46-5810

WIRE HARNESS

$217.99

$

Usually ships in 3-6 days

0

11

Toro 46-5780

STARTER SWITCH ASM

$31.99

$

In Stock, only 2 left!

0

12

Toro 47-4600

DISCONTINUED

$

$

Not available

13

Toro 63-8570

See Supercession: 99-5262
(Superseded to 99-5262)

$

$

Not available

14

Toro 63-8480

DISCONTINUED

$

$

Not available
