20575 - Toro Walk-Behind Mower (SN: 008007501 - 008999999) (1978) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

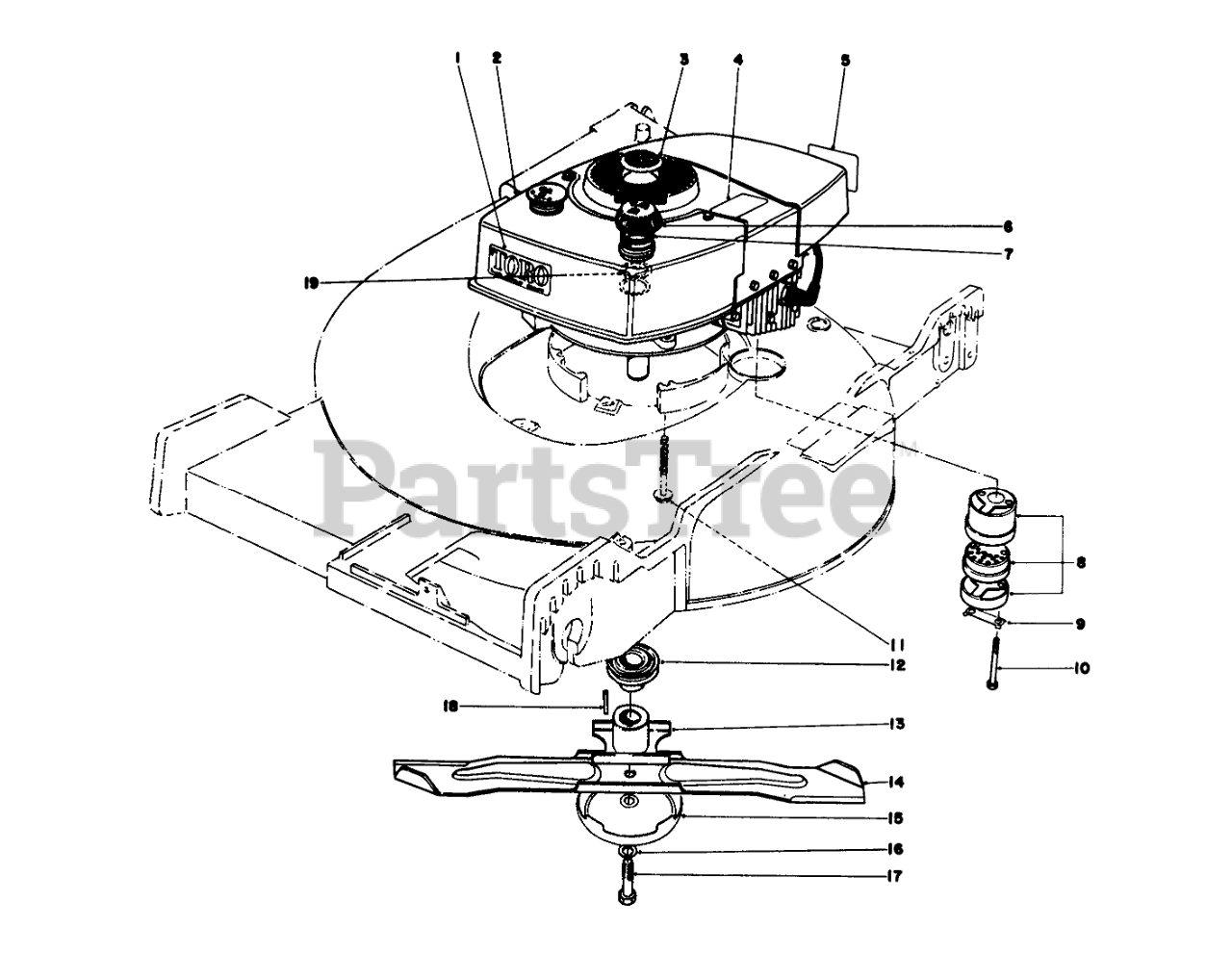

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 23-1260

High Torque

$

$

Not available

2

Toro 221-578

Engine

$

$

Currently unavailable

3

Toro 21-4870

PLUG BUTTON

$

$

Not available

4

Toro 25-1050

Decal Lockout

$

$

Not available

5

Toro 37-1580

Decal-Maintenan

$

$

Not available

6

Toro 27-7870

Gas Cap Assembly(Incl. Ref. #7 & 19)
(Superseded to 42-0682)

$

$

Not available

7

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

8

Toro 54769

Muffler Assembly (Incl. Ref.#9 & 10)

$

$

Currently unavailable

Toro 36-3200

Muffler (Spark Arrestor-Optional)
(Superseded to 39-5930)

$

$

Not available

9

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

10

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

11

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

12

Toro 21-5580

DRIVER PULLEY

$

$

Not available

13

Toro 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

$

$

Not available

14

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$30.99

$

In Stock, Qty 6

0

15

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$15.99

$

In Stock, only 2 left!

0

16

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

17

Toro 23-0080

BLADE SCREW

$31.99

$

Usually ships in 3-6 days

0

18

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

19

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available
