20575 - Toro Walk-Behind Mower (SN: 008007501 - 008999999) (1978) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

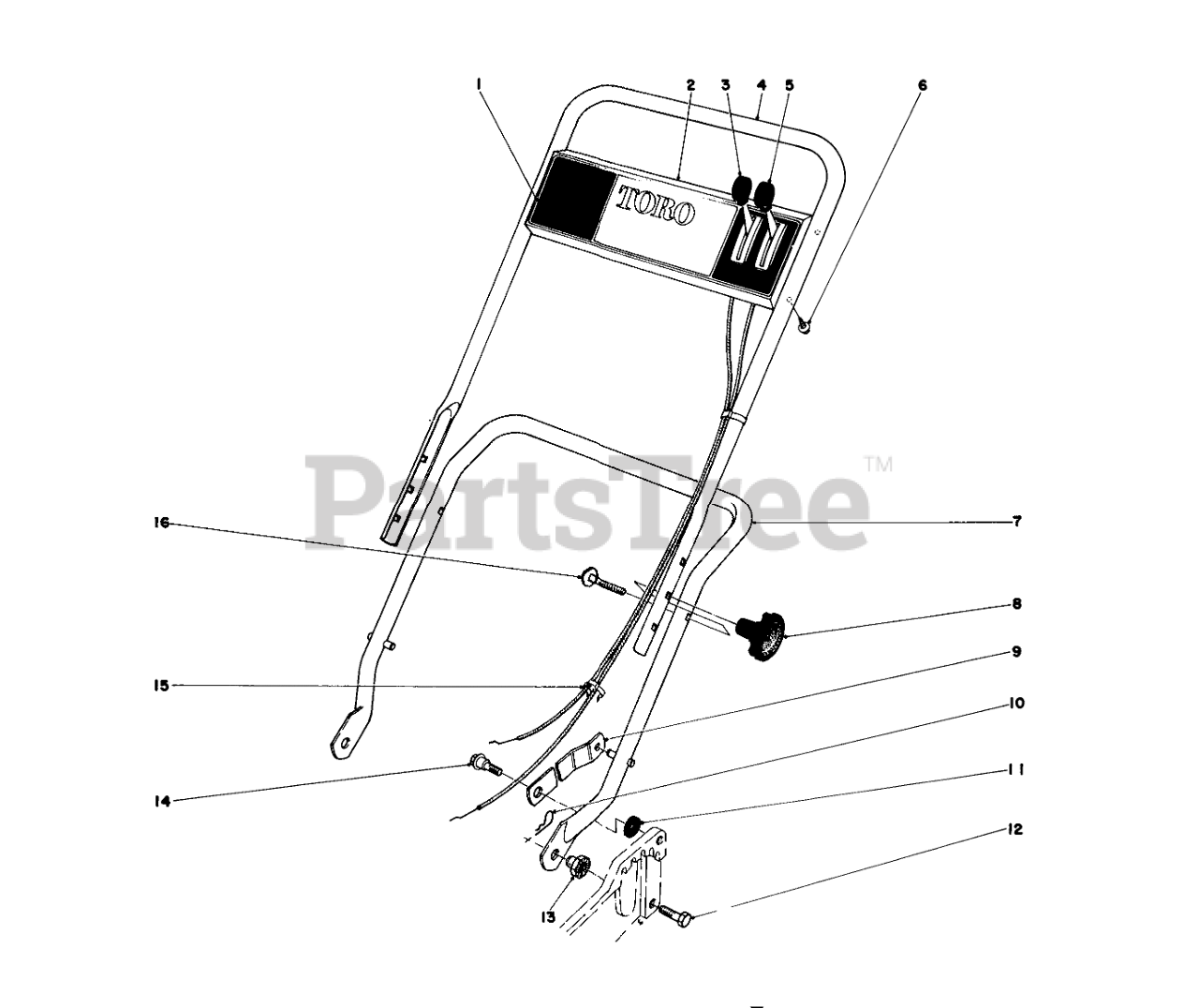

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 33-5180

Decal Control Plate

$

$

Currently unavailable

2

Toro 36-0160

Control Plate

$

$

Currently unavailable

3

Toro 36-3271

Throttle Control
(Superseded to 46-6010)

$60.99

$

Usually ships in 3-6 days

0

4

Toro 334290

Upper Handle

$

$

Currently unavailable

5

Toro 33-2564

Traction Control
(Superseded to 46-6050)

$

$

Not available

6

Toro 3210476

Screw

$

$

Currently unavailable

7

Toro 334340

Lower Handle

$

$

Currently unavailable

8

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

9

Toro 26-0760

HANDLE LATCH

$

$

Not available

10

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

11

Toro 3-3287

SPACER

$5.49

$

In Stock, only 3 left!

0

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

14

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

15

Toro 218-465

BOWDEN CLIP

$

$

Not available

16

Toro 6-6330

HANDLE SCREW

$

$

Not available
