20577 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

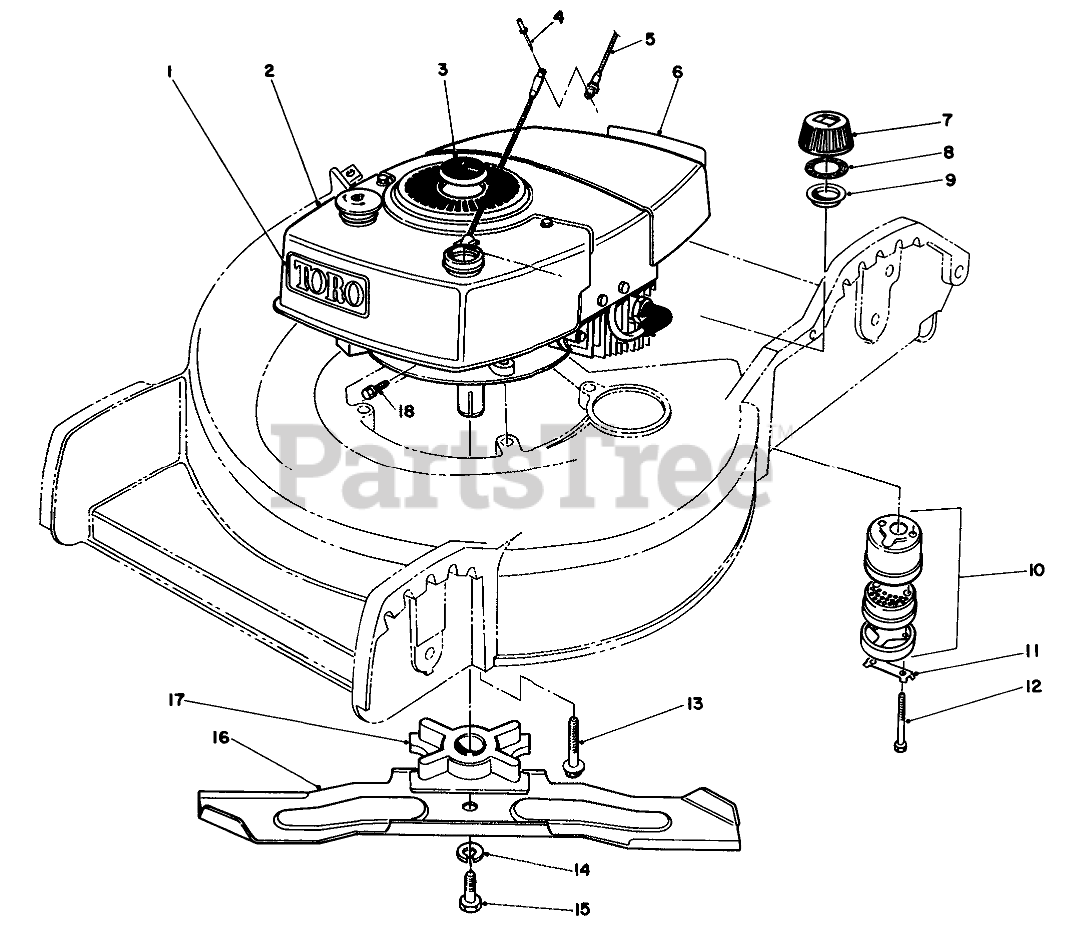

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 221-731

Engine

$

$

Currently unavailable

3

Toro 38-1480

PLUG BUTTON

$16.99

$

In Stock, only 1 left!

0

4

Toro 2210-251

RIVET

$

$

Not available

5

Toro 46-8890

Rope-Starter

$

$

Not available

6

Toro 46-7580

Decal-Maintenance

$

$

Not available

7

Toro 42-0682

Gas Cap Assembly (Incl. Ref. #8 & 9)

$

$

Not available

8

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

9

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

10

Toro 5-4769

Muffler Assembly (Incl. Ref. #11 & 12)

$54.99

$

Usually ships in 3-6 days

0

11

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

12

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

13

Toro 11-0581

3/8-16 X 2 CAPSCREW

$3.99

$

Usually ships in 3-6 days

0

14

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

15

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

16

Toro 33-0490

Blade
(Superseded to 33-0490-03)

$42.99

$

In Stock, only 1 left!

0

17

Toro 49-7890

BLADE RETAINER

$64.99

$

Usually ships in 3-6 days

0

18

Toro 2210-250

SCREW-HH

$

$

Not available

Toro 39-5930

Spark Arrestor Muffler (Incl. Ref. #11 & 12)

Note: Not illustrated

$

$

Not available
