20581 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

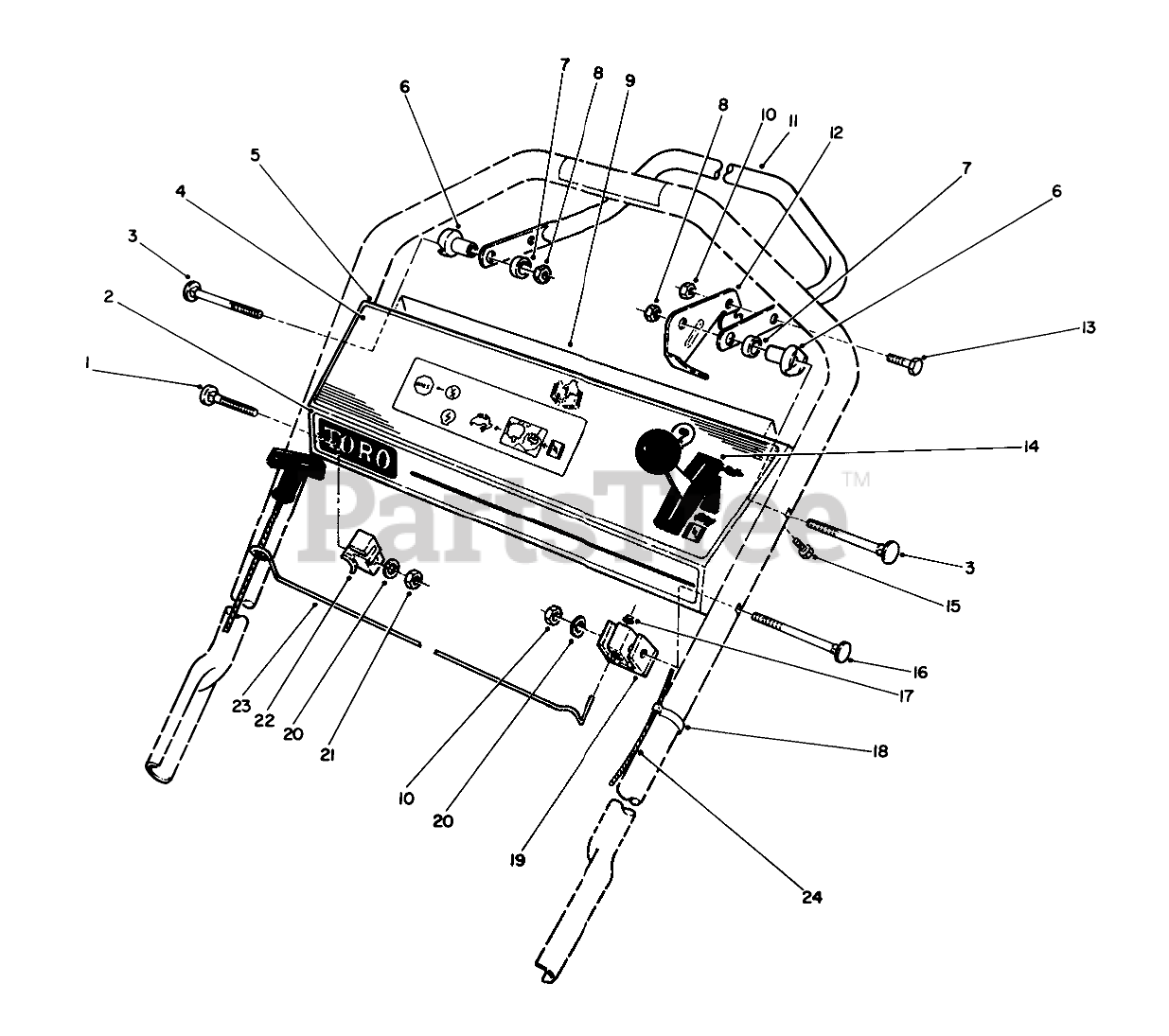

CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 46-6430

SCREW-HANDLE

$11.99

$

Usually ships in 3-6 days

0

2

Toro 66-1770

DECAL - TORO PANEL

$

$

Not available

3

Toro 17-9412

Screw-Handle

$

$

Currently unavailable

4

Toro 66-1830

Decal-Instruction

$

$

Not available

5

Toro 49-1675

Control Panel

$

$

Currently unavailable

6

Toro 49-1630

SPACER-SUPPORT

$8.99

$

In Stock, only 2 left!

0

7

Toro 256-276

SPACER-NYLON

$2.99

$

In Stock, only 2 left!

0

8

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

9

Toro 66-1790

DECAL - PANEL, REAR
(Superseded to 93-6655)

$8.99

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 52-7430

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 8

0

14

Toro 49-4190

Throttle Control (Bend Type 1) (Sheath Lg. 47 5/8" (Wire Lg. 2-3/84")
(Superseded to 49-4193)

$67.99

$

Usually ships in 3-6 days

0

15

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 46-6434

HANDLE SCREW

$4.49

$

Usually ships in 3-6 days

0

17

Toro 3290

216 Washer

$

$

Currently unavailable

18

Toro 218-465

BOWDEN CLIP

$

$

Not available

19

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

22

Toro 46-7960

ROD CATCH

$19.99

$

Usually ships in 3-6 days

0

23

Toro 46-7970

ROPE ROD PLATED

$

$

Not available

24

Toro 56-6092

BRAKE CABLE

$

$

Not available
