20581 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

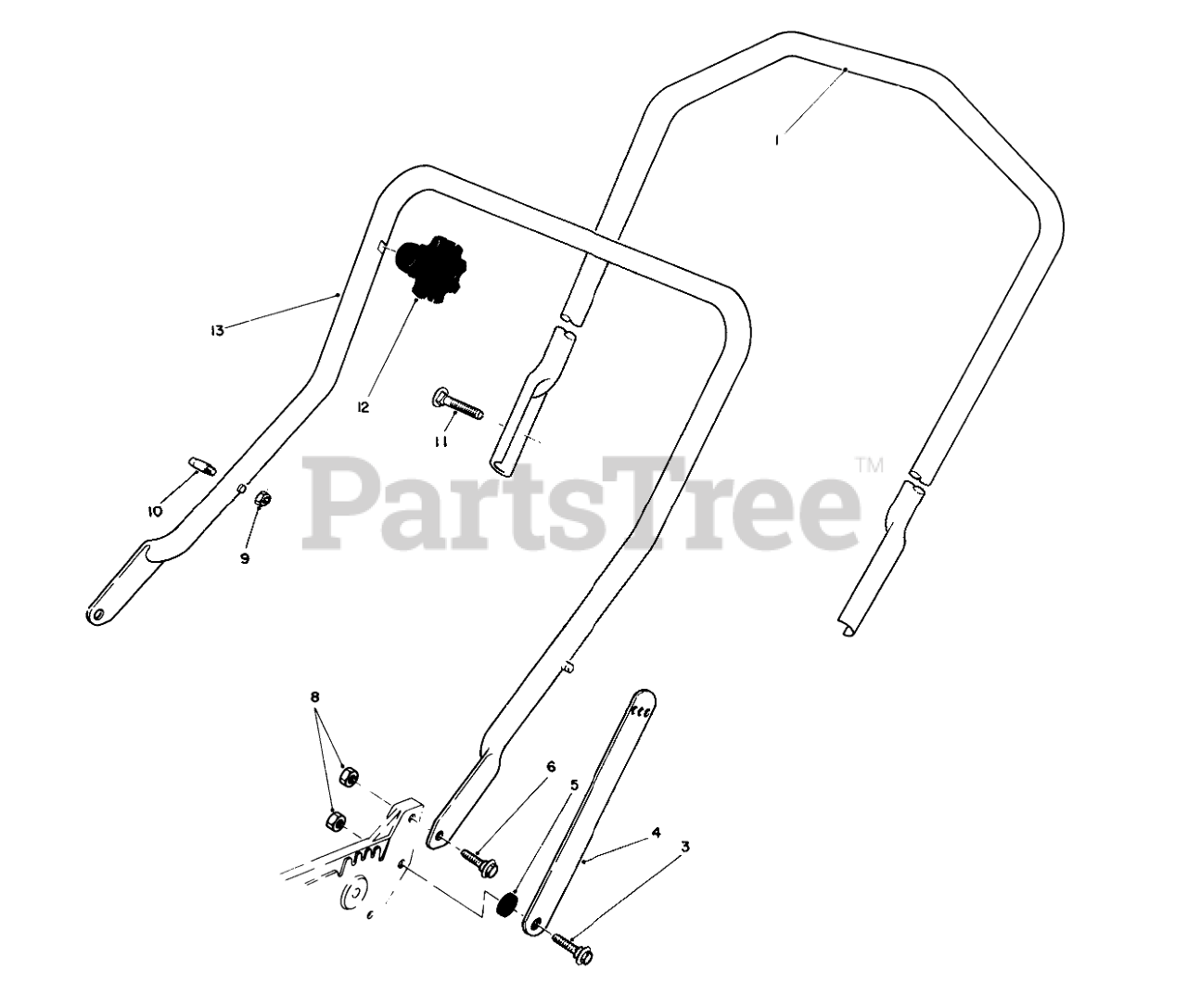

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 12-1559

Handle-Upper
(Superseded to 11-6549)
Usually ships same day

Not available

$

$

3

Toro Part# 27-7210

SCREW-SHOULDER
Usually ships in 1 day

$

$6.54

0

4

Toro Part# 43-1370

Handle Latch
(Superseded to 98-7138)
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$3.30

0

6

Toro Part# 27-7211

SCREW-SHOULDER
Usually ships in 1 day

$

$3.08

0

8

Toro Part# 3296-29

NUT-LOCK, NI
Usually ships in 1 day

$

$2.00

0

9

Toro Part# 3296-47

NUT-LOCK, NI
Usually ships in 1 day

$

$3.46

0

10

Toro Part# 49-2750

HANDLE PIN
Usually ships in 5 to 8 days

$

$26.16

0

11

Toro Part# 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)
Usually ships in 1 day

$

$3.34

0

Usually ships in 1 day

$

$13.41

0

13

Toro Part# 43-1361

LOWER HANDLE ASM
Usually ships same day

Not available

$

$
