20581 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) CARBURETOR ASSEMBLY Parts Diagram

Walk-Behind Mower

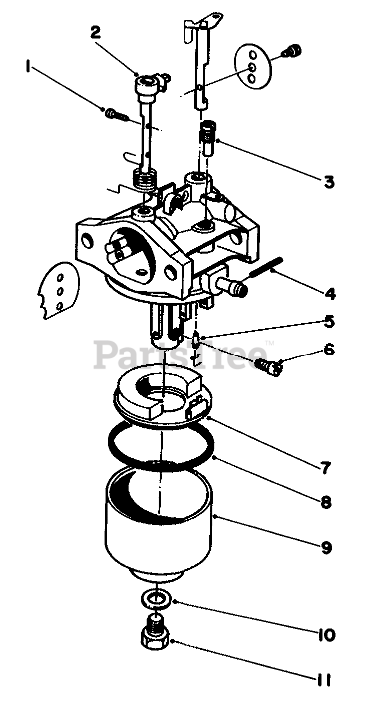

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 81-0990

SCREW

$

$

Not available

2

Toro 81-1650

THROTTLE SHAFT

$

$

Not available

3

Toro 81-1030

PILOT JET

$36.99

$

Usually ships in 3-6 days

0

4

Toro 81-0980

Pin
(Superseded to 81-2600)

$8.99

$

Usually ships in 3-6 days

0

5

Toro 81-1600

NEEDLE VALVE ASM

$

$

Not available

6

Toro 81-1040

MAIN JET

$31.99

$

Usually ships in 3-6 days

0

Toro 81-1050

Jet

Note: Not illustrated

$

$

Not available

7

Toro 81-0970

FLOAT

$64.99

$

Usually ships in 3-6 days

0

8

Toro 81-1010

GASKET

$20.99

$

Usually ships in 3-6 days

0

9

Toro 81-1610

Bowl-Float
(Superseded to 81-5660)

$74.99

$

Usually ships in 3-6 days

0

10

Toro 81-1020

GASKET

$

$

Not available

11

Toro 81-1000

Bolt
(Superseded to 81-5670)

$15.99

$

Usually ships in 3-6 days

0

Toro 81-1620

Carburetor Kit (Incl.Ref. #3, 5-6, 8 & 10)
(Superseded to 99-5277)

Note: Not illustrated

$

$

Not available

Toro 81-0960

Carburetor Assy. Complete
(Superseded to 81-4900)

Note: Not illustrated

$

$

Not available
