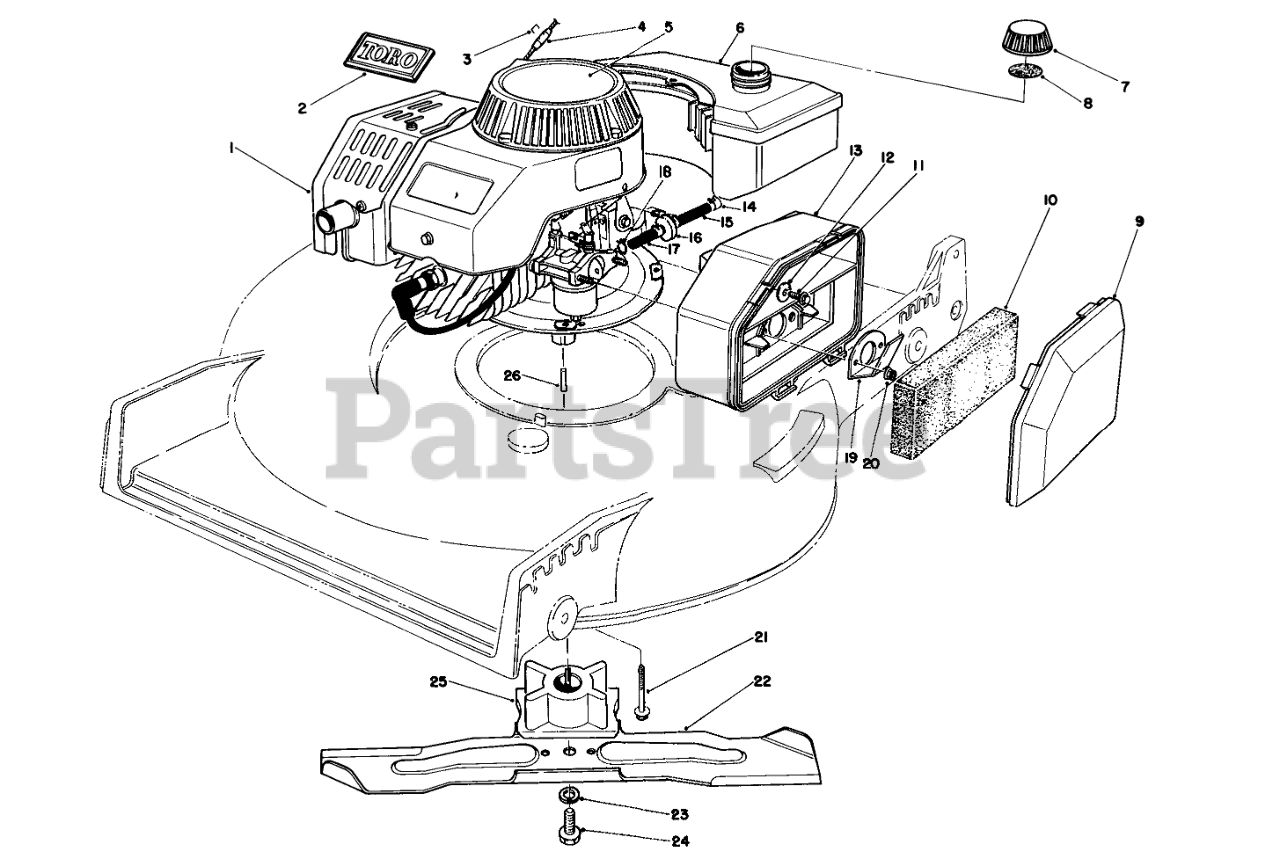

20581 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY (MODEL NO. 47PF5) (USED ON UNITS WITH SERIAL NO. 7000001-7001110) Parts Diagram

Walk-Behind Mower

ENGINE ASSEMBLY (MODEL NO. 47PF5) (USED ON UNITS WITH SERIAL NO. 7000001-7001110) Parts Diagram

  • Title

1

Toro 59257

Engine
(Superseded to 12-8099)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$1.99

$

In Stock, only 2 left!

0

3

Staple

Note: Obtain Locally

$

$

Not available

4

Toro 47-2480

STOP-ROPE

$

$

Not available

5

Toro 57-9870

DECAL

$

$

Not available

6

Toro 81-0041

Gas Tank Assembly
(Superseded to 99-5264)

$

$

Not available

7

Toro 42-0681

Gas Cap Assembly (Incl. Ref. #8)

$42.99

$

Usually ships in 3-6 days

0

8

Toro 20-4620

GAS CAP GASKET

$8.99

$

In Stock, Qty 6

0

9

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

10

Toro 81-0100

FILTER

$9.49

$

In Stock, only 4 left!

0

11

Toro 51-2690

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

12

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 81-0110

AIR CLEANER

$

$

Not available

14

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 14

0

15

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, Qty 5

0

16

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

17

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

18

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, Qty 10

0

19

Toro 81-0140

SPIT BACK DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

20

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

21

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 16

0

22

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

In Stock, Qty 6

0

23

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

24

Toro 26-0670

SCREW-BLADE

$

$

Not available

25

Toro 46-7810

Retainer Blade
(Superseded to 62-7540)

$83.99

$

In Stock, only 1 left!

0

26

Toro 7-0036

KEY-SQUARE

$

$

Not available
